EGR Valve Replacement

  1. Remove the intake manifold cover (see step 1 in IGNITION COIL REMOVAL/INSTALLATION ).
  2. Disconnect the EGR valve 6P connector (A).

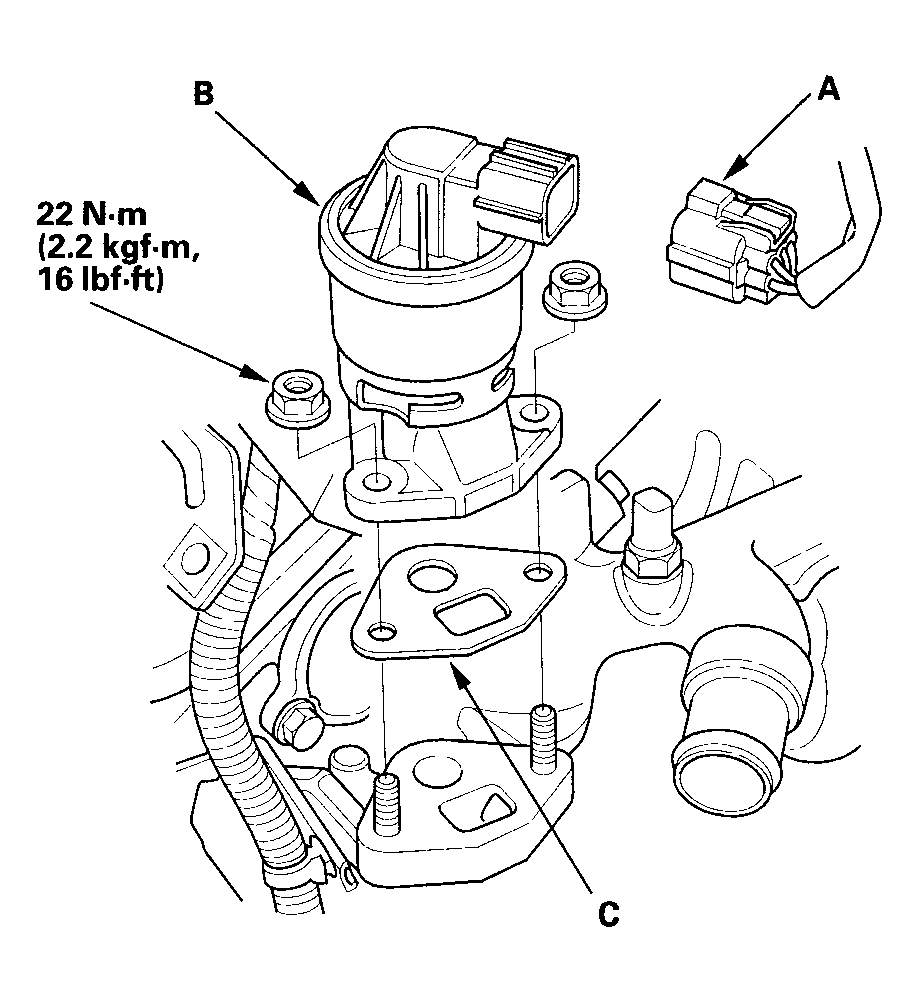

    Fig 1: Disconnecting EGR Valve 6P Connector
    G04546232Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the EGR valve (B).
  4. Install the valve in the reverse order of removal with a new gasket (C).
  5. Install the ignition coil cover.
