Audio Unit Connector Inputs and Outputs (LX model)

When replacing an audio unit connector, match the wires to the cavities listed in the table.

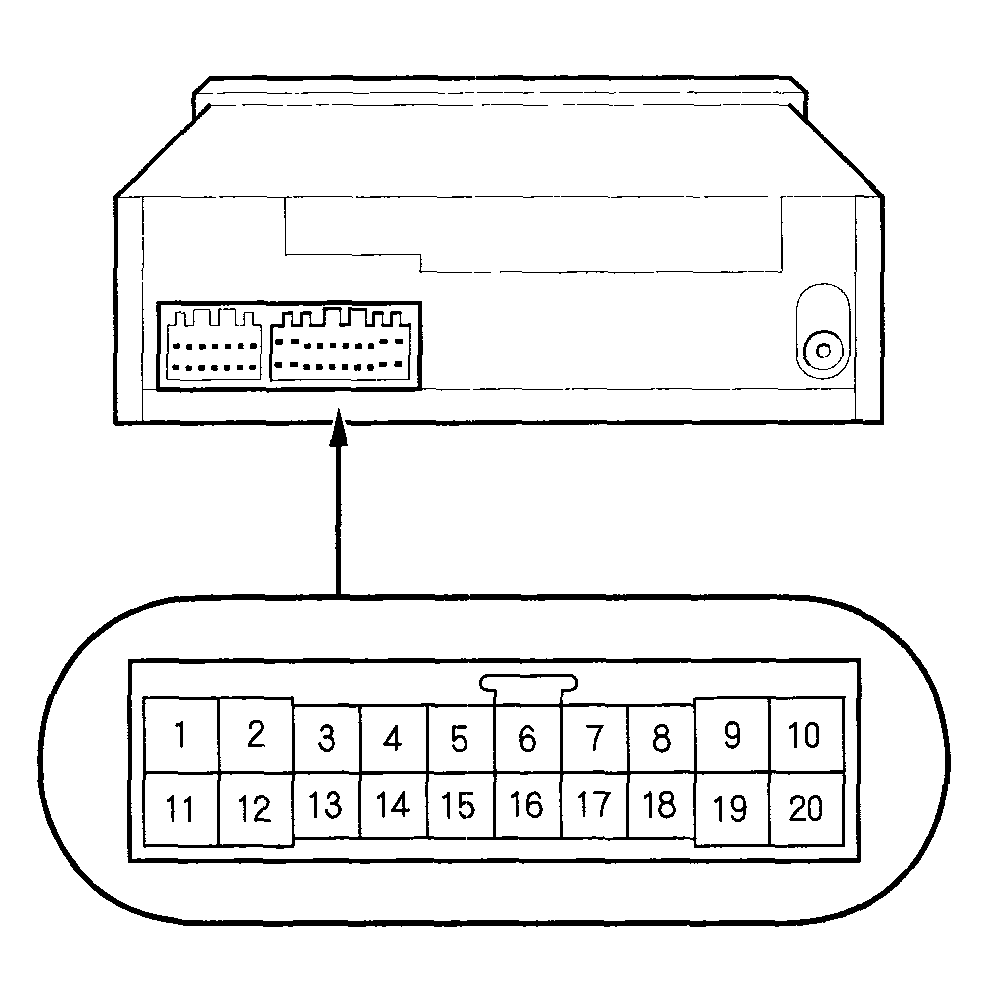

Fig 1: Identifying Audio Unit Connector Terminals (LX Model)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector A

AUDIO UNIT CONNECTOR (A) INPUTS AND OUTPUTS DESCRIPTION (LX MODEL)

Cavity	Wire	Connect to	Cavity	Wire	Connect to
A1	YEL/WHT	Antenna amplifier	A11	-	Not used
A2	WHT/RED	ACC (Main stereo power supply)	A12	-	Not used
A3	-	Not used	A13	-	Not used
A4	-	Not used	A14	-	Not used
A5	RED/YEL	Right rear speaker (+)	A15	BRN/WHT	Right rear speaker (-)
A6	BLU/YEL	Left rear speaker (+)	A16	GRY/WHT	Left rear speaker (-)
A7	RED/GRN	Passenger's door speaker (+)	A17	BRN/BLK	Passenger's door speaker (-)
A8	BLU/GRN	Driver's door speaker (+)	A18	GRY/BLK	Driver's door speaker (-)
A9	RED/BLK	Lights-on signal	A19	RED	Dash lights brightness controller
A10	WHT	Constant power	A20	BLK	Ground (G504)
