ATF Feed Pipe Replacement

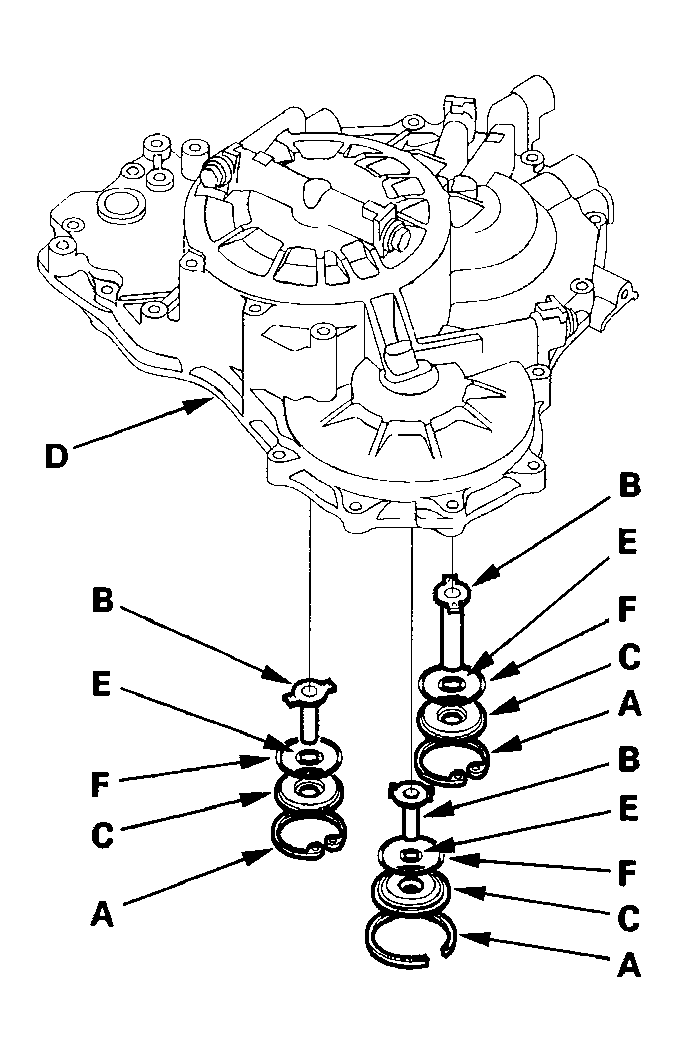

- Remove the snap rings (A), ATF feed pipes (B), and feed pipe flanges (C) from the end cover (D).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Install the new O-ring (E) over the ATF feed pipe.
- Install ATF feed pipe in the end cover by aligning the feed pipe tabs with the indentations in the end cover.
- Install the new O-ring (F) in the end cover, then install the feed pipe flange over the ATF feed pipe and O-rings.
- Secure the ATF feed pipe and feed pipe flange with the snap ring.
