Transfer Drive Gear Bearing Replacement

Special Tools Required

• Driver 07749-0010000
• Driver attachment 07947-6340500
• Attachment, 62 x 68 mm 07746-0010500
• Attachment, 45 x 55 mm 07MAD-PR90100

1. Remove the tapered roller bearing (A) from the transfer drive gear (B) with the special tools, bearing separator (C) and a press.

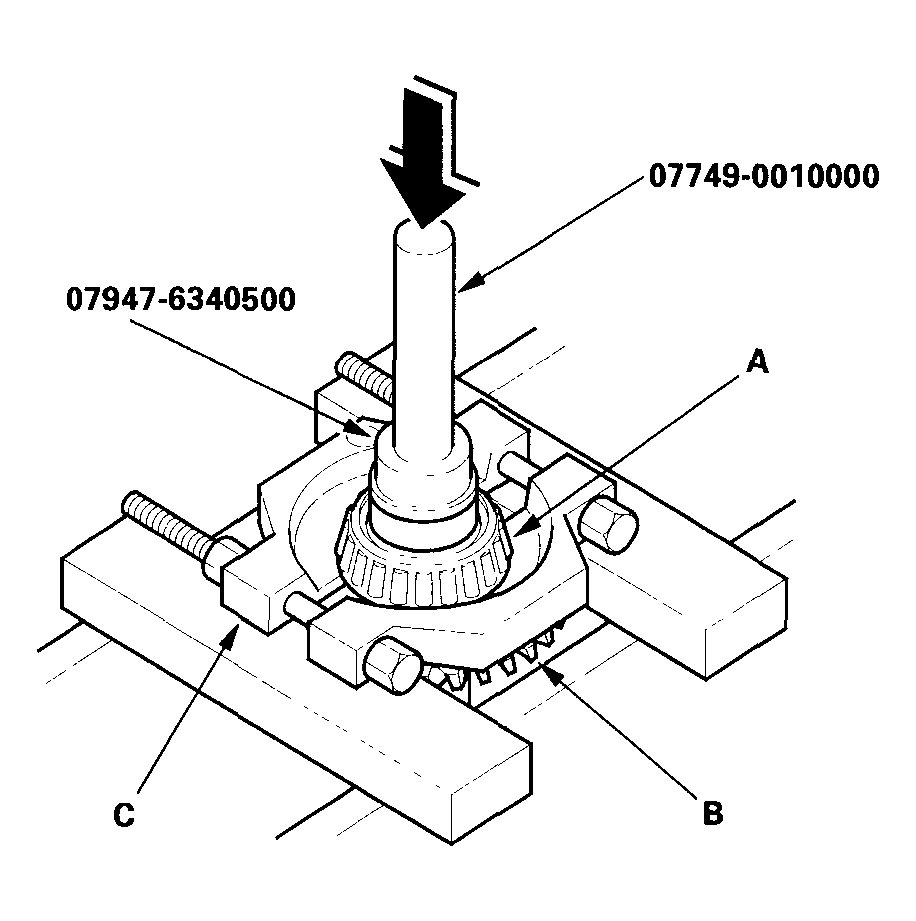

   Fig 1: Removing Tapered Roller Bearing (A) From Transfer Drive Gear (B)

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
2. Install the new tapered roller bearing (A) on the transfer drive gear (B) with the special tools and a press.

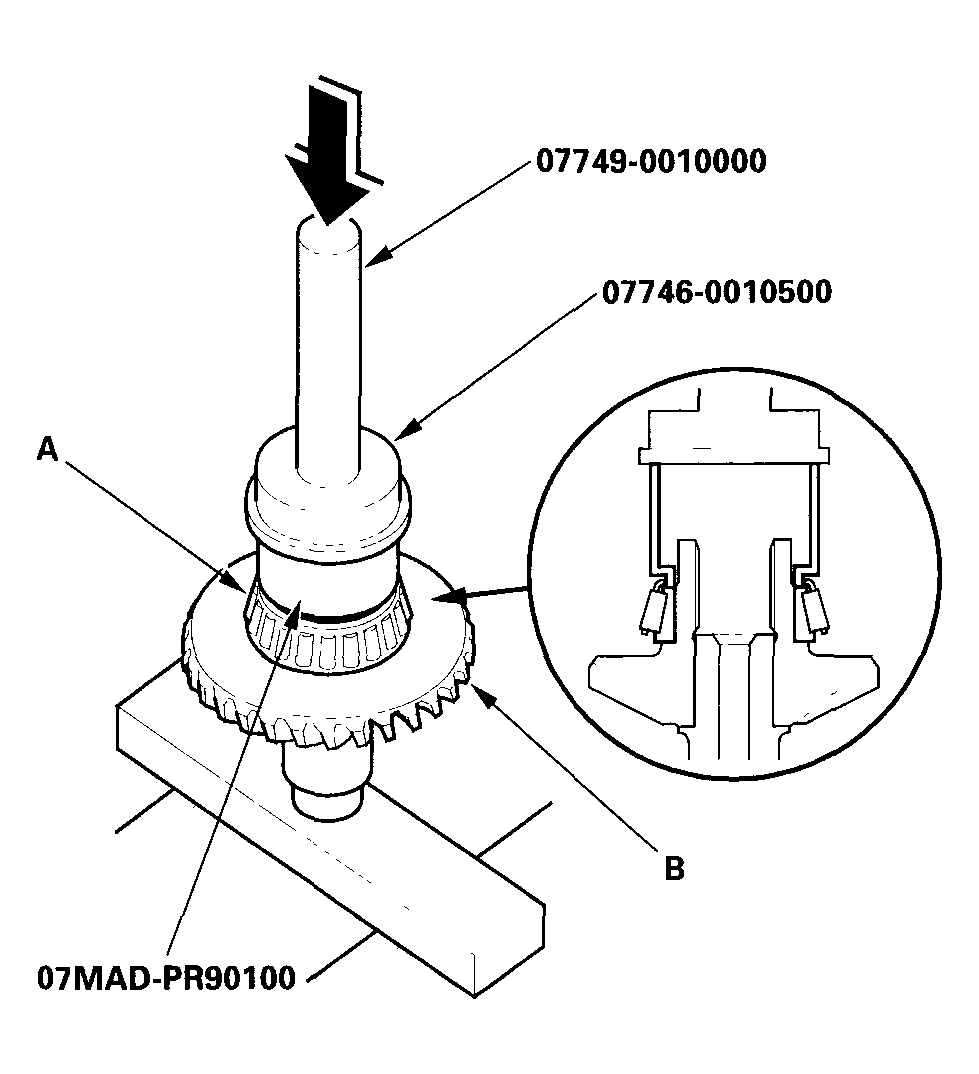

   Fig 2: Installing Tapered Roller Bearing (A) On Transfer Drive Gear (B)

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
