Countershaft Bearing Replacement

Special Tools Required

• Adjustable bearing puller, 25-40 mm 07736-A01000B or 07736-A01000A
• Driver 07749-0010000
• Attachment, 62 x 68 mm 07746-0010500

1. Remove the countershaft bearing (A) with the special tool and a commercially available 3/8"-16" slide hammer (B).
   Fig 1: Removing Countershaft Bearing With Special Tool

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
2. Install the ATF guide plate (A).
   Fig 2: Installing ATF Guide Plate (A)

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

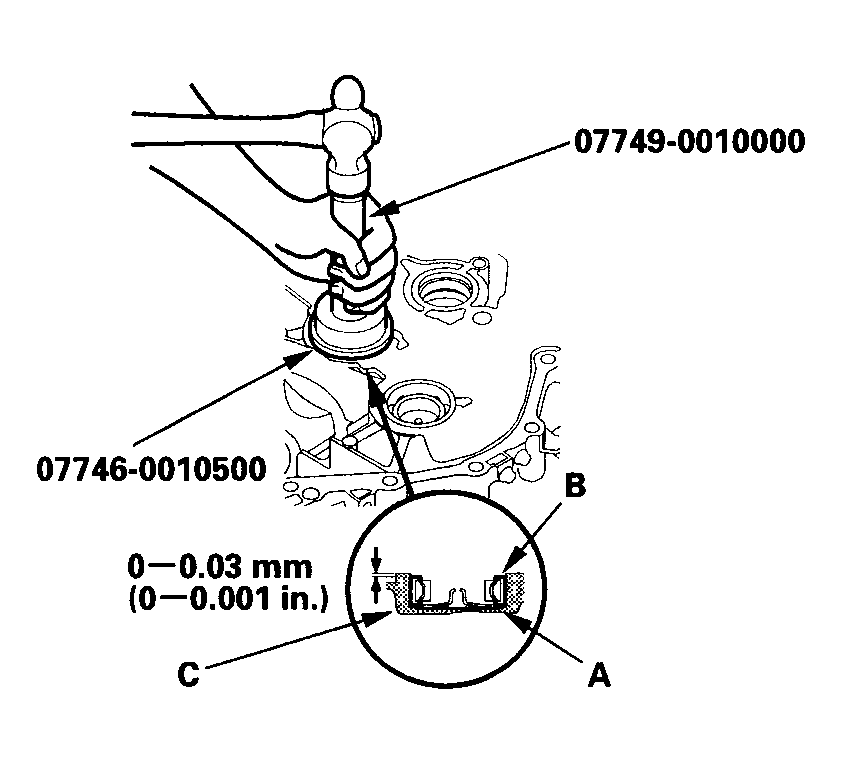

3. Install the new bearing (B) into the housing (C) with the special tools.
