Automatic Transmission
>>
Automatic Transmission
>>
System Description
>>
Clutches
>>
Transmission Sectional View
Transmission Sectional View

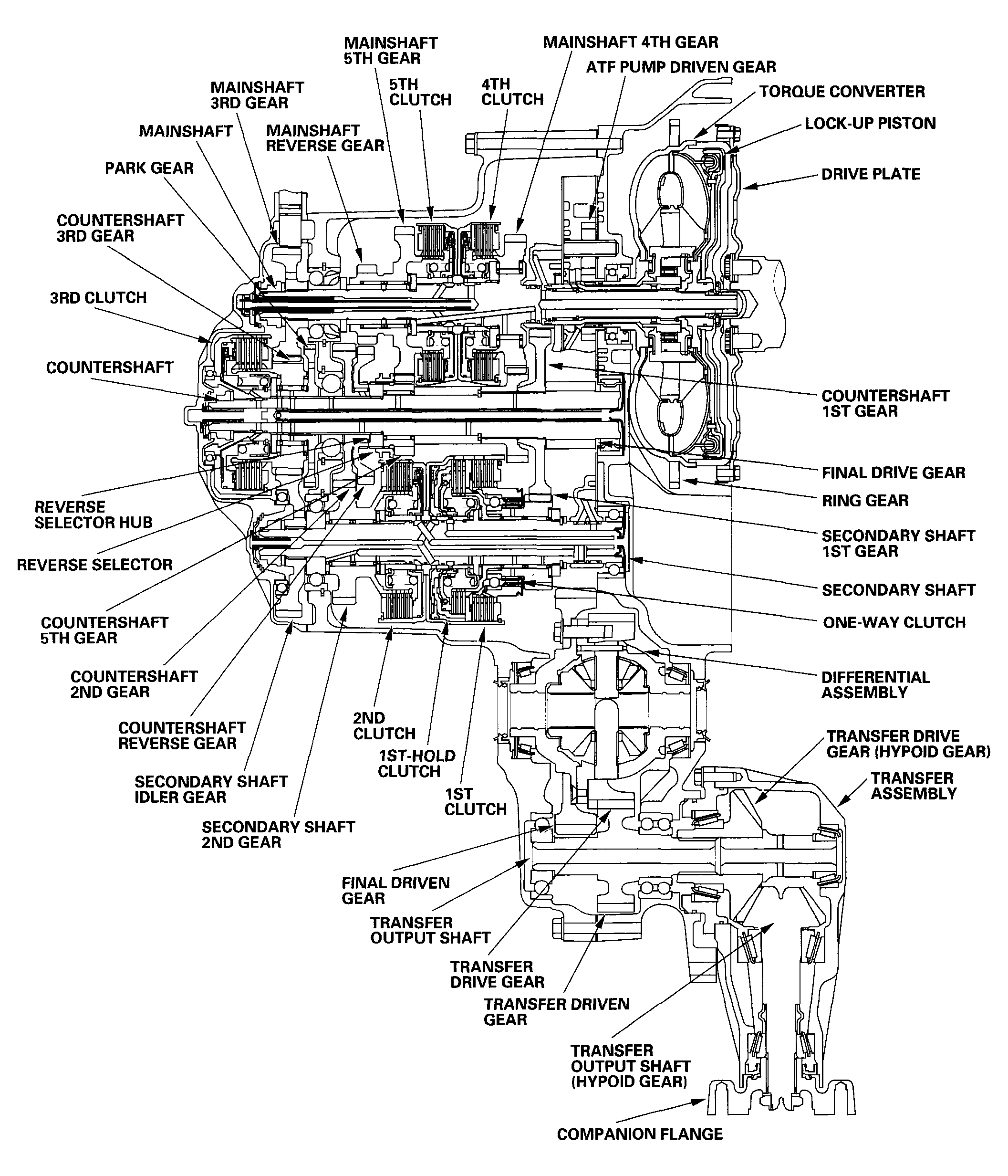

Fig 1: Identifying Transmission Sectional View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
