Circuit Diagram

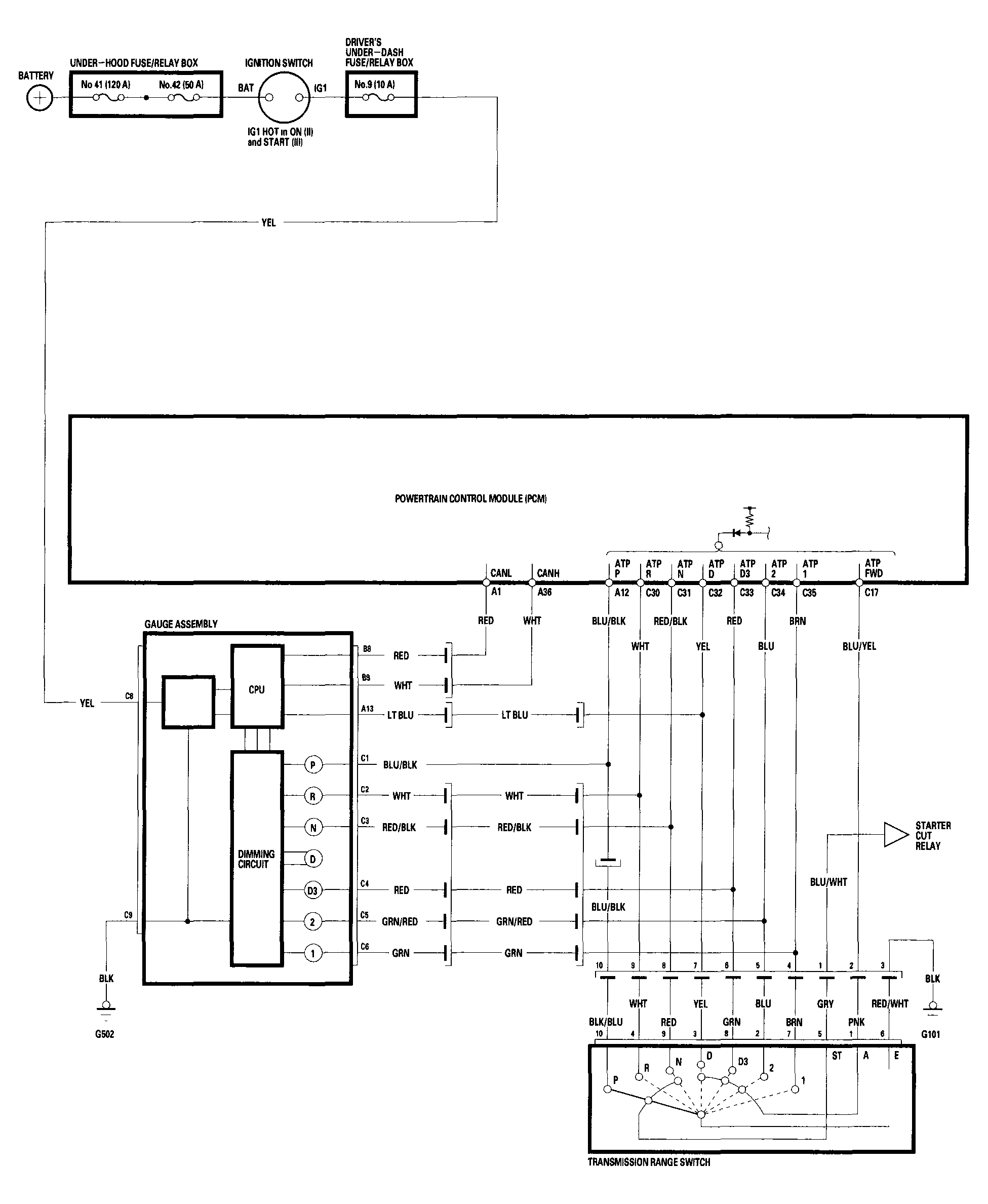

Fig 1: A/T Gear Circuit Diagram

G04546592

Courtesy of AMERICAN HONDA MOTOR CO., INC.
