Carrier Bearing Replacement

Special Tools Required

Attachment, 45 x 55 mm 07MAD-PR90100

NOTE:

The bearing and outer race should be replaced as a set.
Inspect and adjust the bearing preload whenever the bearing is replaced.
Check the bearing for wear and rough rotation. If the bearing is OK, removal is not necessary.

Remove the carrier bearing (A) with a commercially available bearing puller (B), bearing separator (C), and stepped adapter (D).

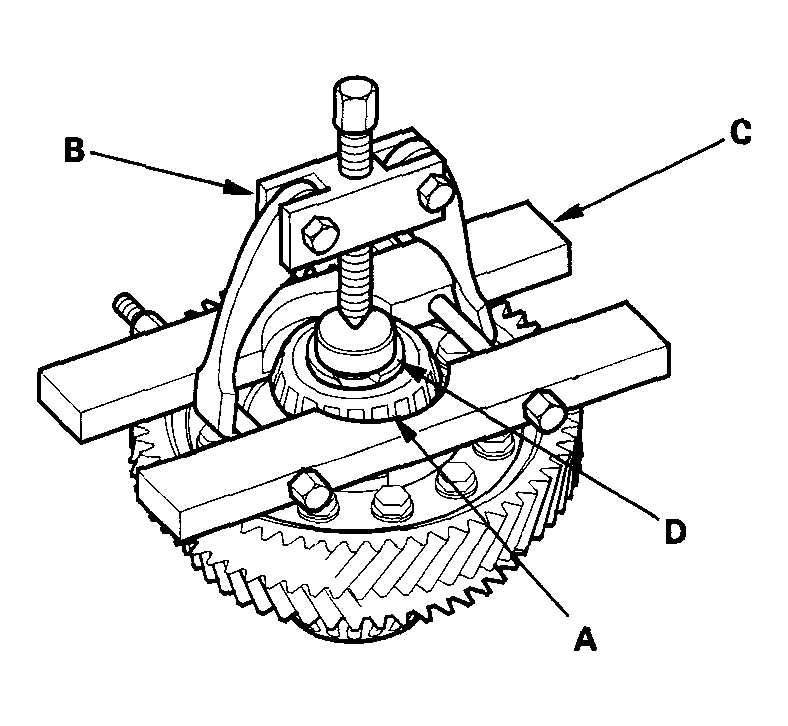

Fig 1: Removing Carrier Bearing (A) With Bearing Puller (B), Bearing Separator (C), And Stepped Adapter (D)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the new carrier bearings with the special tool and a press.
NOTE:
- Press the bearing on until it bottoms.
- Use the small end of the special tool to install the bearing.
- Press the bearing on securely so there is no clearance between the bearing and the differential carrier.

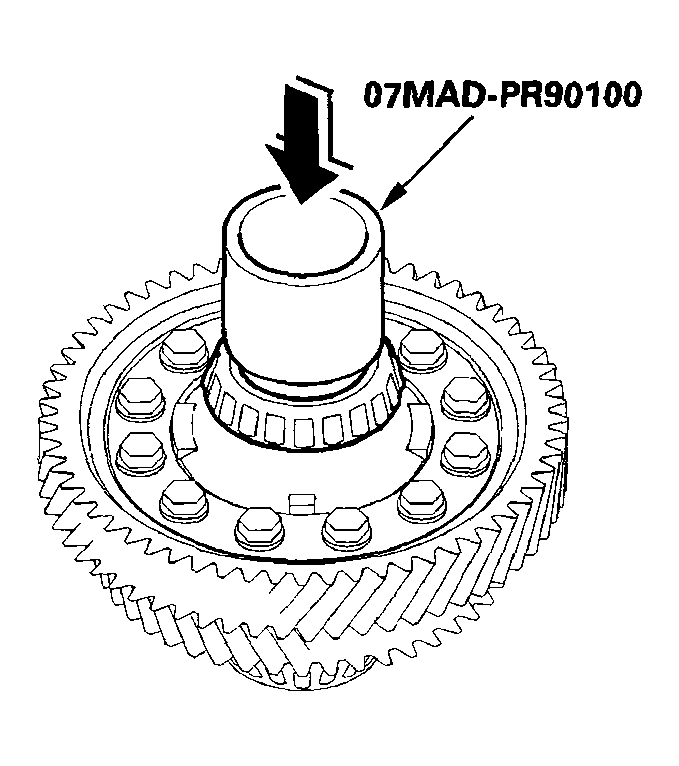

  Fig 2: Installing Carrier Bearings With Special Tool
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
