Camshaft Position (CMP) Sensor

The CMP sensor input is used by the PCM to determines ignition timing at start up (cranking) and when crank angle is abnormal.

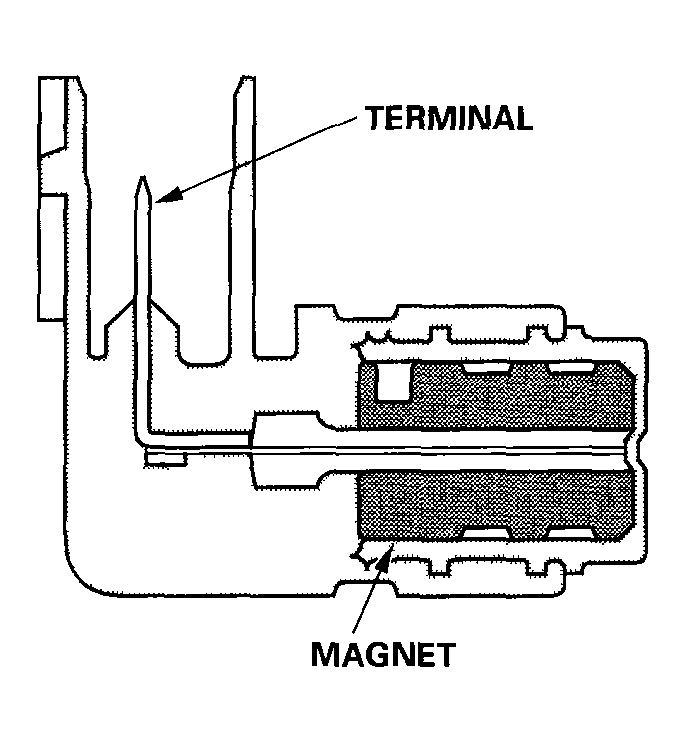

Fig 1: Identifying Camshaft Position Sensor
G04545851Courtesy of AMERICAN HONDA MOTOR CO., INC.
