DTC P2118: Throttle Actuator Current Range/Performance Problem
- Jump the SCS line with the HDS.
- Disconnect PCM connector C (44P).

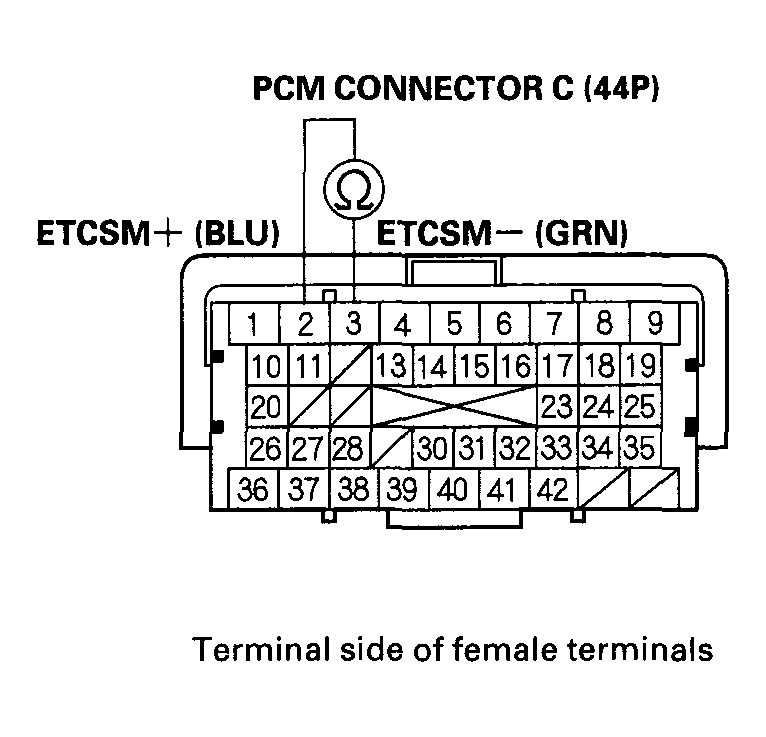

- Measure resistance between PCM connector terminals C2 and C3.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Is there about 1.0 Ω or less?
YES - Go to step 4.
NO - Go to step 16.
- Disconnect the throttle body 6P connector.

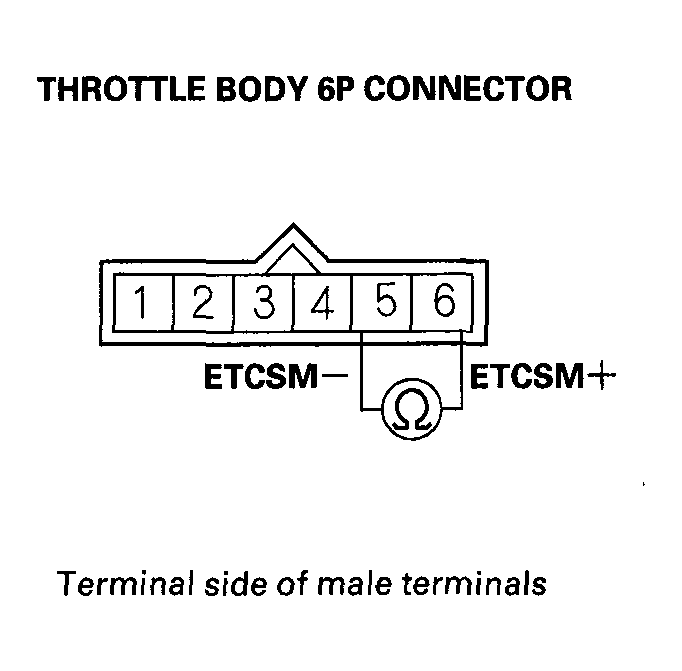

- At the throttle body side, measure resistance between throttle body 6P connector terminals No. 5 and No. 6 with the throttle fully closed.Fig 2: Measuring Resistance Between Throttle Body 6P Connector Terminals No. 5 And No. 6 With Throttle Fully Closed
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Is there about 1.0 Ω or less?
YES - Go to step 6.
NO - Repair short in the wires between the throttle body and PCM (C2, C3), then go to step 7.
- Replace the throttle body (see THROTTLE BODY REMOVAL/INSTALLATION ).
- Reconnect the throttle body 6P connector.
- Reconnect PCM connector C (44P).
- Turn the ignition switch ON (II).
- Reset the PCM with the HDS.
- Do the PCM idle learn procedure (see PCM IDLE LEARN PROCEDURE ).
- Turn the ignition switch OFF.
- Turn the ignition switch ON (II).
- Slowly press the accelerator pedal to the floor.
- Check for Temporary DTCs or DTCs with the HDS.
Are any Temporary DTCs or DTCs indicated?
YES - If DTC P2118 is indicated, check for poor connections or loose terminals at the throttle body and the PCM, then go to step 1. If any other Temporary DTCs or DTCs are indicated, go to the indicated DTC'S TROUBLESHOOTING .
NO - Troubleshooting is complete.
- Update the PCM if it does not have the latest software, or substitute a known-good PCM (see PCM UPDATING AND SUBSTITUTION FOR TESTING ).
- Check for Temporary DTCs or DTCs with the HDS.
Are any Temporary DTCs or DTCs indicated?
YES - If DTC P2118 is indicated, check for poor connections or loose terminals at the throttle body and the PCM, then go to step 1. If any other Temporary DTCs or DTCs are indicated, go to the indicated DTC'S TROUBLESHOOTING .
NO - If the PCM was updated, troubleshooting is complete. If the PCM was substituted, replace the original PCM (see PCM REPLACEMENT ).
