Air Cleaner Removal/Installation

  1. Remove the bolts (A).

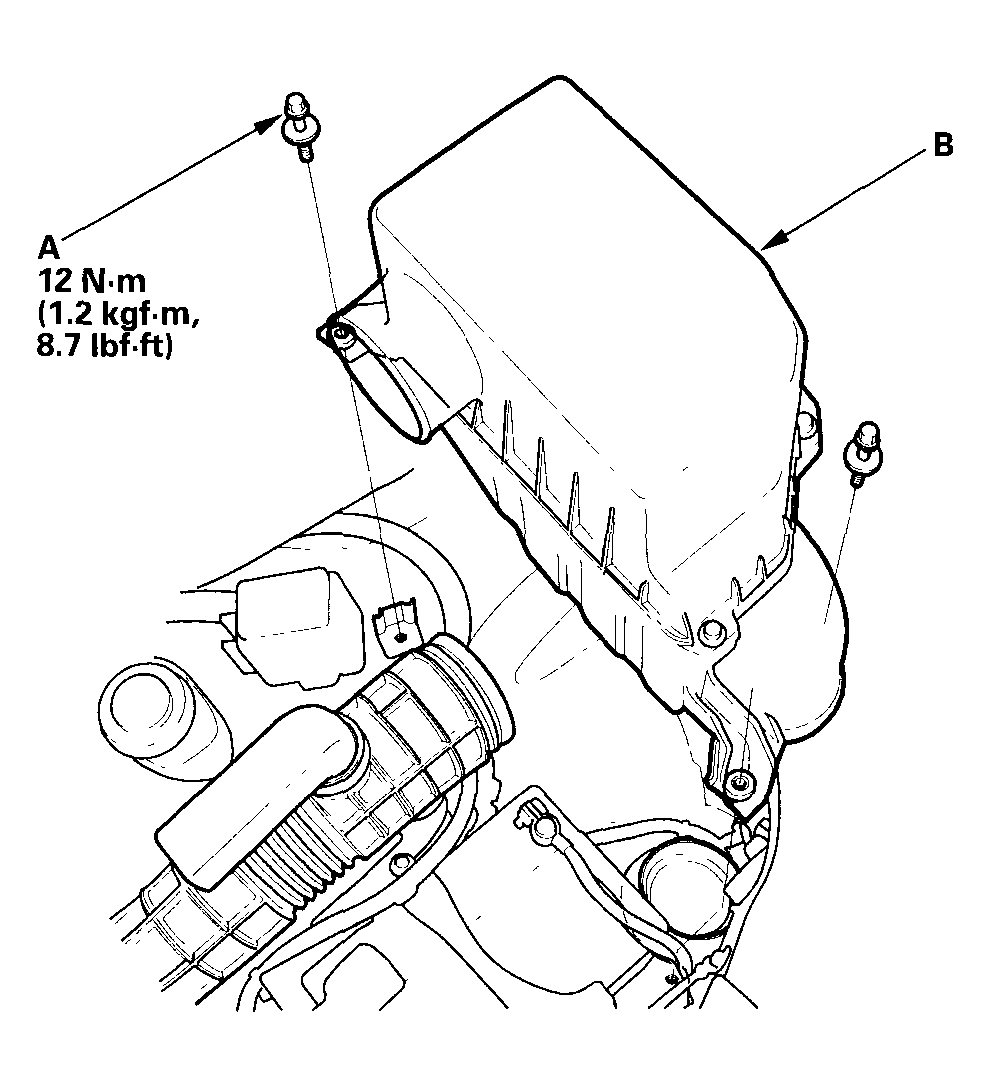

    Fig 1: Removing Bolts
    G04546201Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the air cleaner (B).
  3. Install the parts in the reverse order of removal.
