Air Cleaner Element Inspection/Replacement

NOTE: Do not clean the air cleaner element by blowing if off with compressed air.
  1. Remove the air cleaner housing screws (A) and the cover (B).

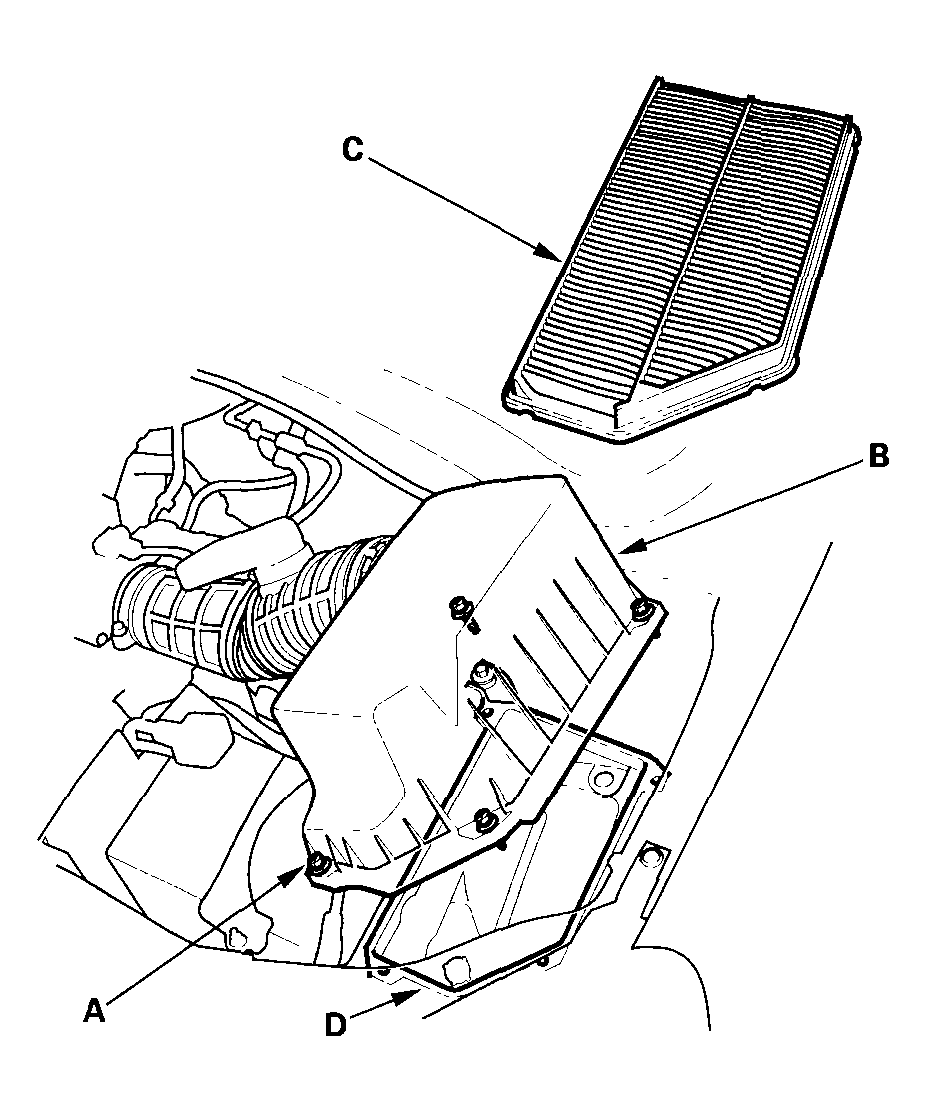

    Fig 1: Removing Air Cleaner Housing Screws And Cover
    G04546202Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the air cleaner element (C) from the air cleaner housing (D).
  3. Check the air cleaner element for clogging. If it is clogged, replace the air cleaner element.
  4. Clean and remove any debris from inside the air cleaner housing.
  5. Install the parts in the reverse order of removal.
