Exploded View: Removal

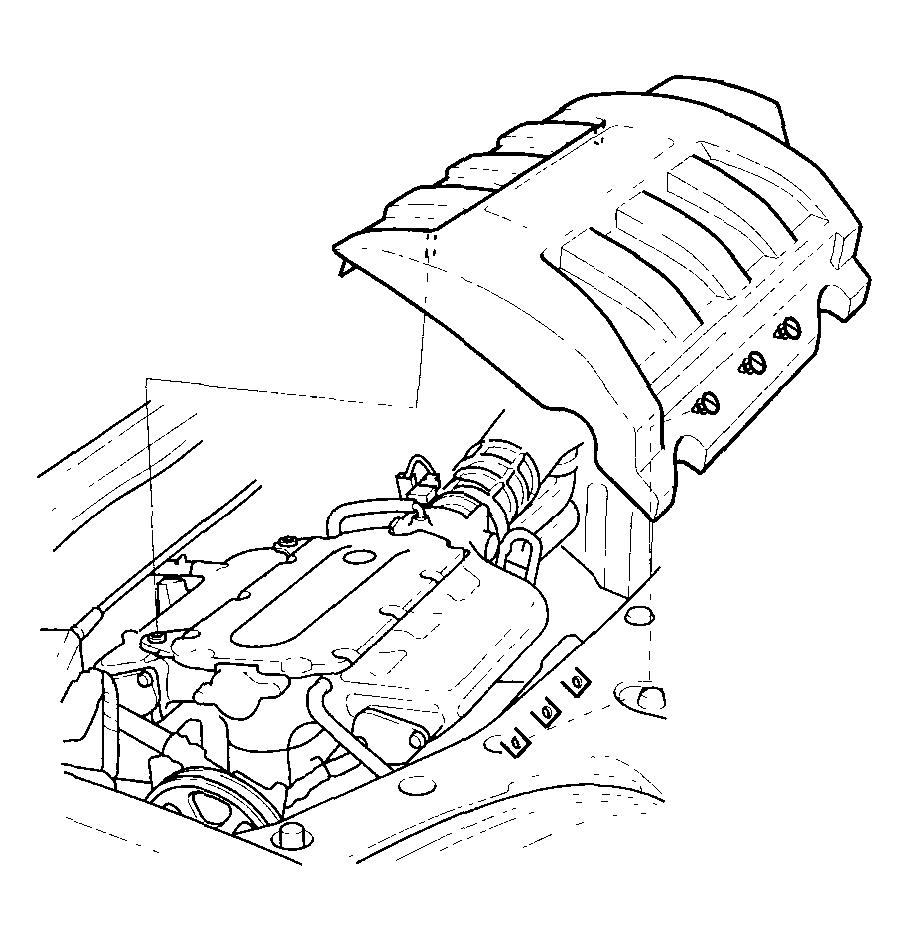

Remove the intake manifold cover.

Fig 1: Removing Intake Manifold Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.

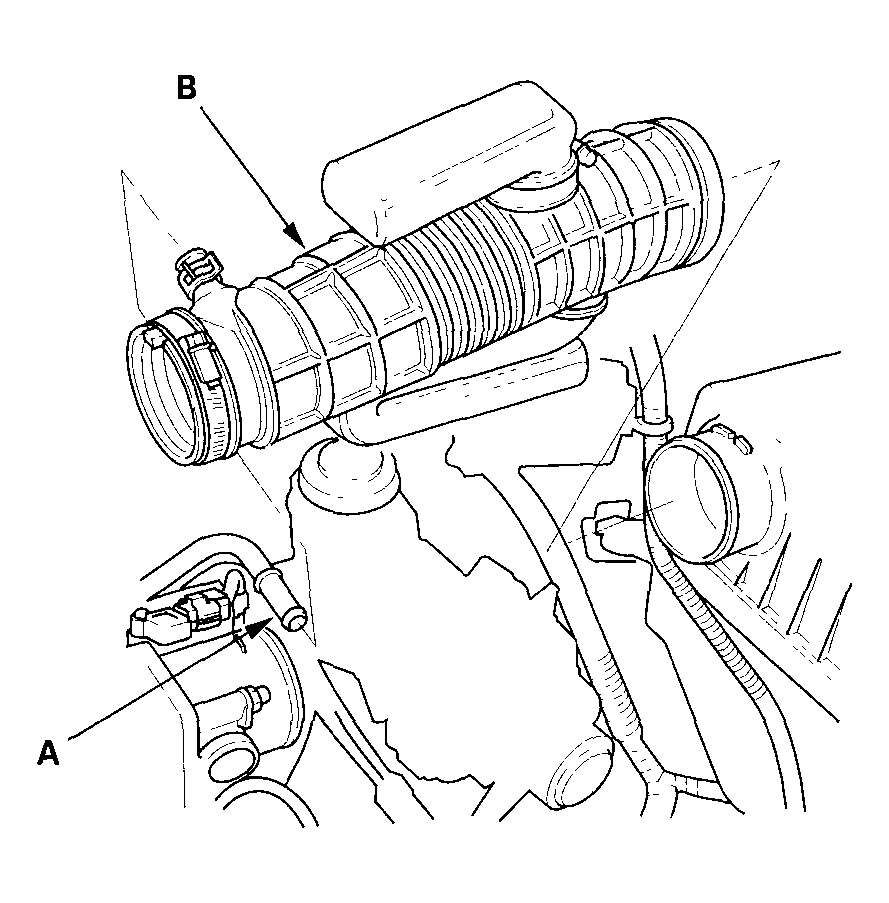

Disconnect the breather pipe (A), then remove the intake air duct (B).

Fig 2: Removing Breather Pipe And Intake Air Duct
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the positive crankcase ventilation (PCV) hose (A), brake booster vacuum hose (B).

Fig 3: Removing Positive Crankcase Ventilation Hose And Brake Booster Vacuum Hose
Courtesy of AMERICAN HONDA MOTOR CO., INC.

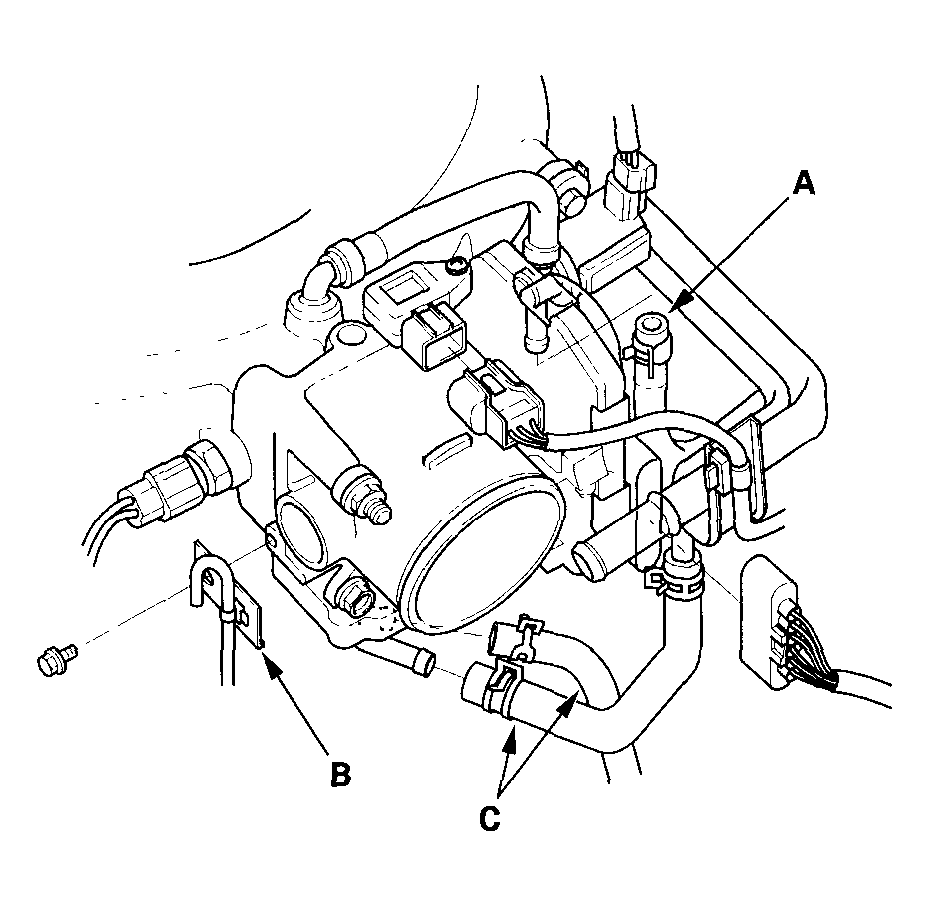

Remove the evaporative emission (EVAP) canister hose (A) and the transmission breather hose clamp bracket (B).

Fig 4: Removing Evaporative Emission Canister Hose And Transmission Breather Hose Clamp Bracket
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove and plug the water bypass hoses (C).
Remove the engine wire harness connectors and wire harness clamps from the intake manifold.
- Intake air temperature (IAT) sensor connector
- Throttle actuator connector
- Manifold absolute pressure (MAP) sensor connector
- Evaporative emission (EVAP) canister purge valve connector

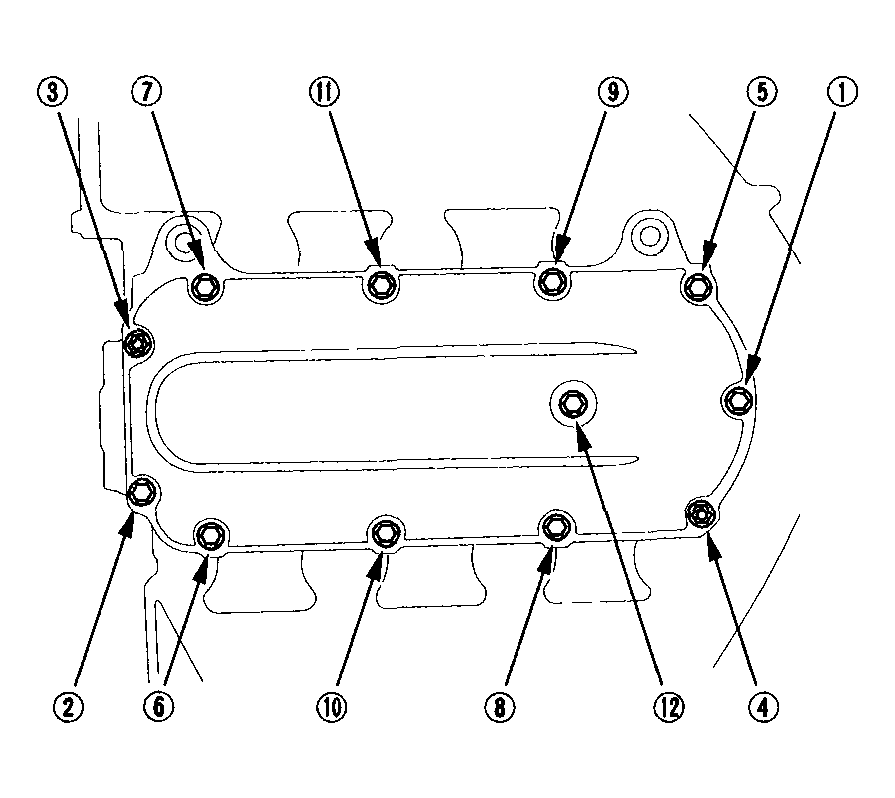

Remove the upper cover mounting bolts and nuts sequentially in two or three steps, then remove the upper cover.

Fig 5: Identifying Upper Cover Mounting Bolts Removal Sequence
Courtesy of AMERICAN HONDA MOTOR CO., INC.

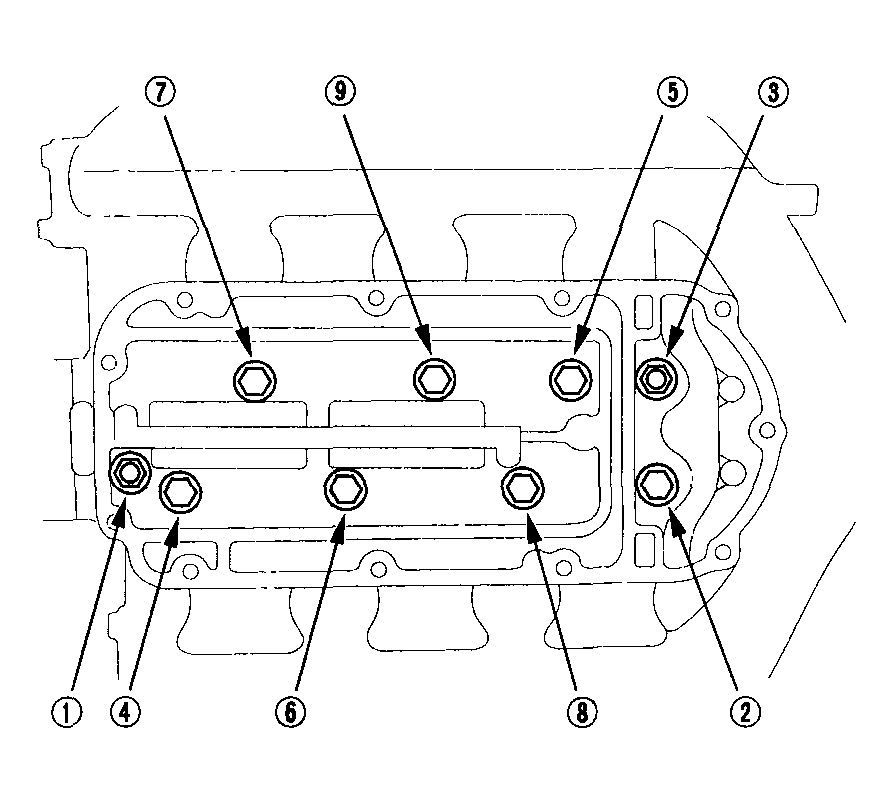

Remove the intake manifold mounting bolts and nuts sequentially in two or three steps, then remove the intake manifold and spacer.

Fig 6: Identifying Intake Manifold Mounting Bolts Removal Sequence
Courtesy of AMERICAN HONDA MOTOR CO., INC.
