Driver's Switch Panel Removal/Installation

Special Tools Required

KTC trim tool set SOJATP2014

NOTE:

Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.
Take care not to scratch the dashboard and related parts.

Remove the driver's switch panel (A).
- -1 Using a flat-tip screwdriver, pry out the bottom portion of the panel to detach the clips.
- -2 Pull out the panel to release the upper hooks (B), then remove the panel.
- -3 Disconnect the cruise control main switch connector (C), and interior lights switch connector (D) and moonroof switch connector (E).

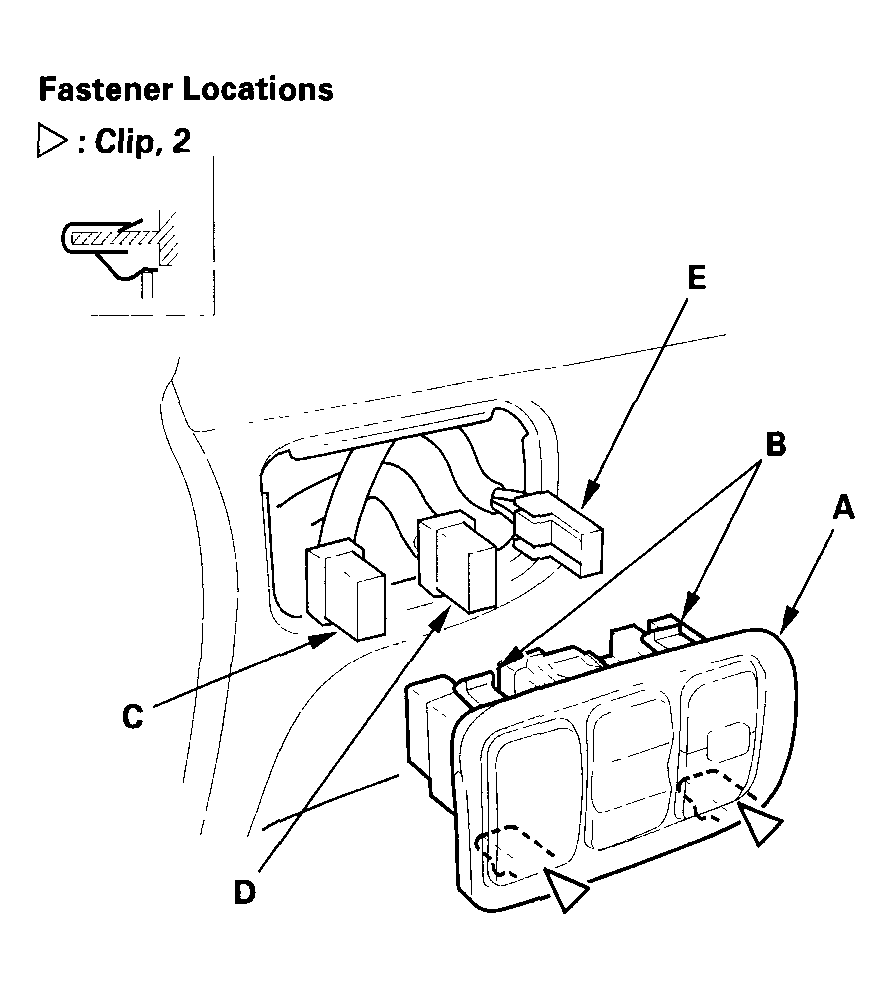

  Fig 1: Removing Driver's Switch Panel (A)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the panel in the reverse order of removal, and note these items:
- Make sure each connector is plugged in properly.
- Replace any damaged clips.
- Push the clips and hooks into place securely.
