Pilot EX
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
Accessory Power Sockets
>>
Circuit Diagram
Circuit Diagram

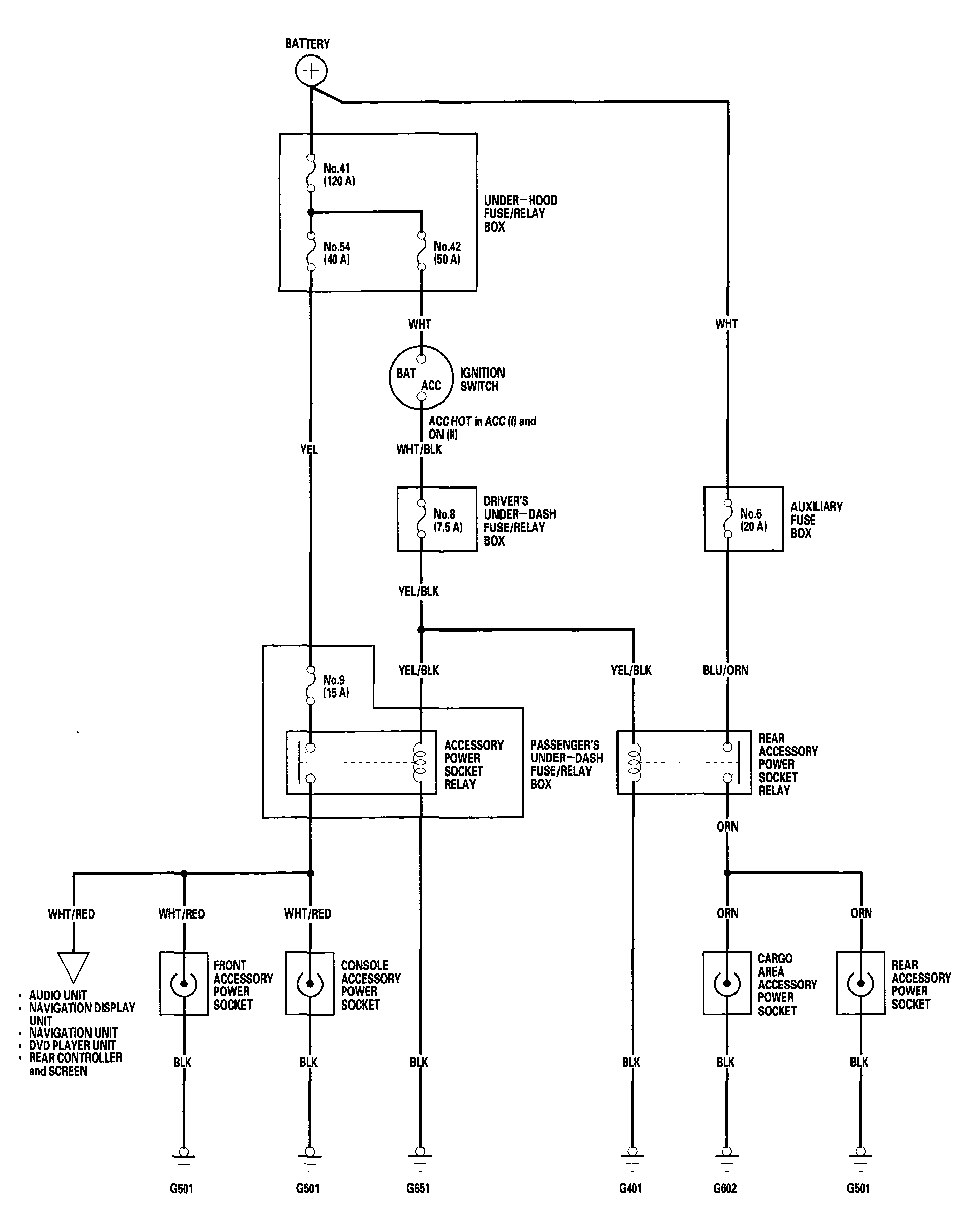

Fig 1: Accessory Power Sockets Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
