Wheel Sensor Replacement
NOTE:
Install the sensors carefully to avoid twisting the wires.
Front:

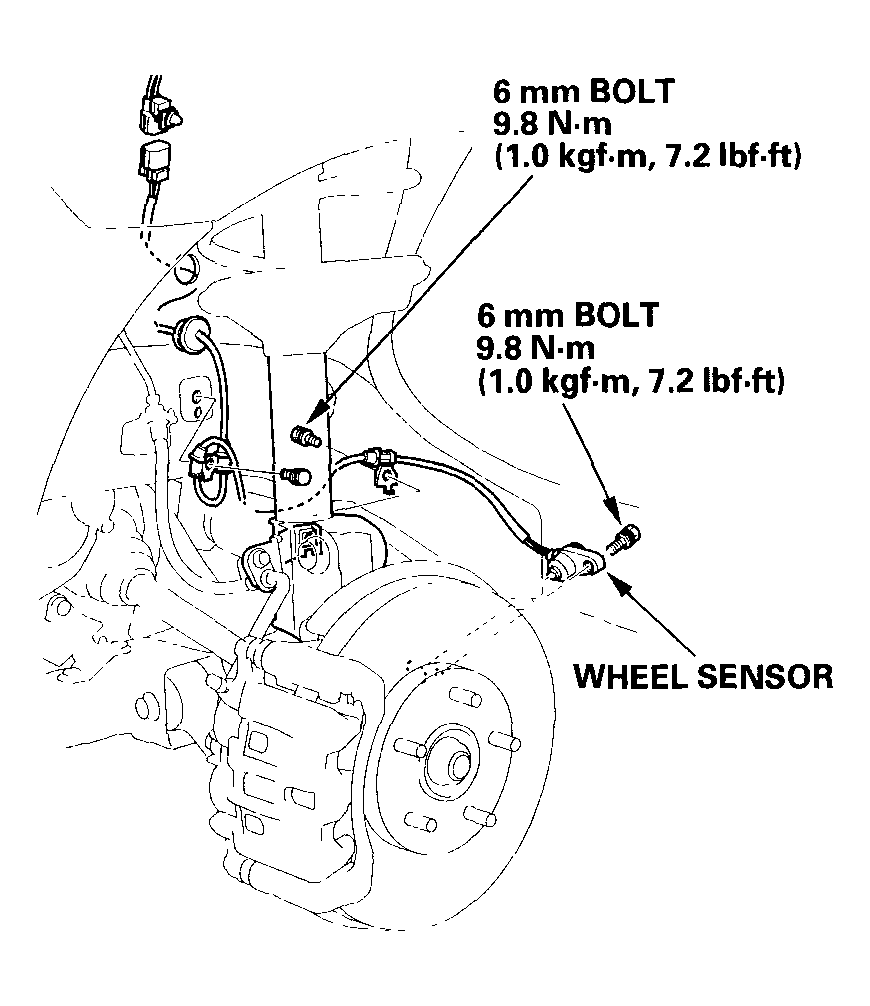

Fig 1: Installing Front Sensors
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Rear:

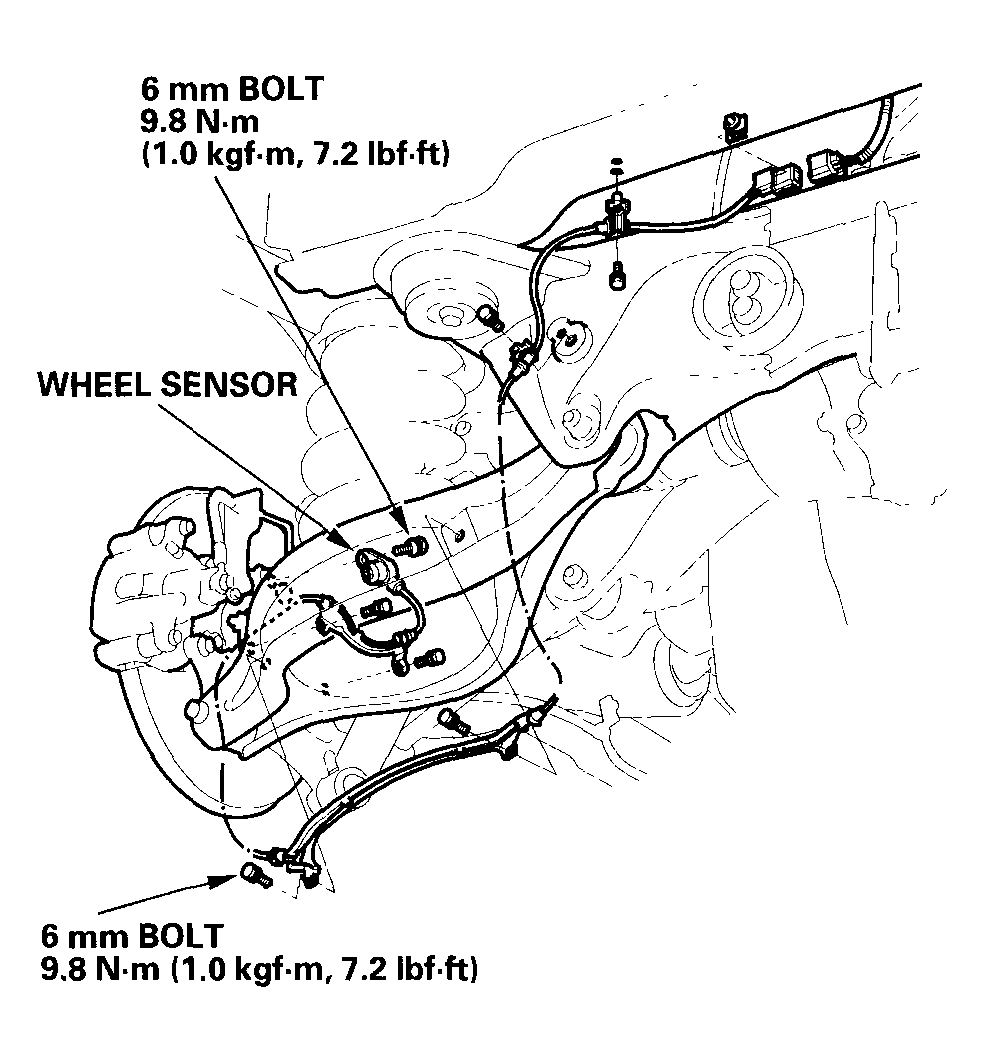

Fig 2: Installing Rear Sensors
Courtesy of AMERICAN HONDA MOTOR CO., INC.
