VSA (Vehicle Stability Assist System Components)
>>
Circuit Diagram
Circuit Diagram

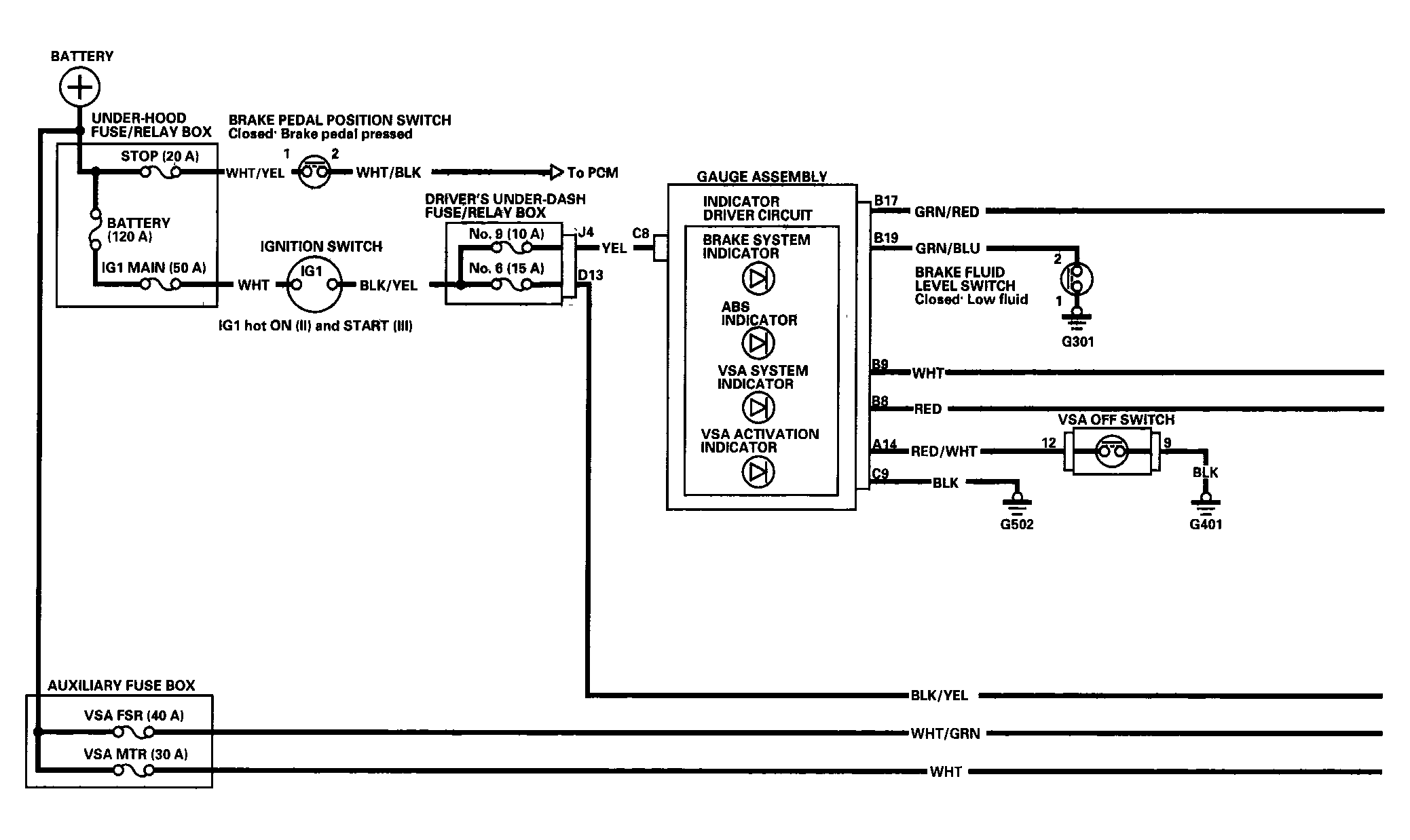

Fig 1: Circuit Diagram - VSA System Components (1 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

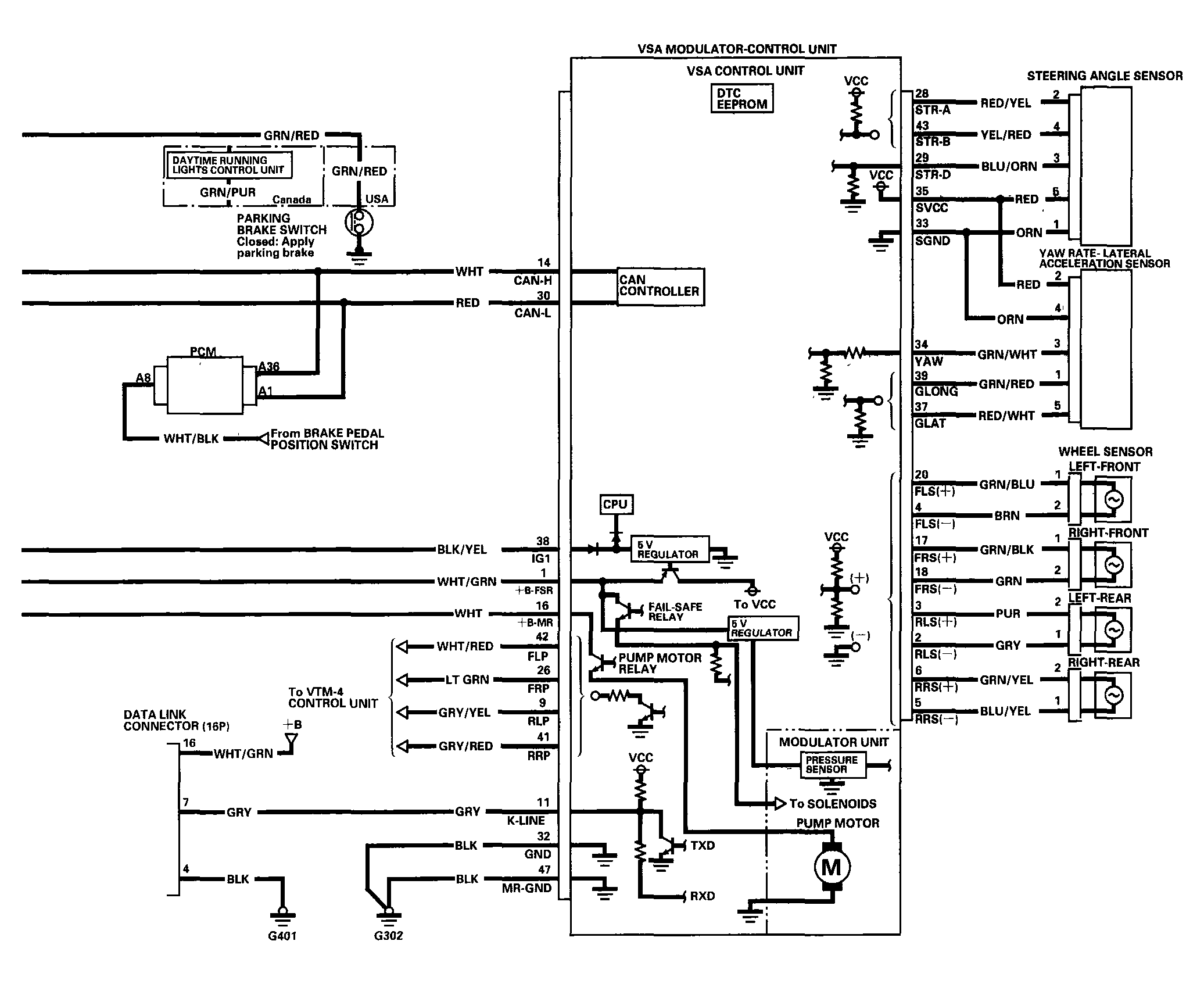

Fig 2: Circuit Diagram - VSA System Components (2 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

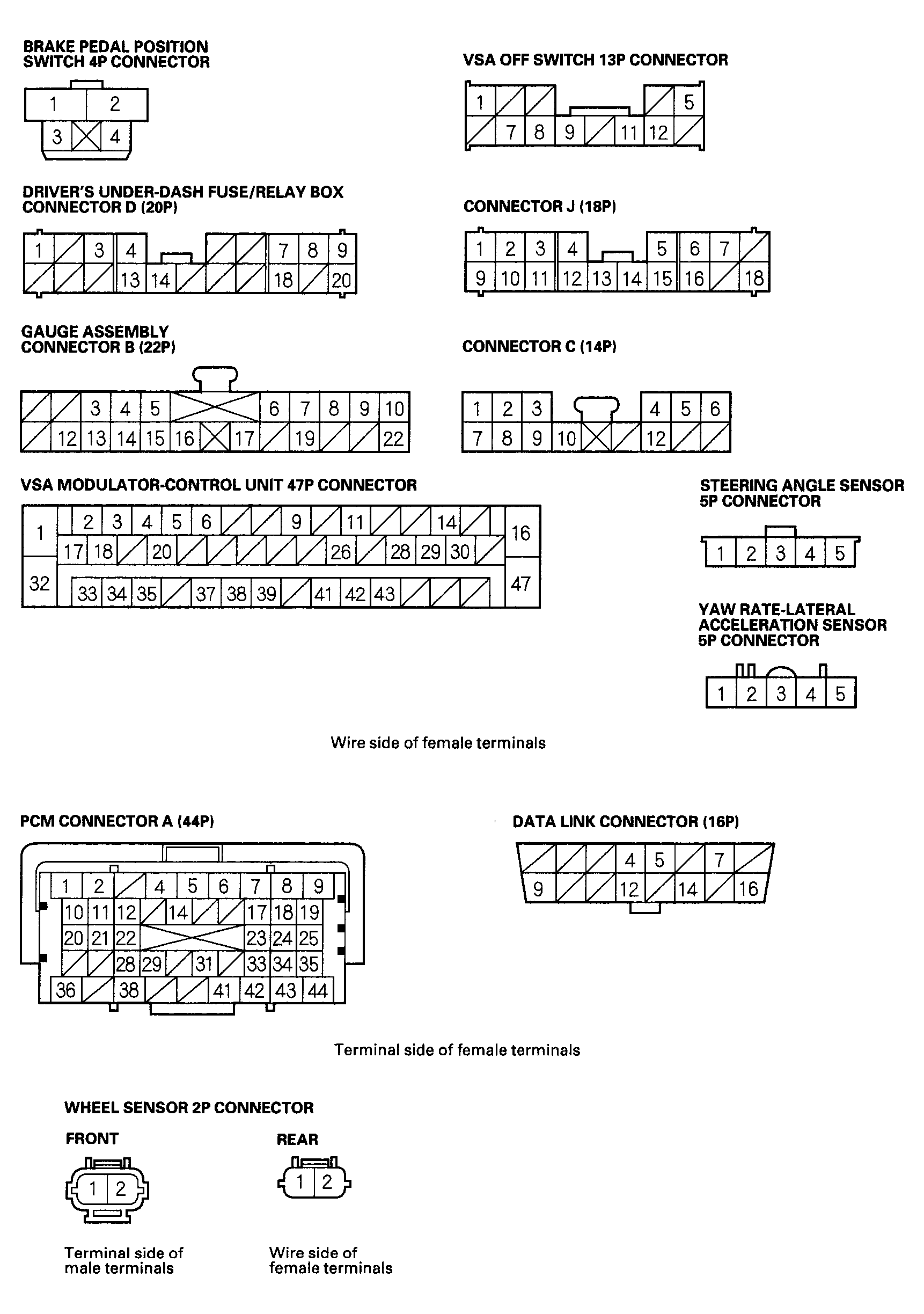

Fig 3: Circuit Diagram - VSA System Components (3 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
