Tailgate Lock Cylinder Replacement

NOTE: Put on gloves to protect your hands.

Remove the tailgate trim panel (see TRIM REMOVAL/INSTALLATION - TAILGATE AREA ).
Disconnect the cylinder rod (A) and lock cylinder switch connector (B) (if applicable), then detach the lock cylinder switch connector from the tailgate.

Fig 1: Disconnecting Cylinder Rod
Courtesy of AMERICAN HONDA MOTOR CO., INC.

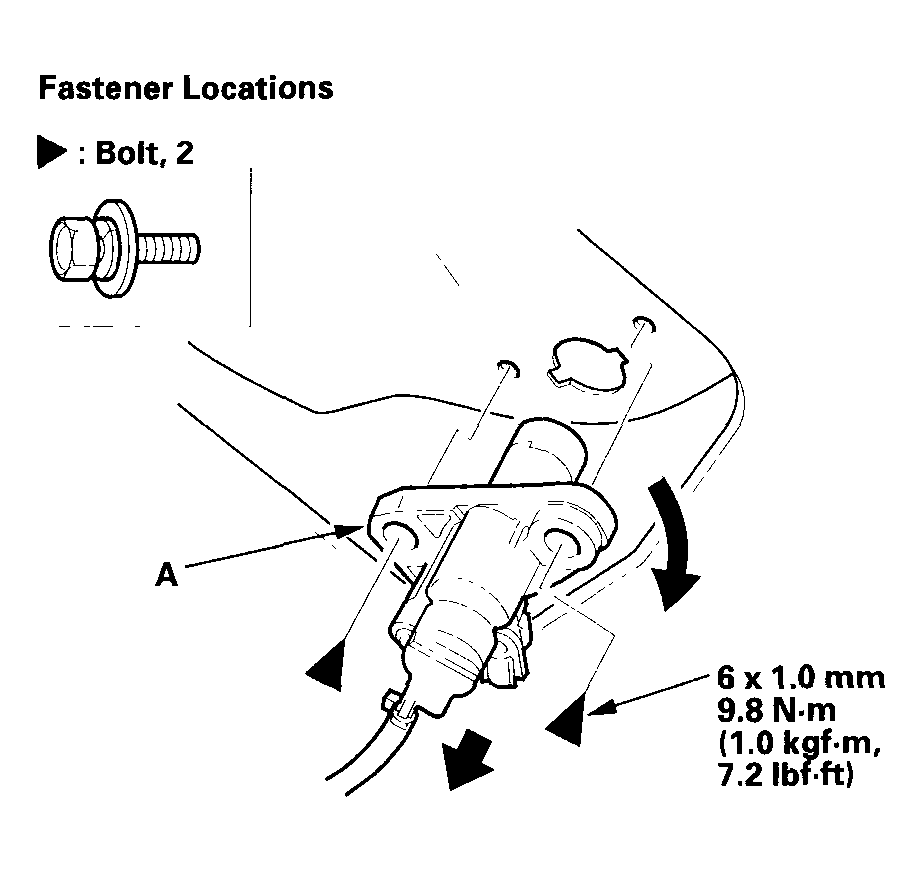

Remove the bolt securing the lock cylinder (A). Then turn the tailgate lock cylinder 45°, and remove it.

Fig 2: Removing Tailgate Lock Cylinder
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the lock cylinder in the reverse order of removal, and note these items:
- Make sure the connector is plugged in properly.
- Make sure the tailgate opens properly and locks securely.
- For some models, make sure the security system operates properly.
