Tailgate Latch Replacement

NOTE: Put on gloves to protect your hands.

Remove the tailgate trim panel (see TRIM REMOVAL/INSTALLATION - TAILGATE AREA ).
Disconnect the handle cable (A), cylinder rod (B), tailgate latch actuator connector (C), and tailgate latch switch connector (D), and detach the connector.

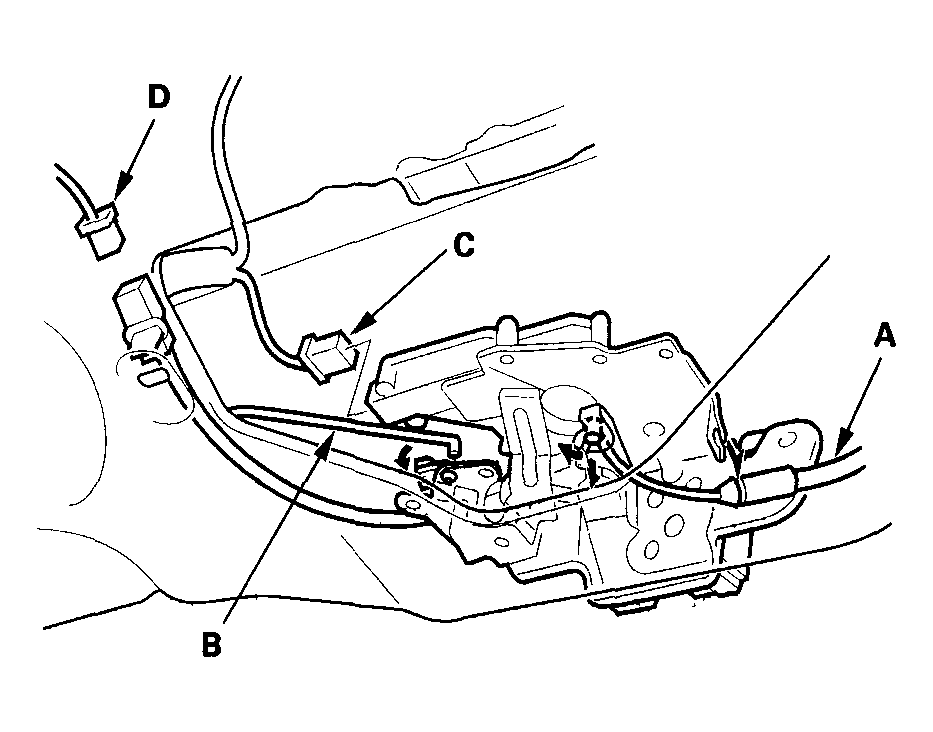

Fig 1: Locating Handle Cable, Cylinder Rod, Tailgate Latch Actuator And Tailgate Latch Switch Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the bolts, then remove the tailgate latch (A).

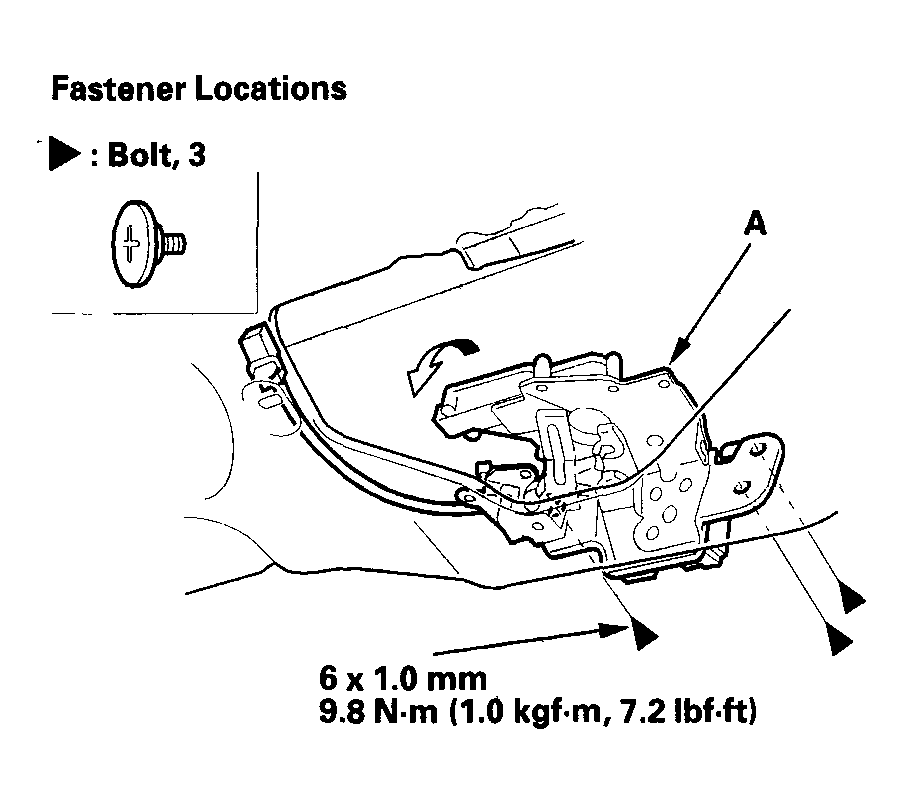

Fig 2: Removing Tailgate Latch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the tailgate latch in the reverse order of removal, and note these items:
- Make sure the connectors are plugged in properly and the handle cable is connected properly.
- Make sure the cable actuates the latch before you close the tailgate.
- Make sure the tailgate opens properly and locks securely.
- For some models, make sure the security system operates properly with the tailgate opened and closed.
