Tailgate Handle Replacement

NOTE: Put on gloves to protect your hands.

Remove the tailgate trim panel (see TRIM REMOVAL/INSTALLATION - TAILGATE AREA ).
Remove the nuts, then remove the tailgate handle.

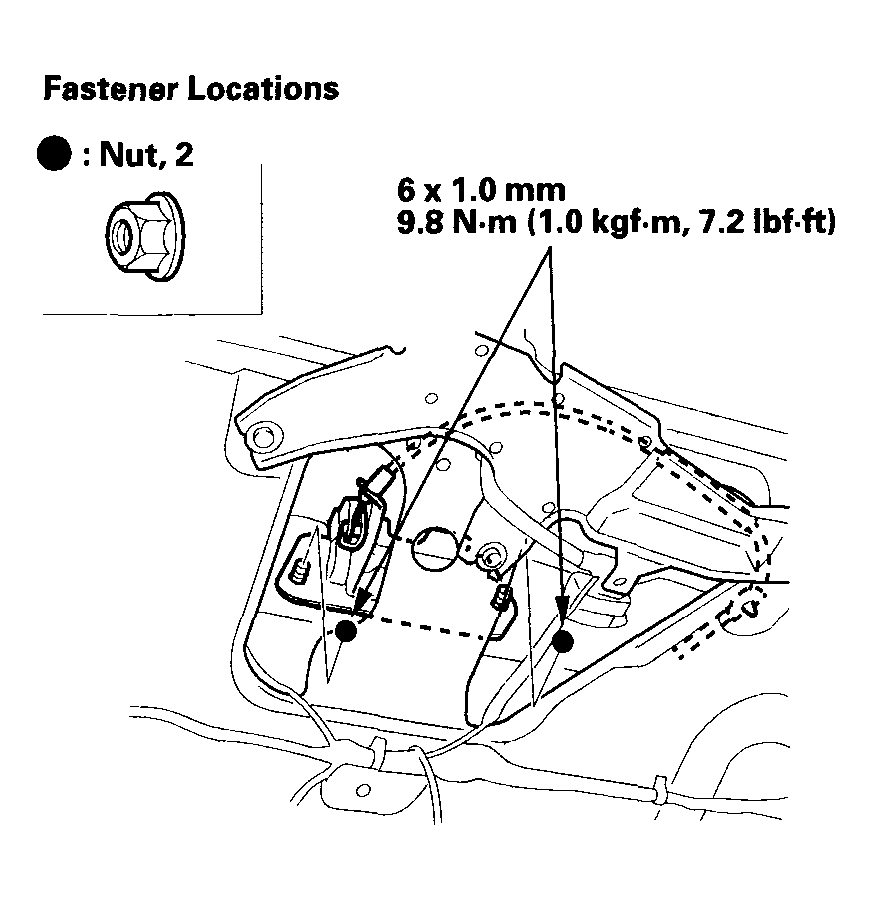

Fig 1: Removing Nuts From Tailgate Handle
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the handle cable (A) from the tailgate handle (B).

Fig 2: Disconnecting Handle Cable From Tailgate Handle
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the tailgate handle in the reverse order of removal, and note these items:
- Make sure the handle cable is connected securely.
- Make sure the tailgate opens properly.
