Component Location Index

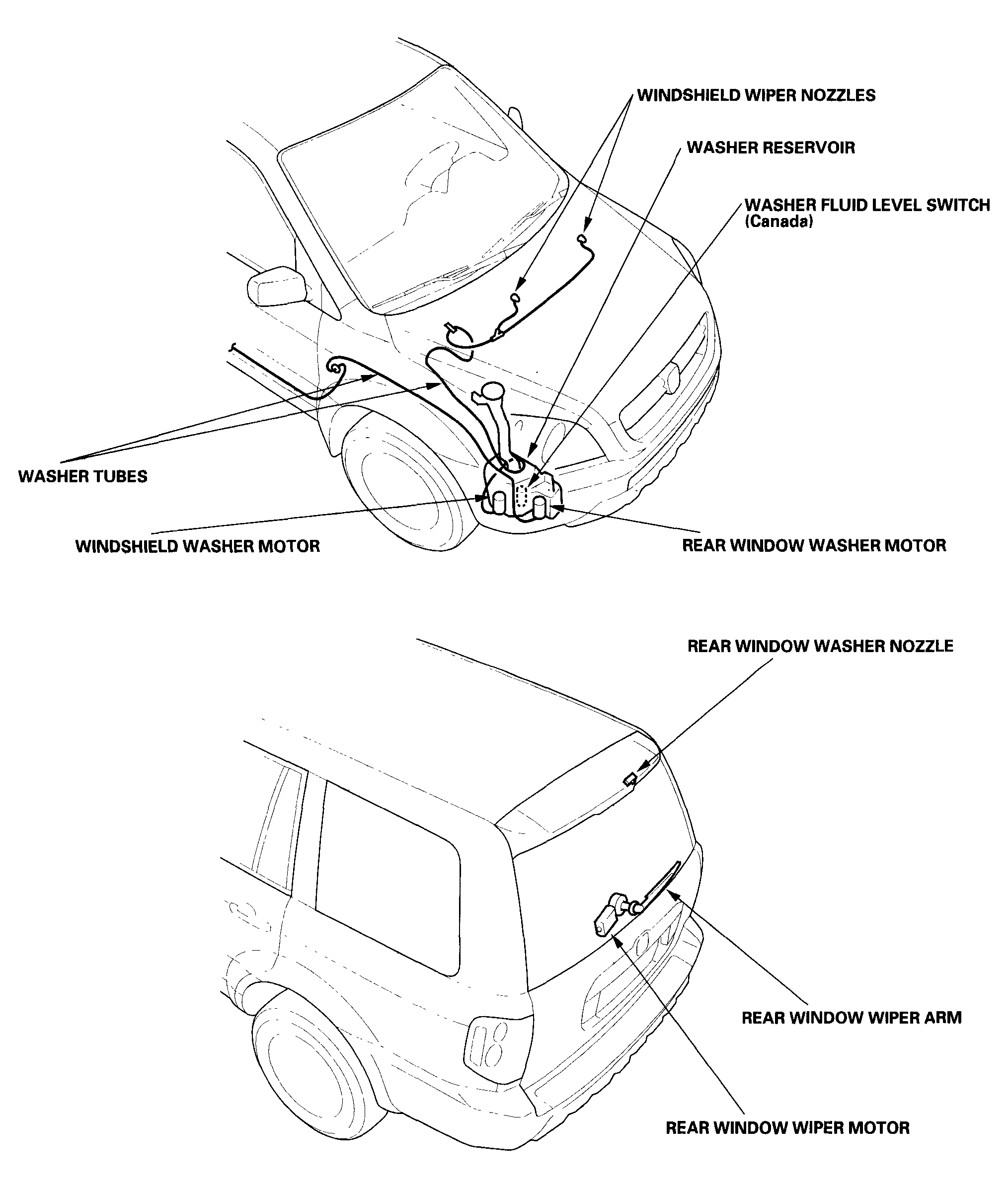

Fig 1: Identifying Wipers/Washers Component Location

Courtesy of AMERICAN HONDA MOTOR CO., INC.

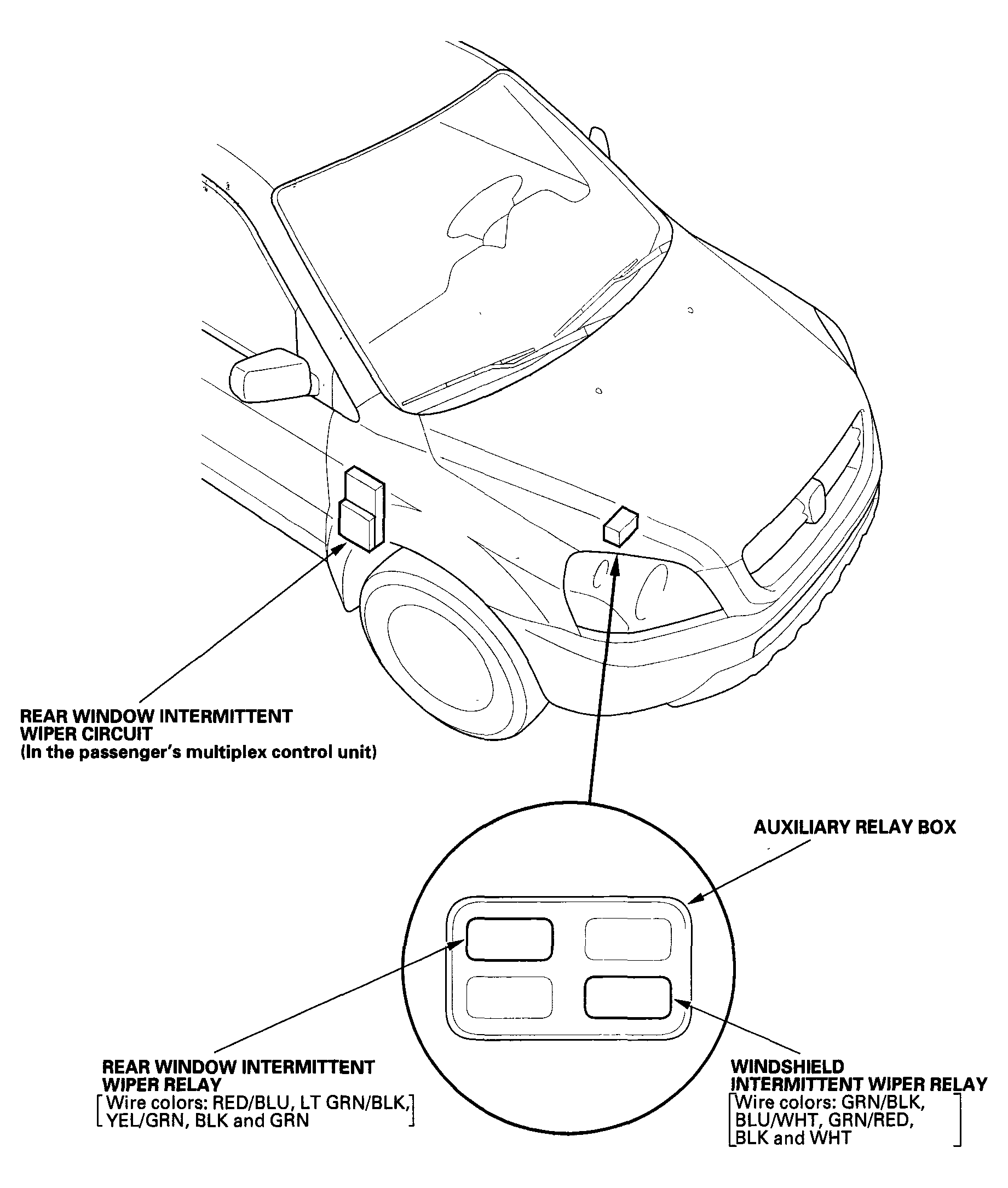

Fig 2: Identifying Auxiliary Relay Box

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 3: Identifying Windshield Wiper Nozzles

Courtesy of AMERICAN HONDA MOTOR CO., INC.
