Noise Condenser Capacity Test

Remove the right side trim panel (see TRIM REMOVAL/INSTALLATION - REAR SIDE AREA ).
Disconnect the 2P connector (A) from the noise condenser (B).
Use a commercially available condenser tester. Connect the condenser tester probes and measure the condenser capacity.
No. 1 and No. 2 terminal capacity: 0.47 microfarads

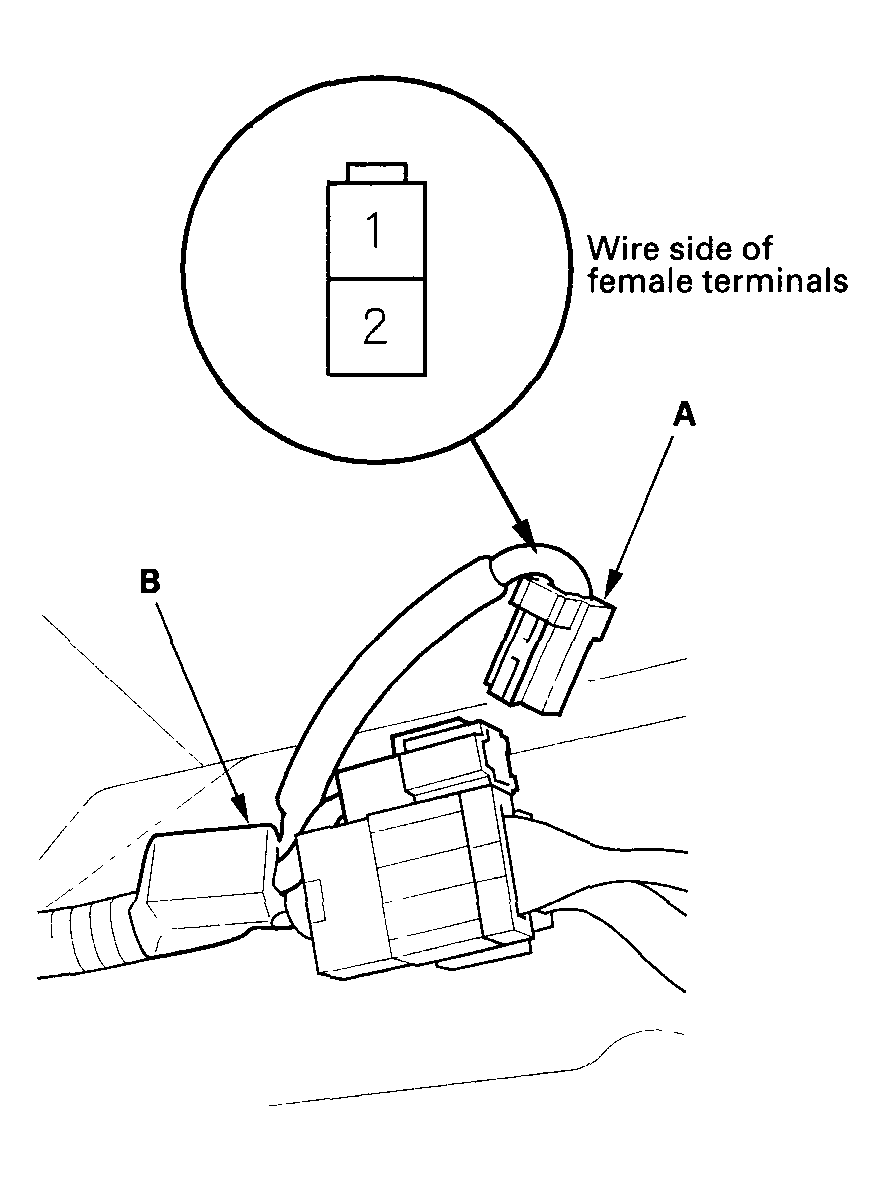

Fig 1: Disconnecting 2P Connector From Noise Condenser
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If not within the specifications, replace the noise condenser.
