Defogger Wire Repair

NOTE: To make an effective repair, the broken section must be no longer than 1 inch.

Lightly rub the area around the broken section (A) with fine steel wool, then clean it with isopropyl alcohol.

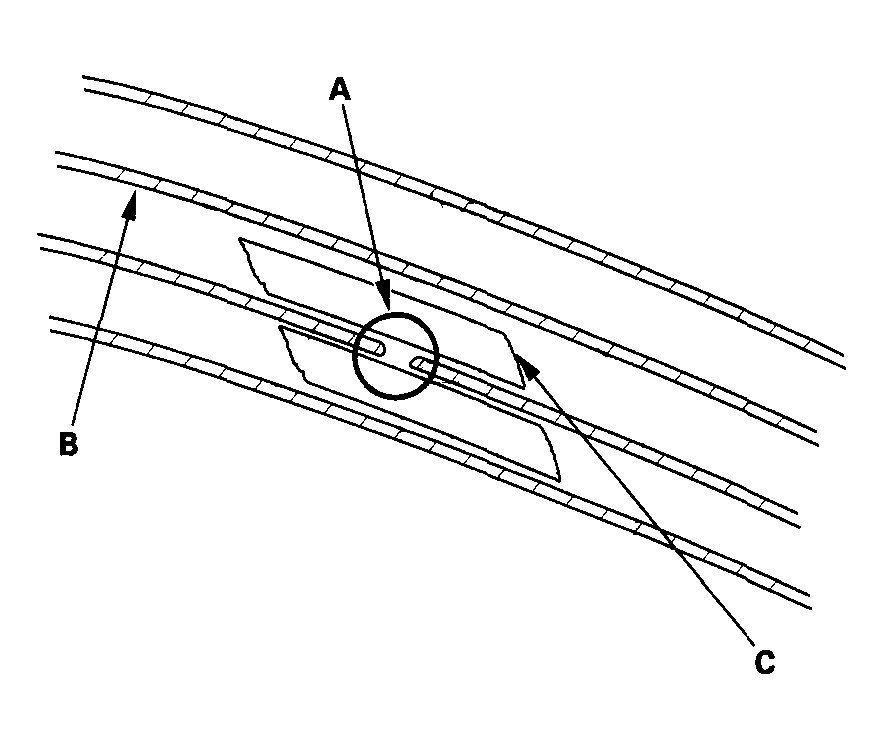

Fig 1: Locating Rub Area Around Broken Section
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Carefully mask above and below the broken portion of the defogger wire (B) with cellophane tape (C).
Mix the silver conductive paint thoroughly. Using a small brush, apply a heavy coat of paint (A) extending about 1/8" on both sides of the break. Allow 30 minutes to dry.

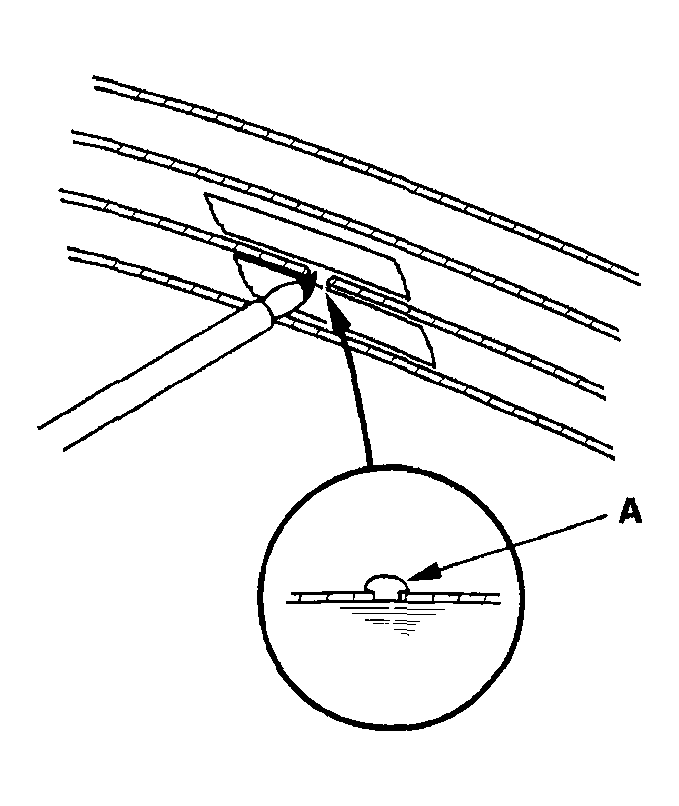

Fig 2: Applying Heavy Coat Of Paint On Both Sides Of Break
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity in the repaired wire.
Apply a second coat of paint in the same way. Let it dry 3 hours before removing the tape.
