Repair and Diagnosis
>>
Accessories & Equipment
>>
Heated Glass/Defoggers
>>
Rear Window Defogger
>>
Component Location Index
Component Location Index

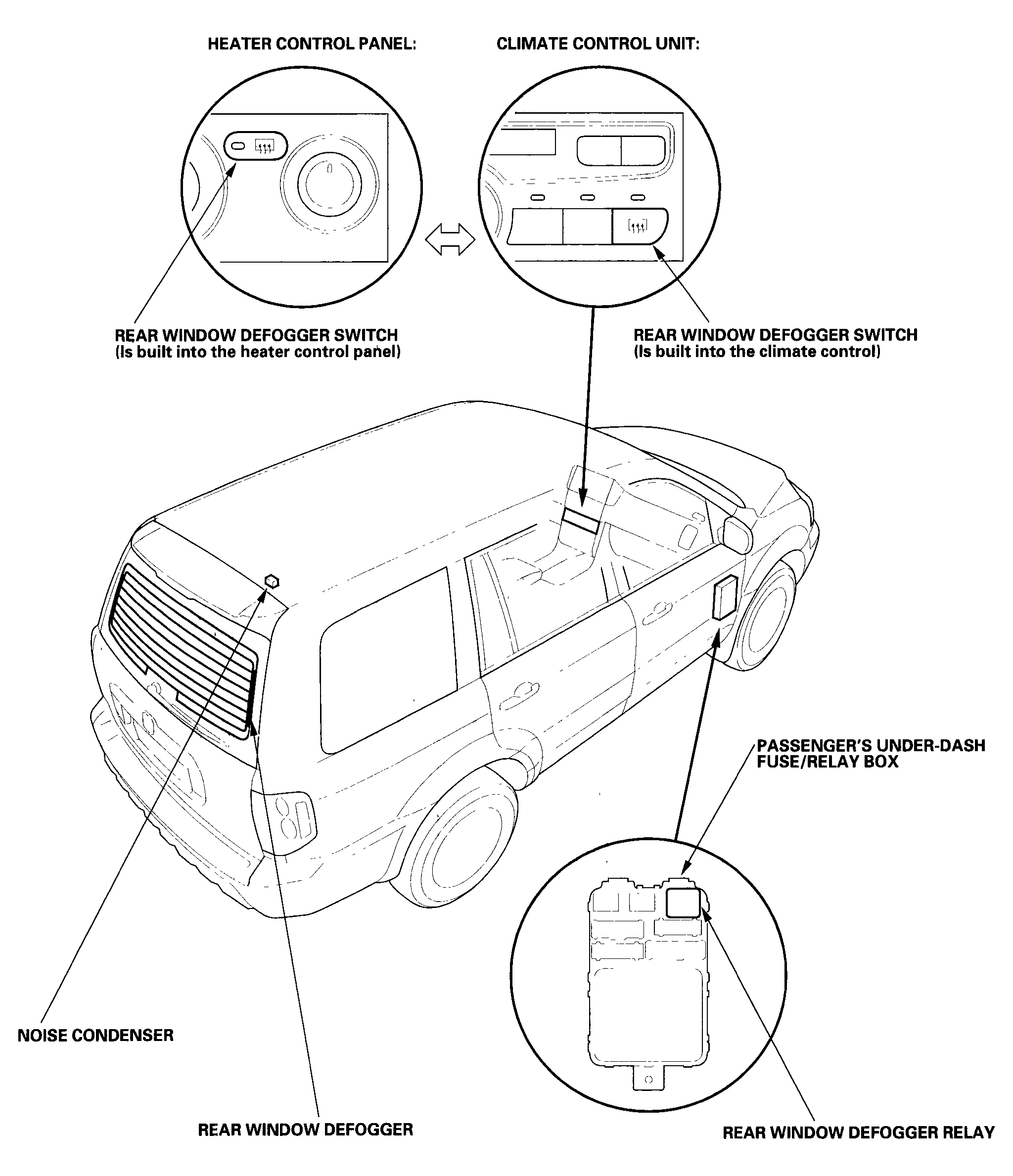

Fig 1: Identifying Rear Window Defogger Component Locations
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
