Pilot EX
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Anti-Theft Systems
>>
Keyless Entry/Security System
>>
Circuit Diagram
Circuit Diagram

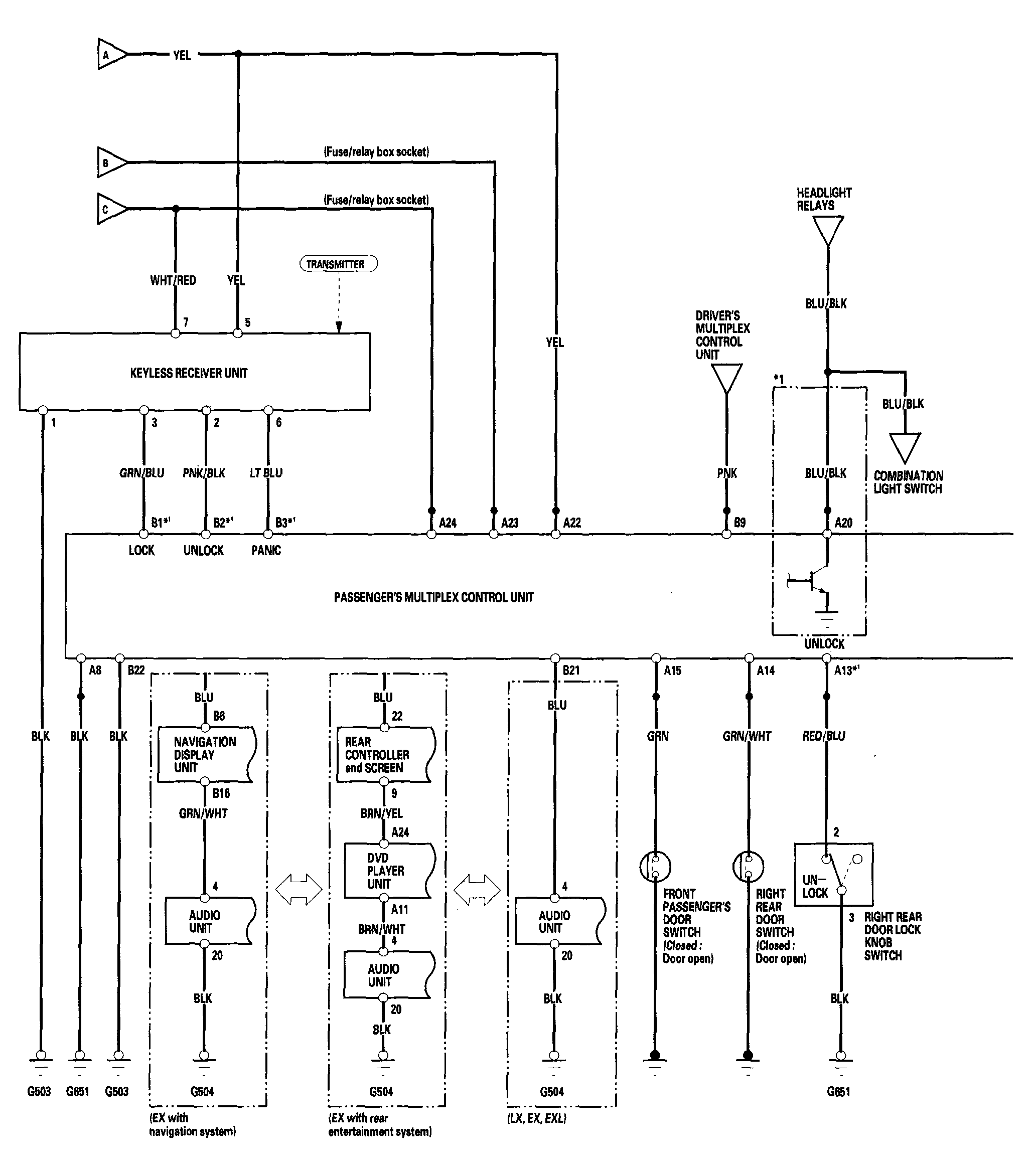

Fig 1: Keyless Entry/Security Alarm Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.

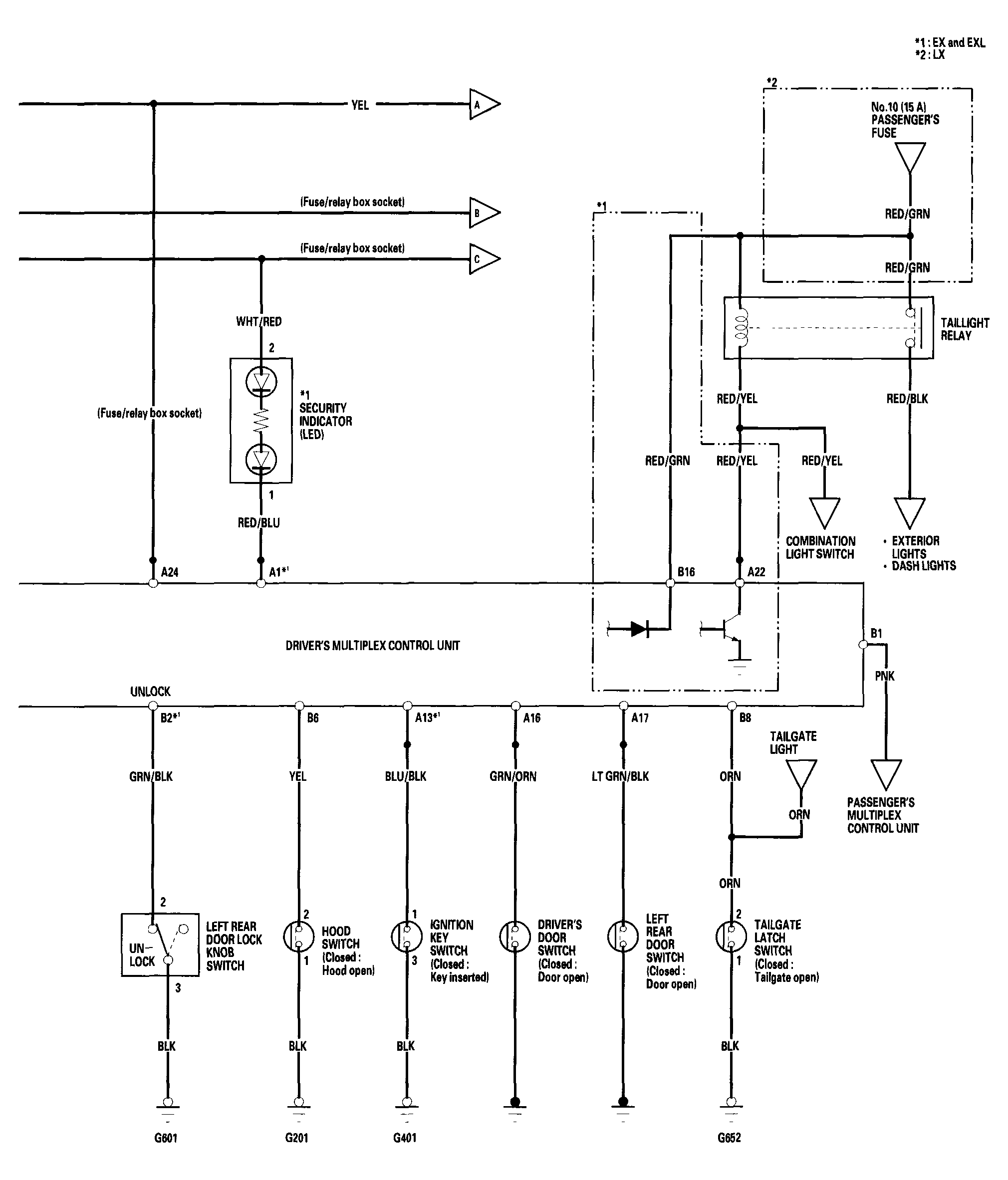

Fig 2: Drivers's Multiplex Control Unit Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 3: Keyless Entry/Security Alarm Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.

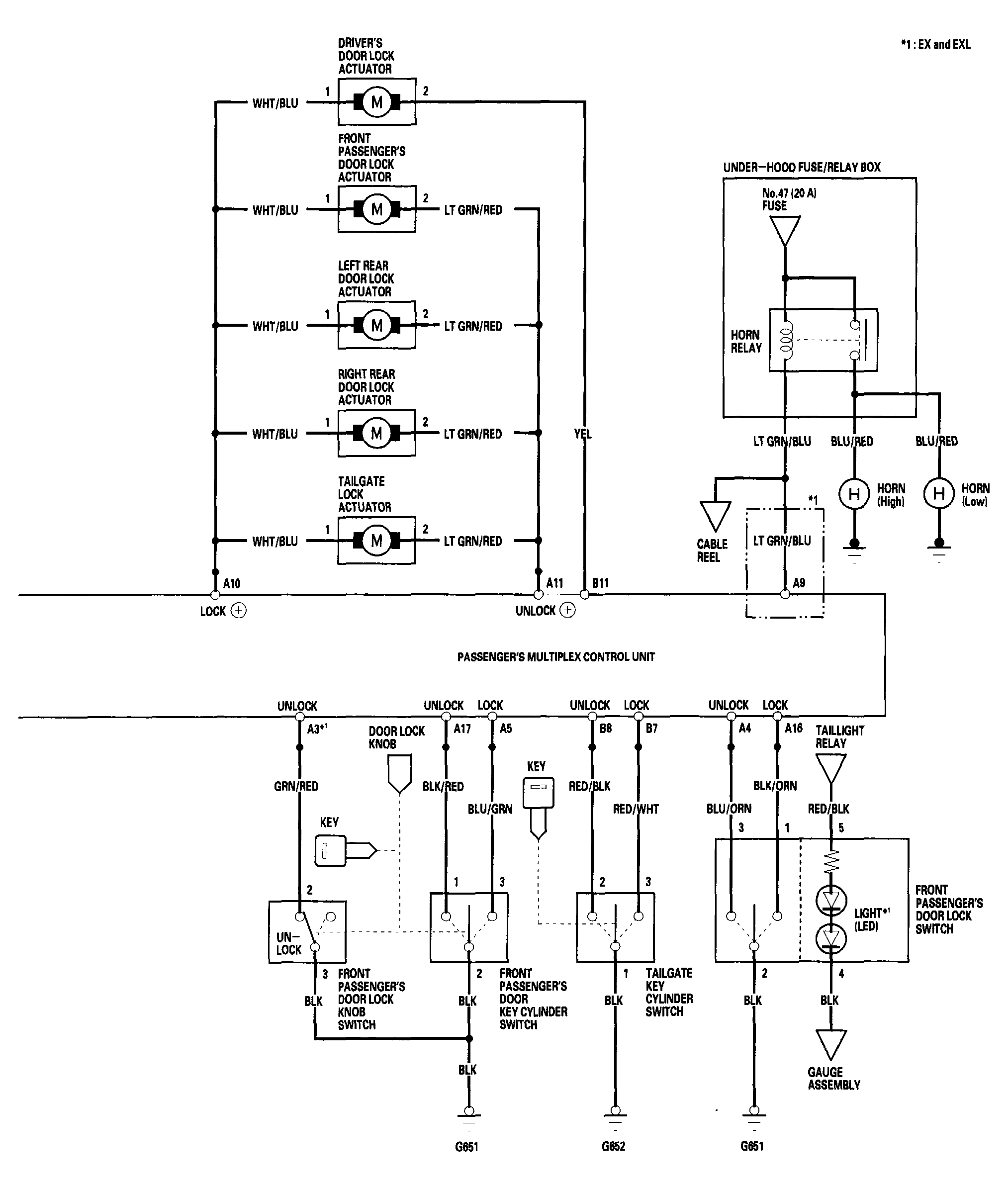

Fig 4: Passengers's Multiplex Control Unit Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
