Front Passenger's Weight Sensor Unit Connector End View

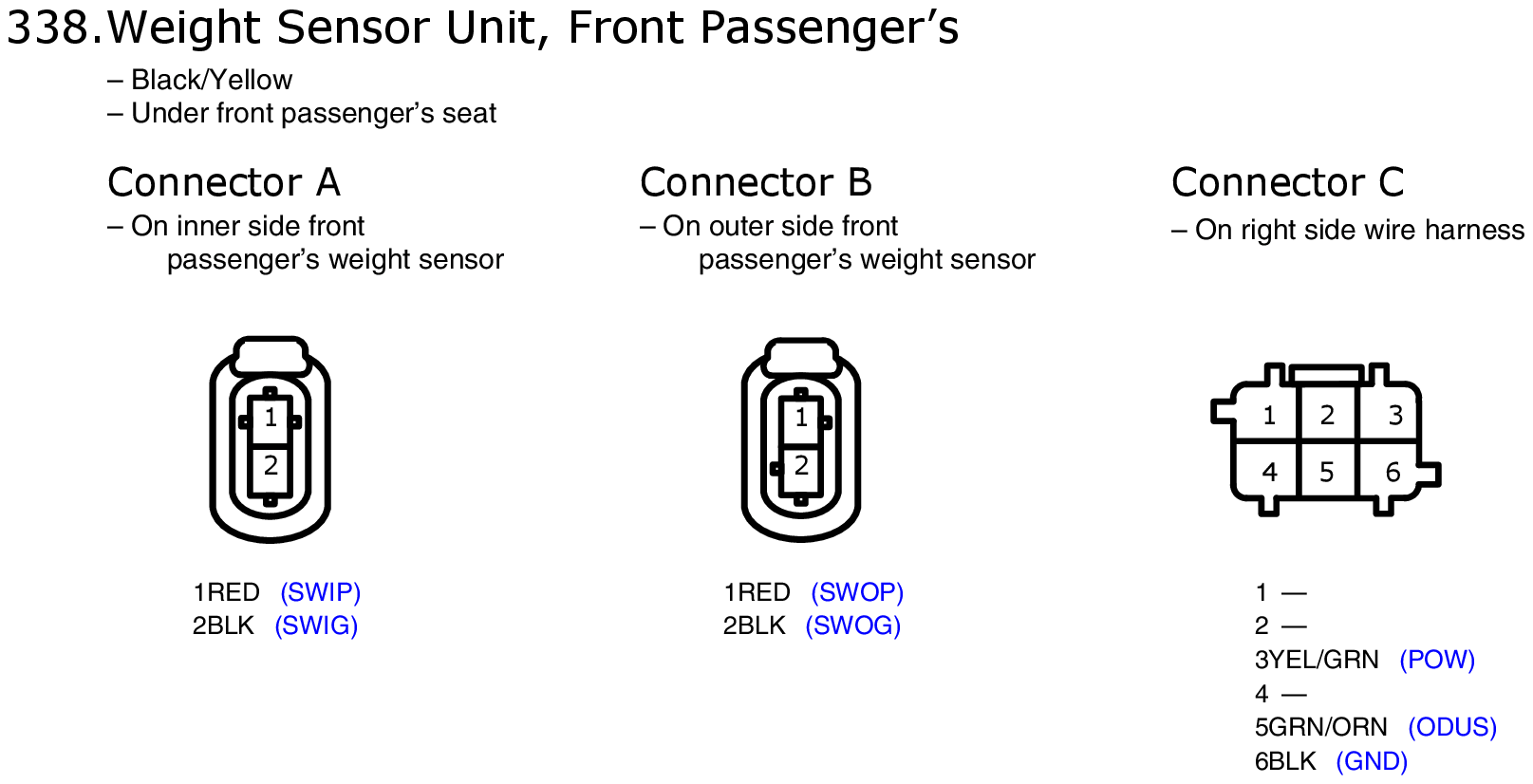

Fig 1: Front Passenger's Weight Sensor Unit Connector End View

GHHW5992

Courtesy of AMERICAN HONDA MOTOR CO., INC.
