DRL Control Unit Connector End View
DRL Control Unit Connector End View

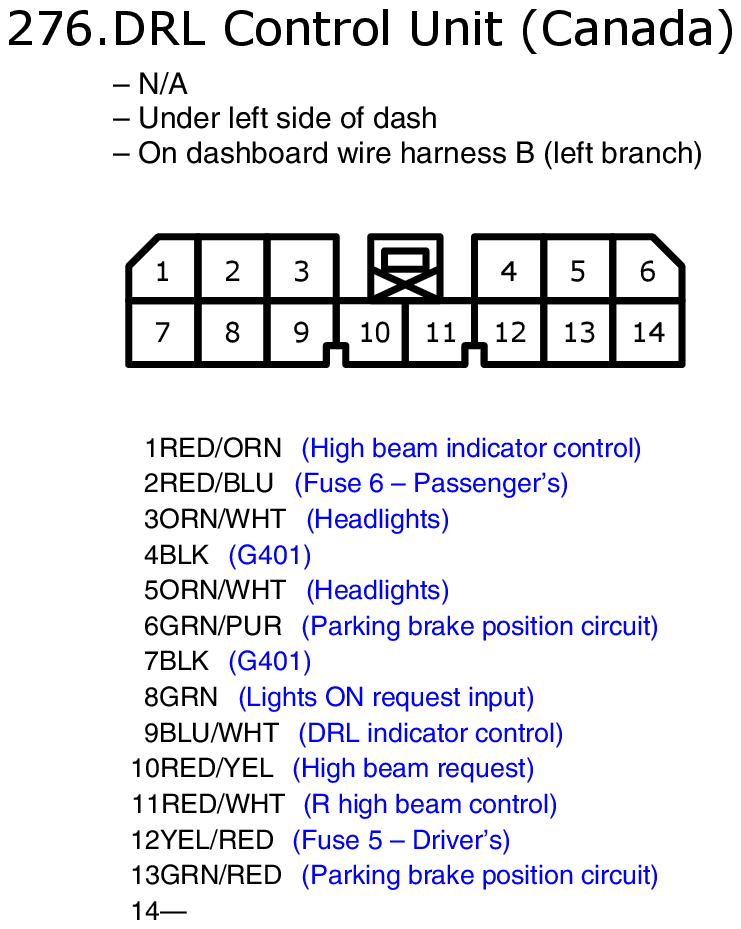

Fig 1: DRL Control Unit Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
