Component Location Index

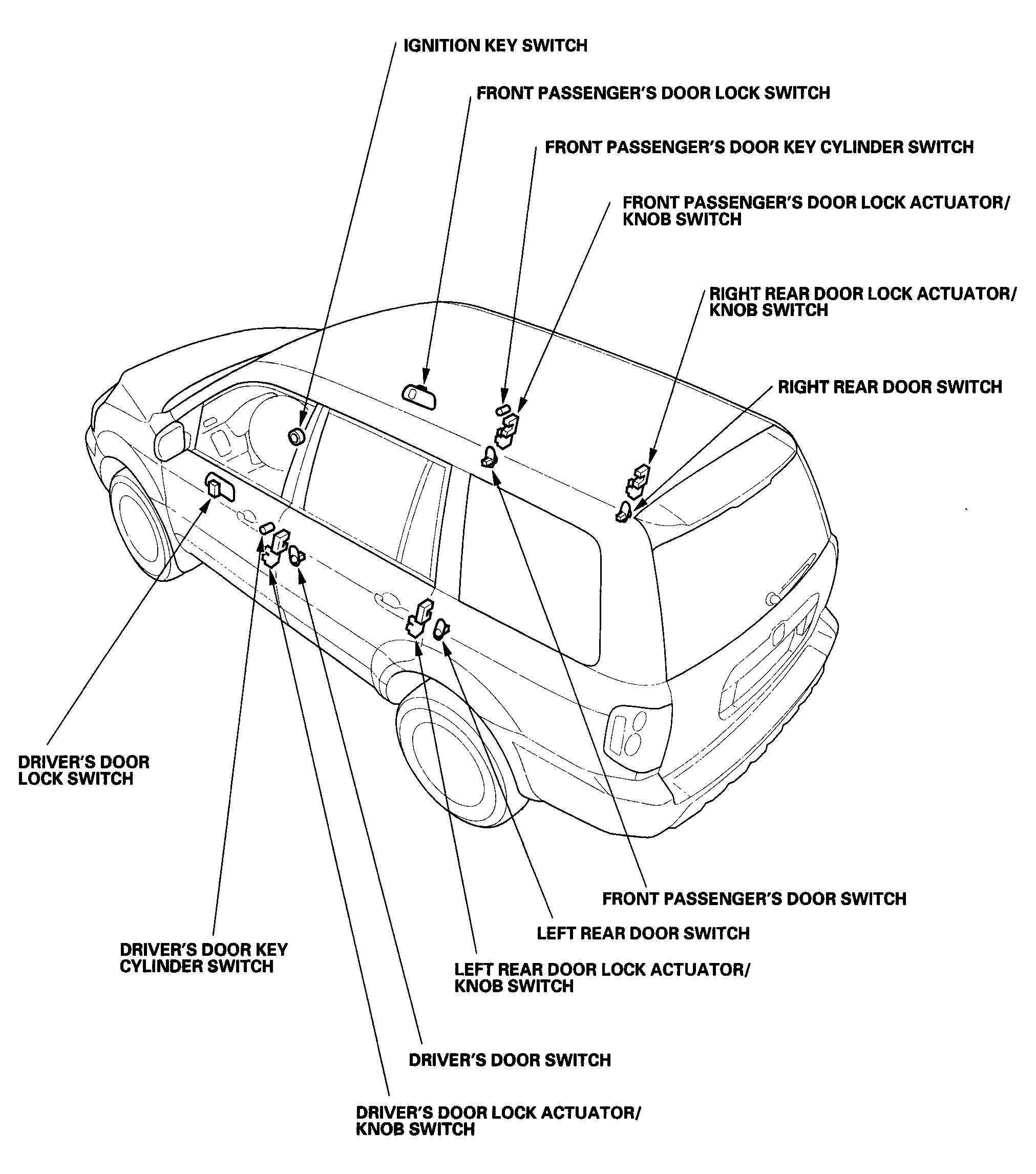

Fig 1: Identifying Keyless Entry/Security Alarm Component Location
G04548432Courtesy of AMERICAN HONDA MOTOR CO., INC.

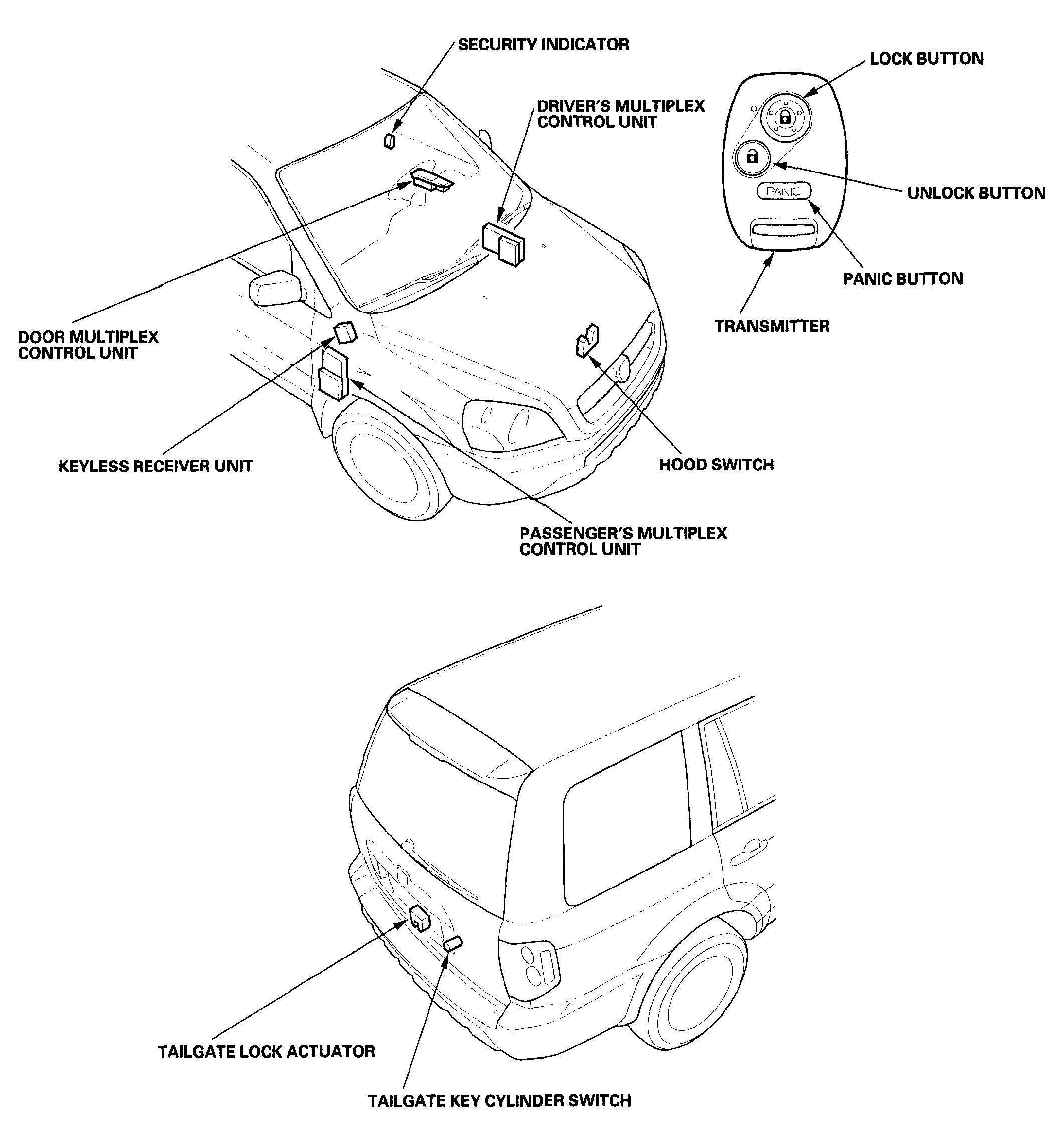

Fig 2: Identifying Keyless Entry/Security Alarm Component Location
G04548433Courtesy of AMERICAN HONDA MOTOR CO., INC.
