How to Update the PCM
NOTE:
- To ensure the latest program is installed, do a PCM update whenever the PCM is substituted or replaced.
- You can not update a PCM with the program it already has. It will only accept a new program.
- Before you update the PCM, make sure the vehicle's battery is fully charged.
- To prevent PCM damage, do not operate anything electrical (audio system, brakes, A/C, power windows, moonroof, door locks, etc.) during the update.
- If you need to diagnose the Honda interface module (HIM) because the HIM's red (#3) light came on or was flashing during the update, leave the ignition switch in the ON (II) position when you disconnect the HIM from the data link connector (DLC). This will prevent PCM damage.
- High temperature in the engine compartment might cause the PCM to become too hot to run the update. If the engine has been running before this procedure, open the hood and cool the engine compartment.
- Turn the ignition switch ON (II). Do not start the engine.

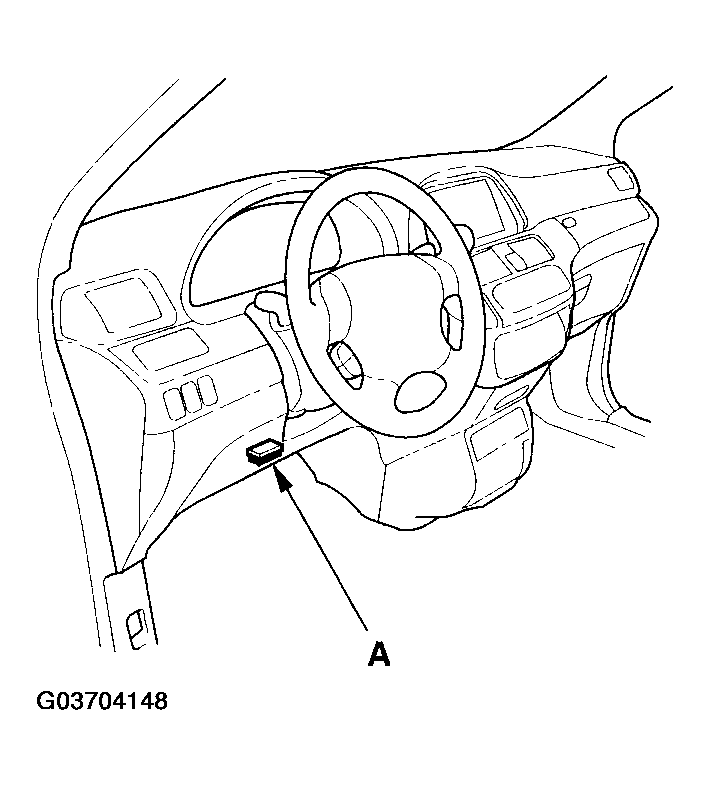

- Connect the HDS to the data link connector (DLC) (A) located under the driver's side of the dashboard.
- Select the INSPECTION MENU with the HDS.
- Do the TP POSITION CHECK in the ETCS TEST.
- If the HDS does not have the update function, disconnect the HDS from the vehicle and connect the Honda interface module (HIM).
- If the software in the PCM is the latest, disconnect the HDS or the HIM from the DLC, and go back to the procedure that you were doing.
If the software in the PCM is not the latest, do the PCM update procedure as described on the HIM label or in the PCM update system.
NOTE: If the PCM update system requires you to cool the PCM, follow the screen prompts. - Do the PCM idle learn procedure (see PCM IDLE LEARN PROCEDURE ).
- Do the CKP pattern clear/pattern learn procedure.
