Oil Pan Removal
- If the engine is already out the vehicle, go to step 6
- Raise the vehicle on a hoist to full height.
- Drain the engine oil (see ENGINE OIL REPLACEMENT
).
- Remove the splash shield (see step 29 in ENGINE REMOVAL
).
- Remove exhaust pipe A (see step 33 in ENGINE REMOVAL
).

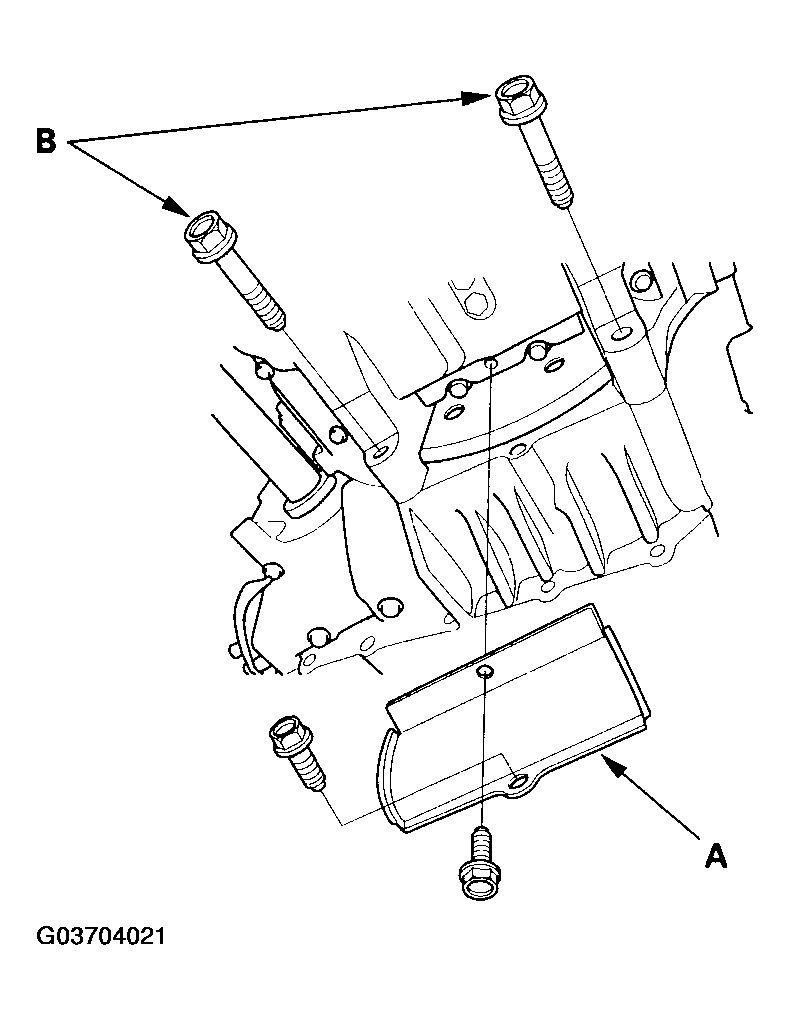

- Remove the torque converter cover (A) and the two bolts (B) securing the transmission.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Remove the bolts securing the oil pan.

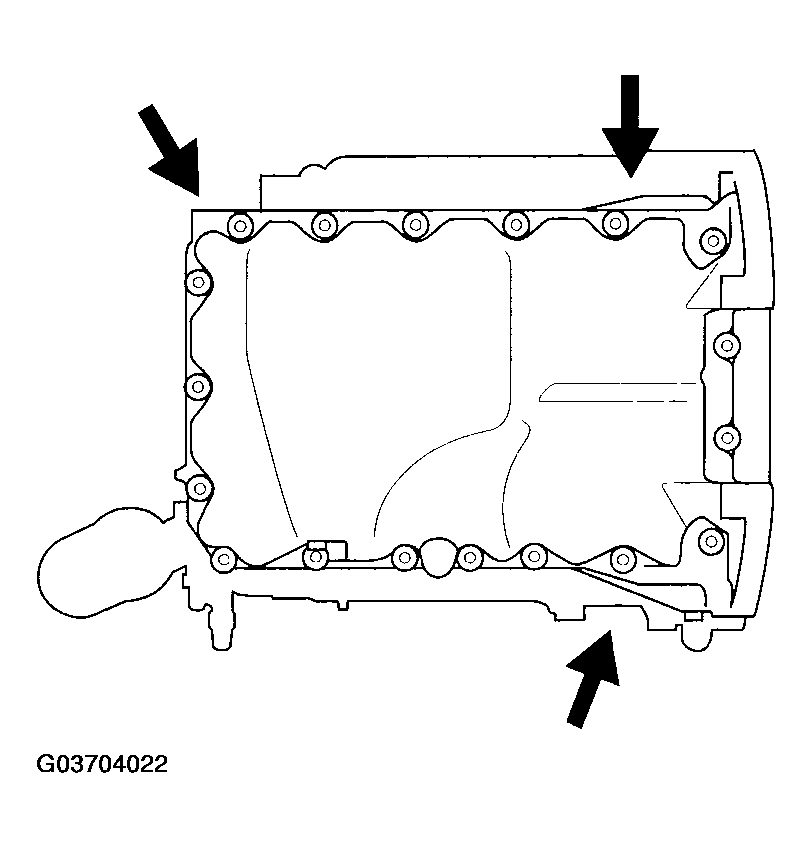

- Using a flat blade screwdriver, separate the oil pan from the block in the places shown in Fig 2
.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Remove the oil pan.
