With the HDS

  1. With the ignition switch OFF, connect the HDS to the 16P data link connector (DLC) (A) under the driver's side of the dashboard.

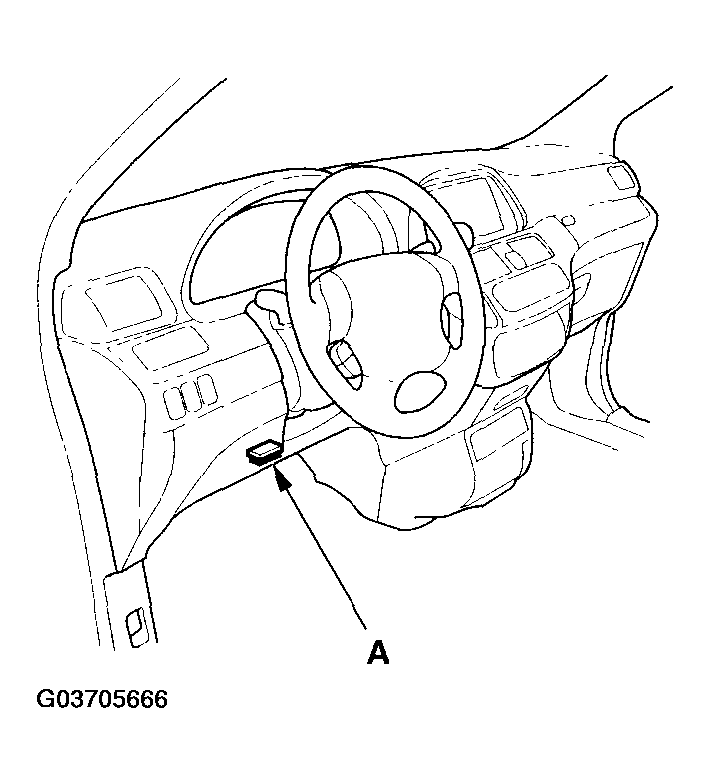

    Fig 1: Connecting HDS To DLC
    G03705666Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Select VSA from the System Select menu.
  3. Select Neutral Test, then All Sensors. Follow the system prompts.
