Odyssey Touring
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
VSA (Vehicle Stability Assist) System Components
>>
Circuit Diagram
Circuit Diagram

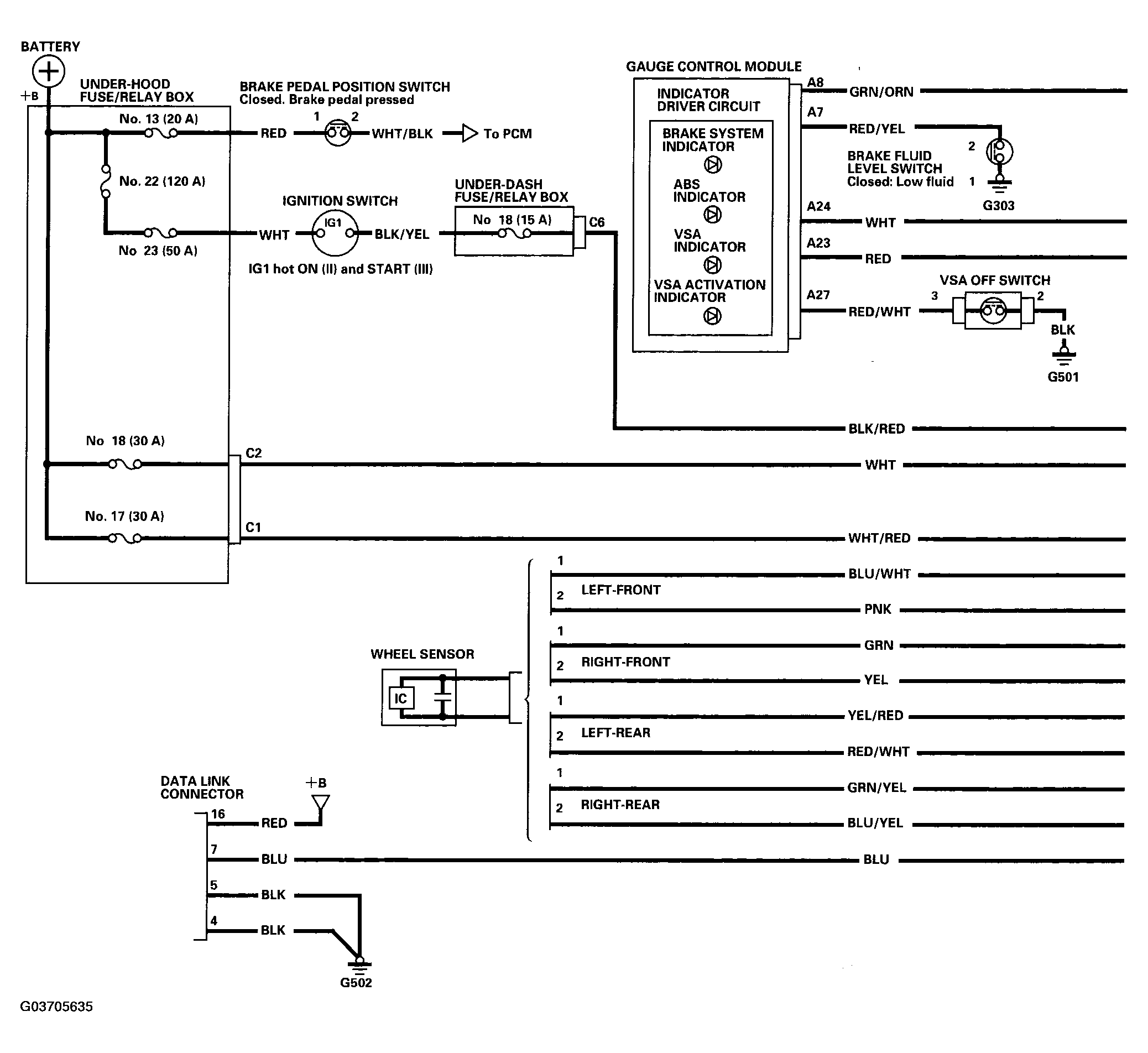

Fig 1: VSA System Circuit Diagram (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

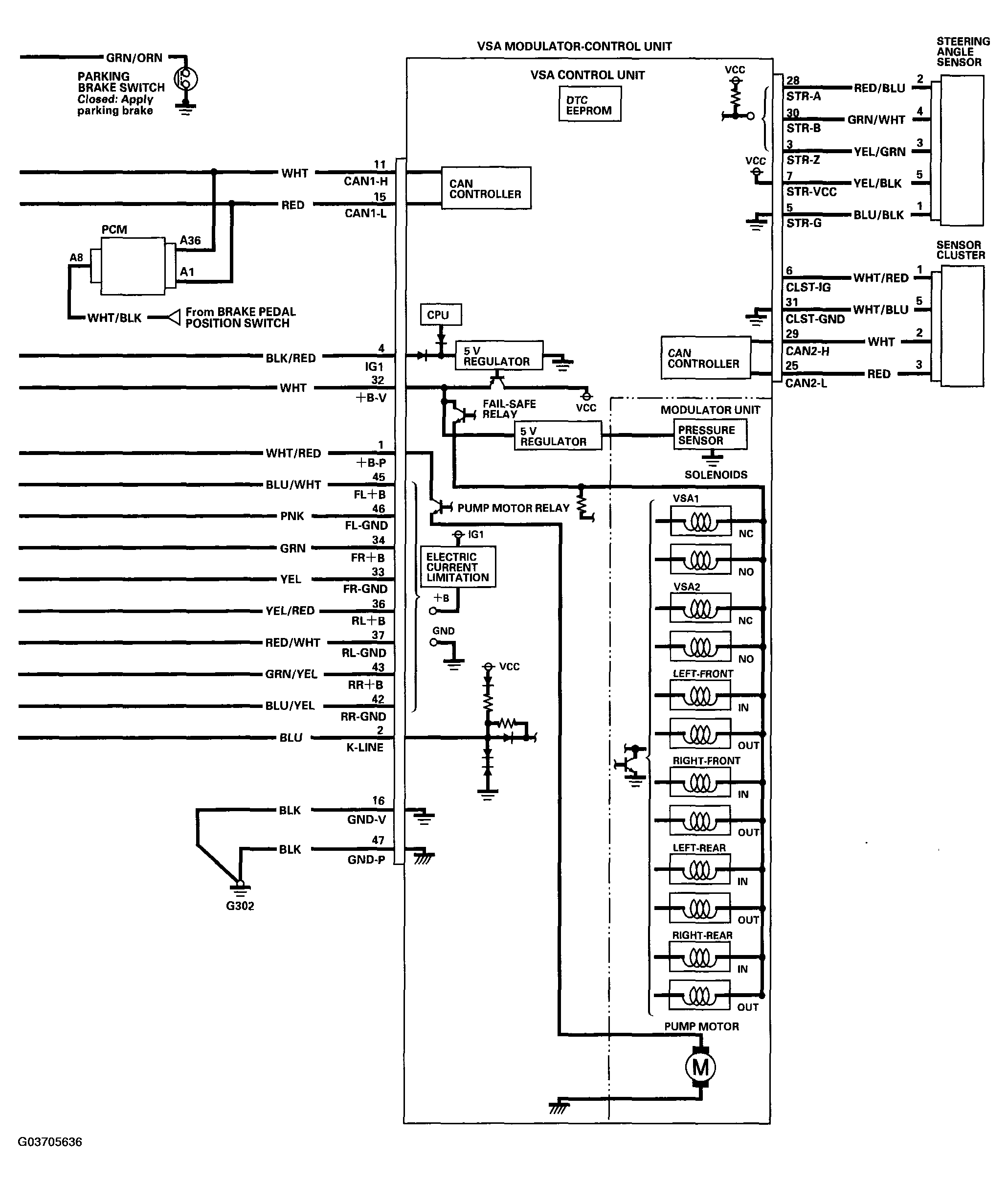

Fig 2: VSA System Circuit Diagram (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

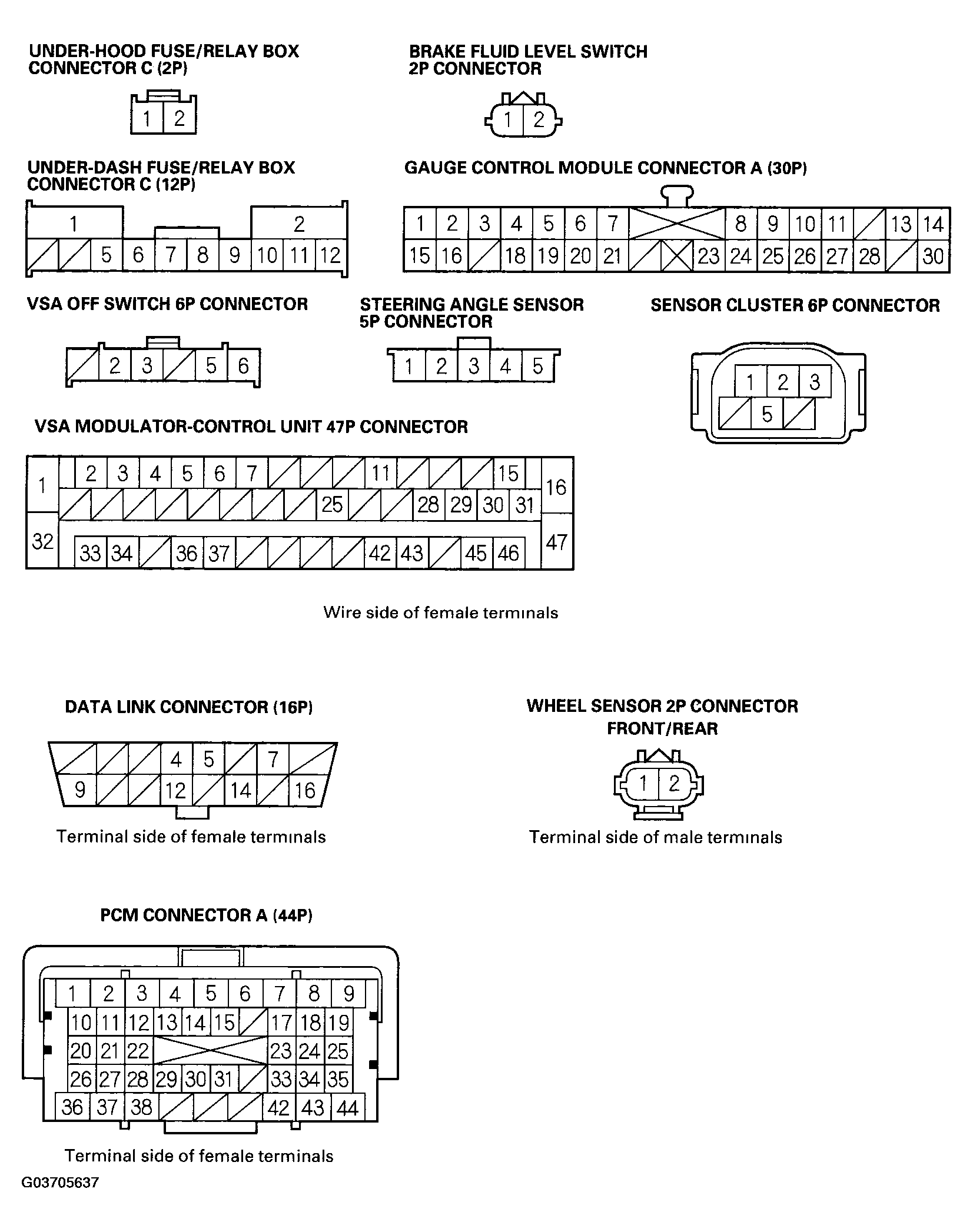

Fig 3: Identifying VSA System Connectors
Courtesy of AMERICAN HONDA MOTOR CO., INC.
