Without DPMS

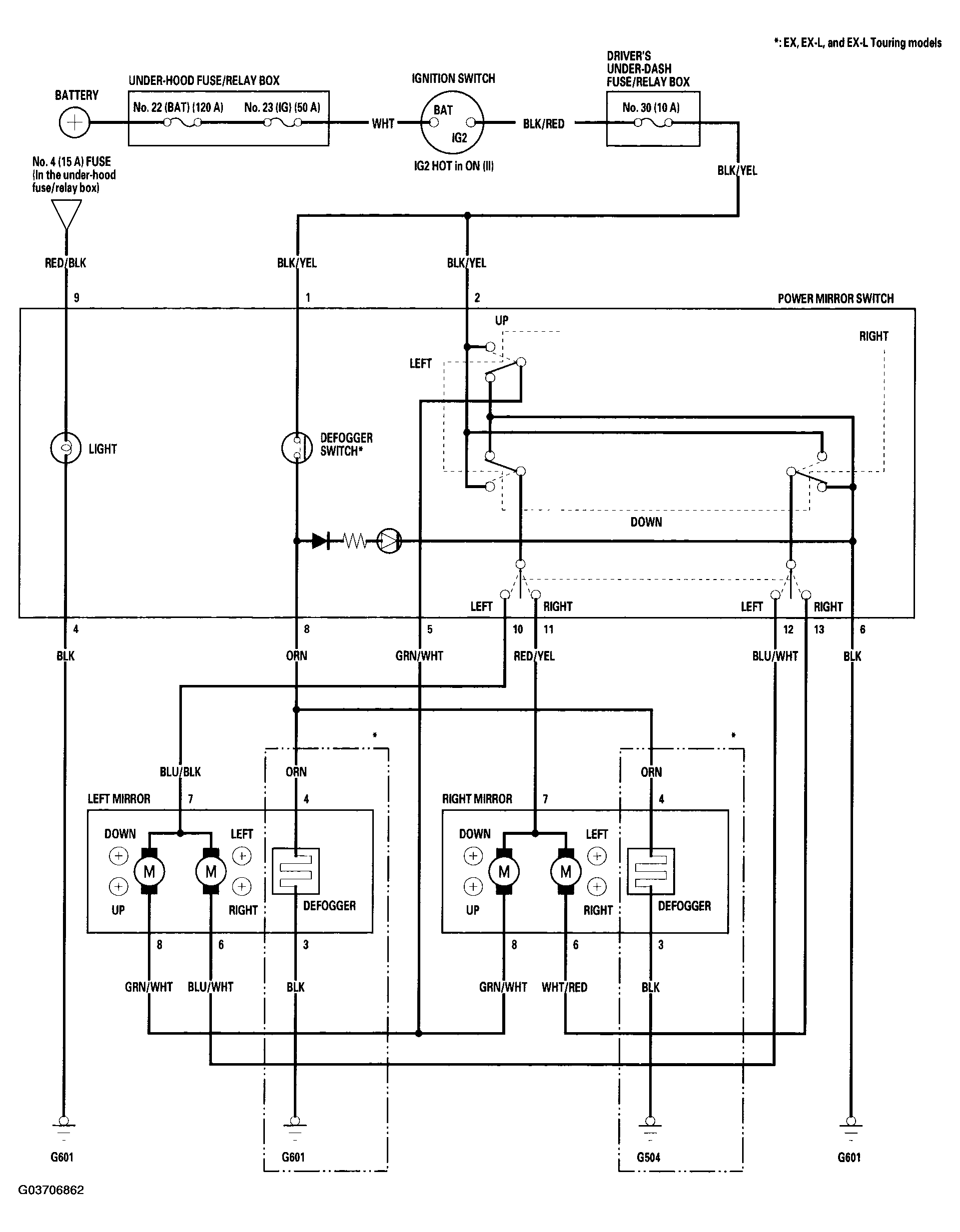

Fig 1: Power Mirrors Circuit Diagram (Without DPMS)

G03706862

Courtesy of AMERICAN HONDA MOTOR CO., INC.
