Shift Cable Adjustment

Remove the dashboard center lower cover (see DASHBOARD CENTER LOWER COVER REMOVAL/INSTALLATION ), and dashboard center panel (see DASHBOARD CENTER PANEL REMOVAL/INSTALLATION ).
Shift the shift lever into the R position.

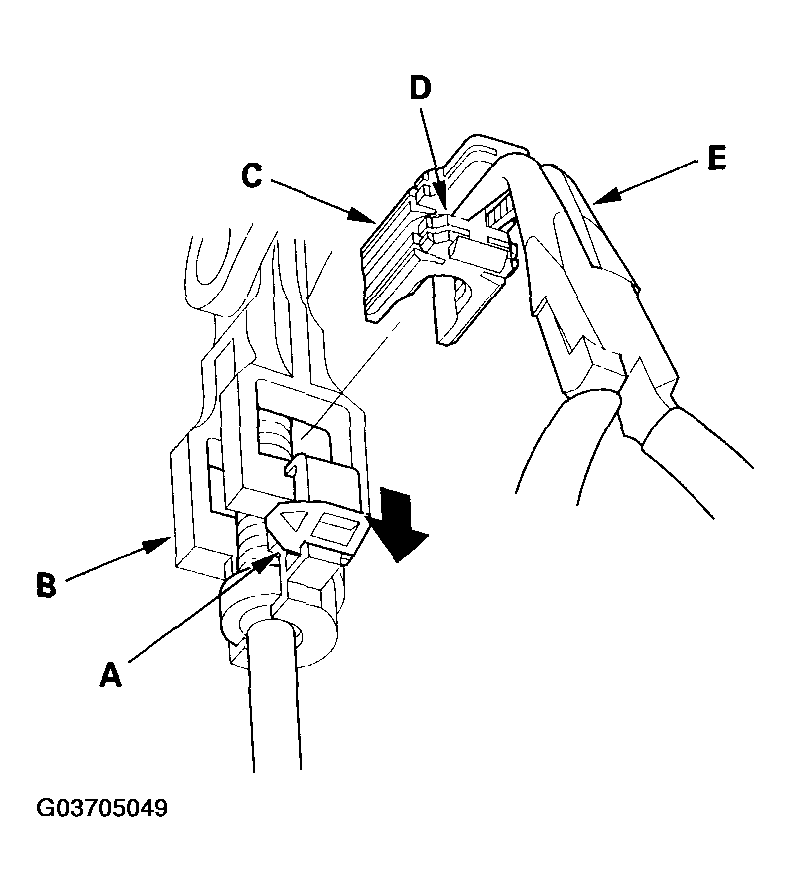

Slide the lock tab (A) down on the shift cable end holder (B).

Fig 1: Sliding Lock Tab Down On Shift Cable End Holder
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Grasp the shift cable lock (C) in the middle (D) with angle-jaw needle-nose pliers (E), and remove it from the shift cable end and shift cable end holder. Do not pry the shift cable lock with a screwdriver, it may damage the shift cable end holder.
Separate the shift cable end (A) from the shift cable end holder (B).

Fig 2: Separating Shift Cable End From Shift Cable End Holder
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Rotate the socket holder (A) on the shift cable (B) a quarter turn; the guide tab (C) on the socket holder will be perpendicular to the opening (D) of the socket holder bracket (E). Then slide the holder to remove the shift cable from the socket holder bracket. Do not remove the shift cable by twisting the shift cable guide (F).

Fig 3: Rotating Socket Holder On Shift Cable
Courtesy of AMERICAN HONDA MOTOR CO., INC.

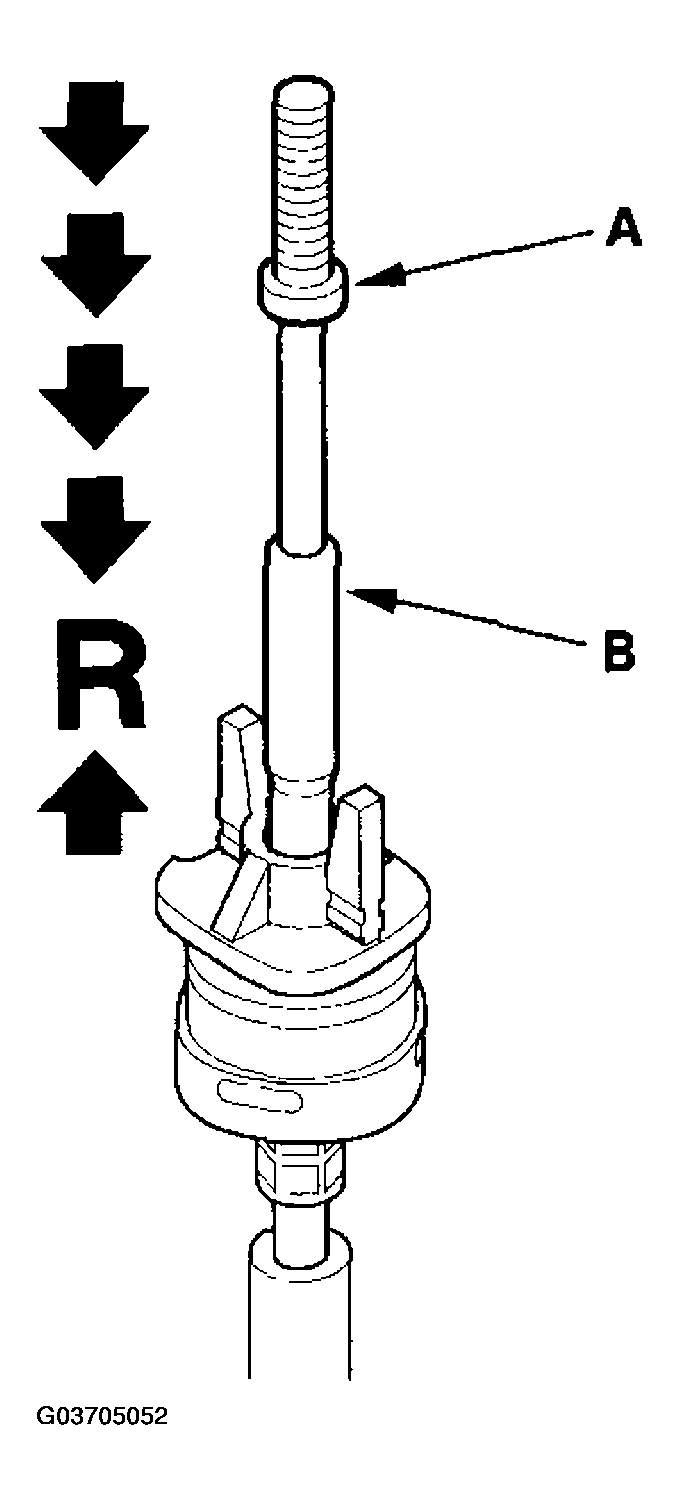

Push the shift cable (A) until it stops, and release it. Pull the shift cable back one step so that the shift cable is in the R position. Do not hold the shift cable guide (B) to adjust the shift cable.

Fig 4: Pushing Shift Cable
Courtesy of AMERICAN HONDA MOTOR CO., INC.

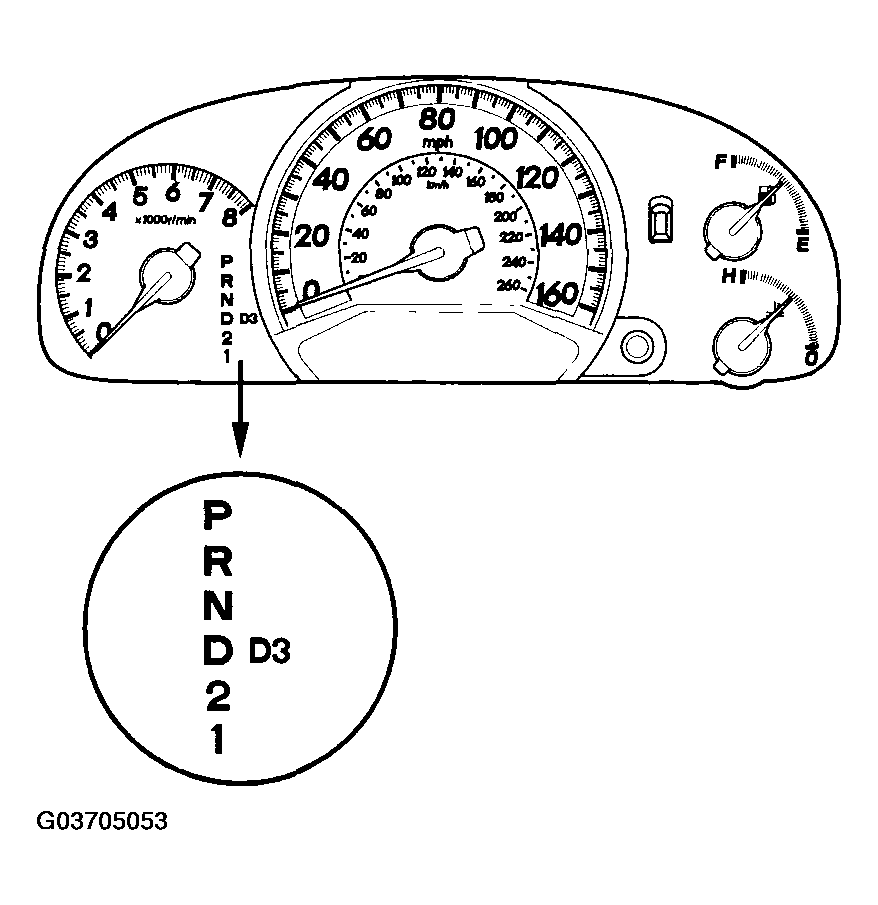

Turn the ignition switch ON (II), and verify that the R position indicator comes on.

Fig 5: Verifying R Position Indicator Comes On
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Turn the ignition switch OFF.

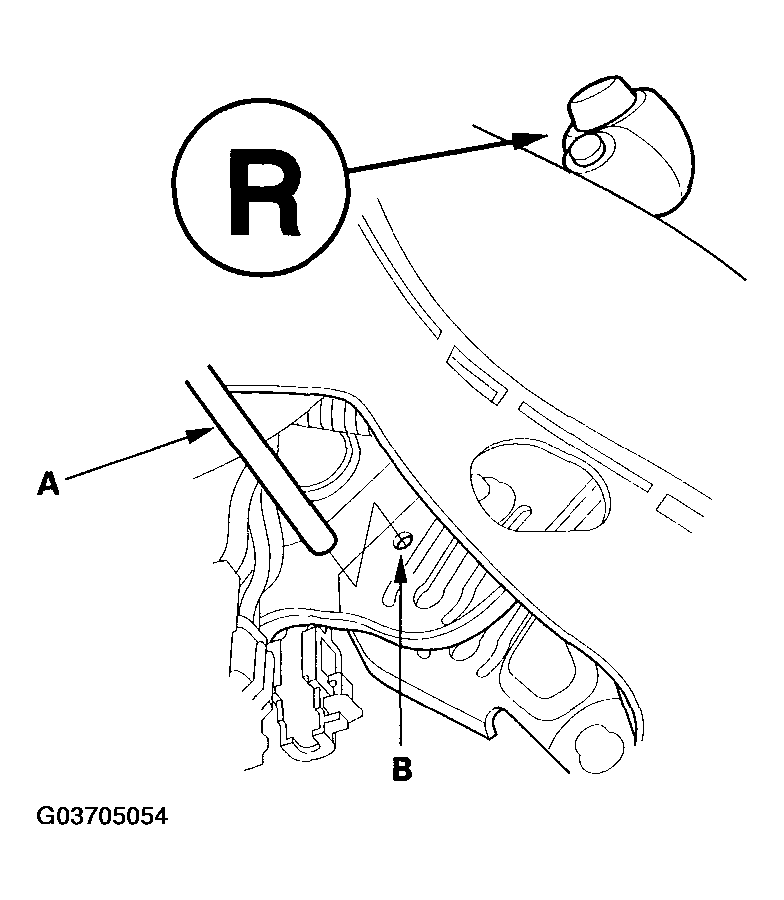

Insert a 6.0 mm (0.24 in.) pin (A) into the positioning hole (B) on the shift lever bracket base and through the positioning hole on the shift lever. The shift lever is secured in the R position.

Fig 6: Inserting Pin Into Positioning Hole On Shift Lever Bracket Base
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Rotate the socket holder (A) on the shift cable (B) to place the guide tab (C) on the holder will be perpendicular to the opening (D) in the socket holder bracket (E). Align the holder with the opening in the bracket, then slide the holder into the bracket. Rotate the holder a quarter turn until the holder lock (F) stops at the projection (G) to secure the shift cable. Do not install the shift cable by twisting the shift cable guide (H).

Fig 7: Rotating Socket Holder On Shift Cable
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the shift cable end (A) in the shift cable end holder (B). Keep the shift cable end and end holder free of grease.

Fig 8: Installing Shift Cable End In Shift Cable End Holder
Courtesy of AMERICAN HONDA MOTOR CO., INC.

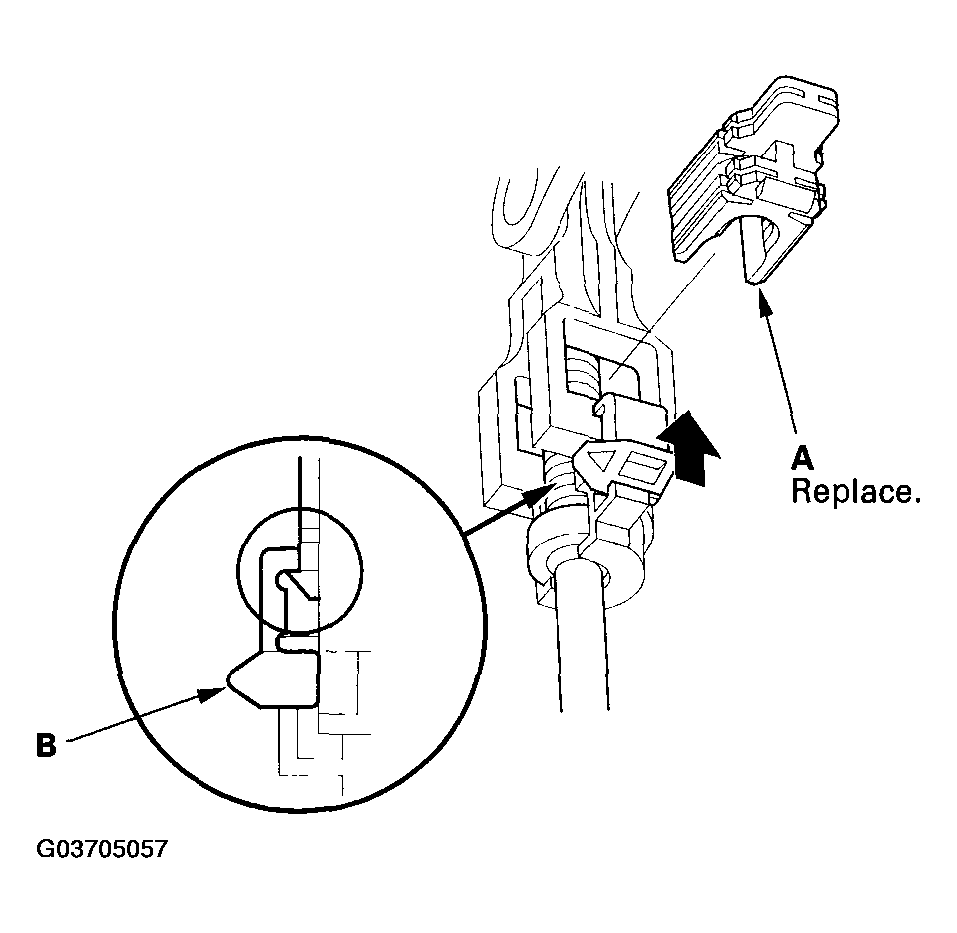

Install the new shift cable lock (A) to secure the shift cable end and shift cable end holder, then push the lock tab (B) up until it stops to lock the joint.

Fig 9: Installing Shift Cable Lock
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the 6.0 mm (0.24 in.) pin that was installed to hold the shift lever.
Move the shift lever to each position, and verify that the A/T gear position indicator follows the transmission range switch.
Install the dashboard center lower cover (see DASHBOARD CENTER LOWER COVER REMOVAL/INSTALLATION ), and dashboard center panel (see DASHBOARD CENTER PANEL REMOVAL/INSTALLATION ).
