Transmission Range Switch Test

  1. Remove the transmission range switch harness connector (A) from the connector bracket (B), then disconnect the connector.

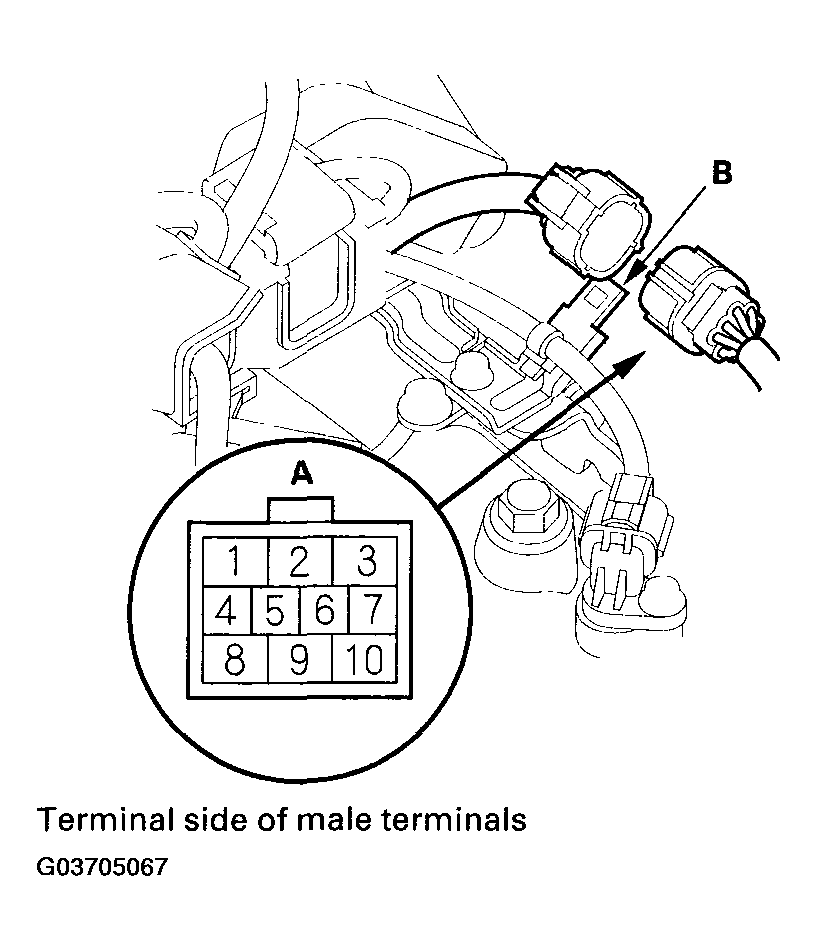

    Fig 1: Removing Transmission Range Switch Harness Connector
    G03705067Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Check for continuity between terminals at the harness connector. There should be continuity between the terminals in the following table for each switch position.
    • If the continuity test for each position is good, the switch is OK. Reconnect the connector.
    • If there is no continuity at one or more switch positions, go to step 3.

    Transmission Range Switch Harness Connector

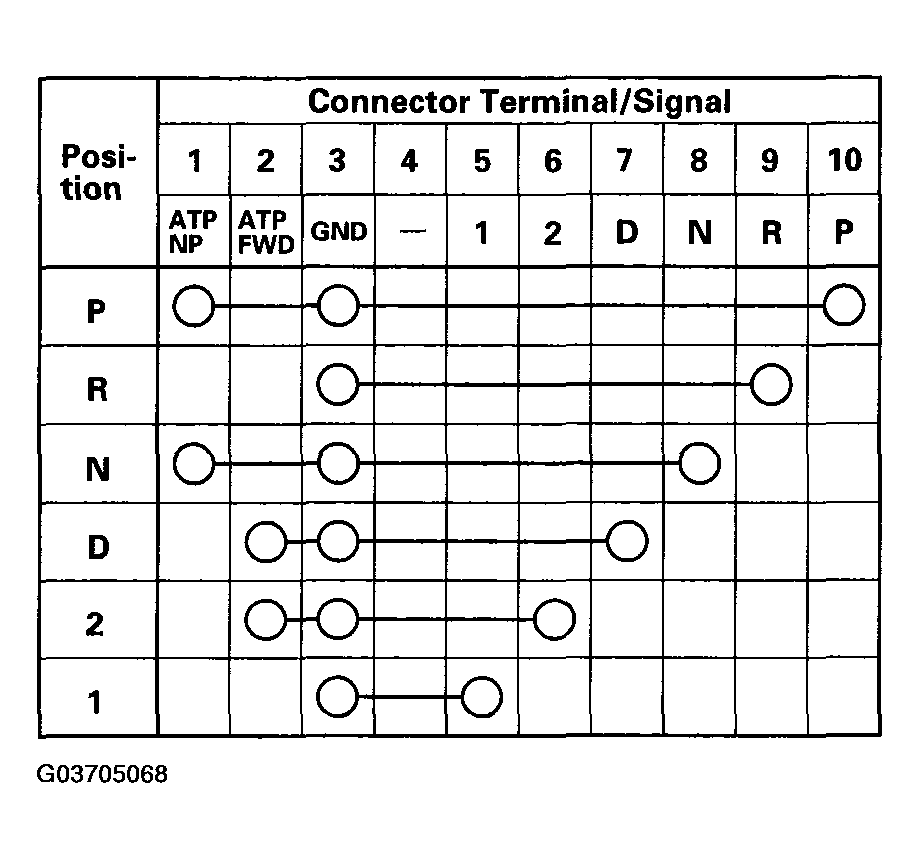

    Fig 2: Checking Continuity Between Transmission Range Switch Harness Connector Table
    G03705068Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the transmission range switch cover.

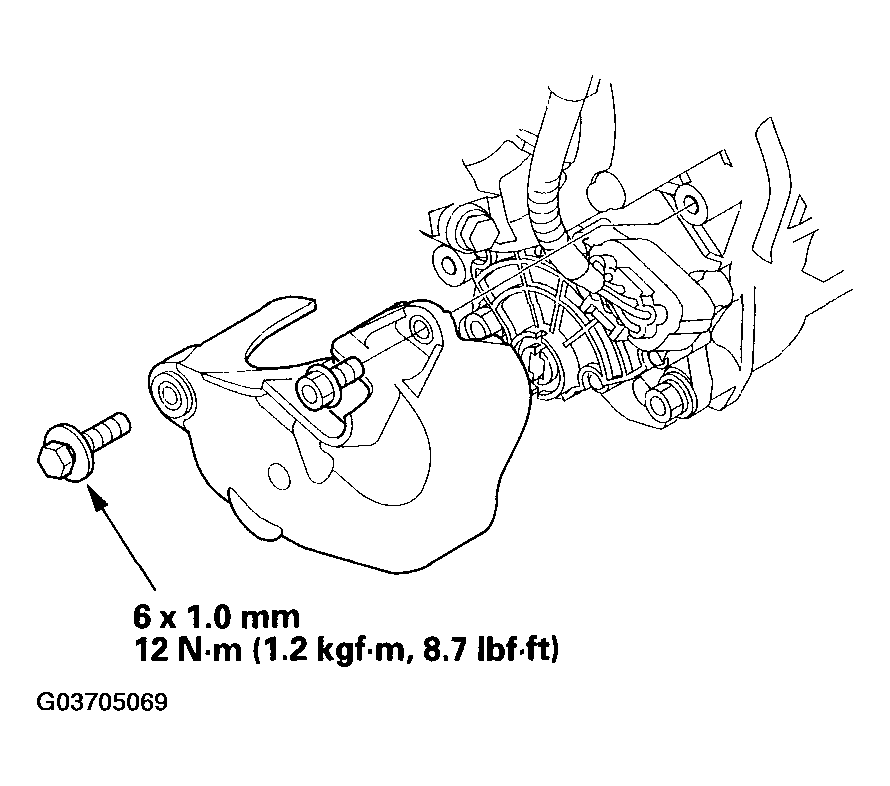

    Fig 3: Removing Transmission Range Switch Cover
    G03705069Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Disconnect transmission range switch connector.

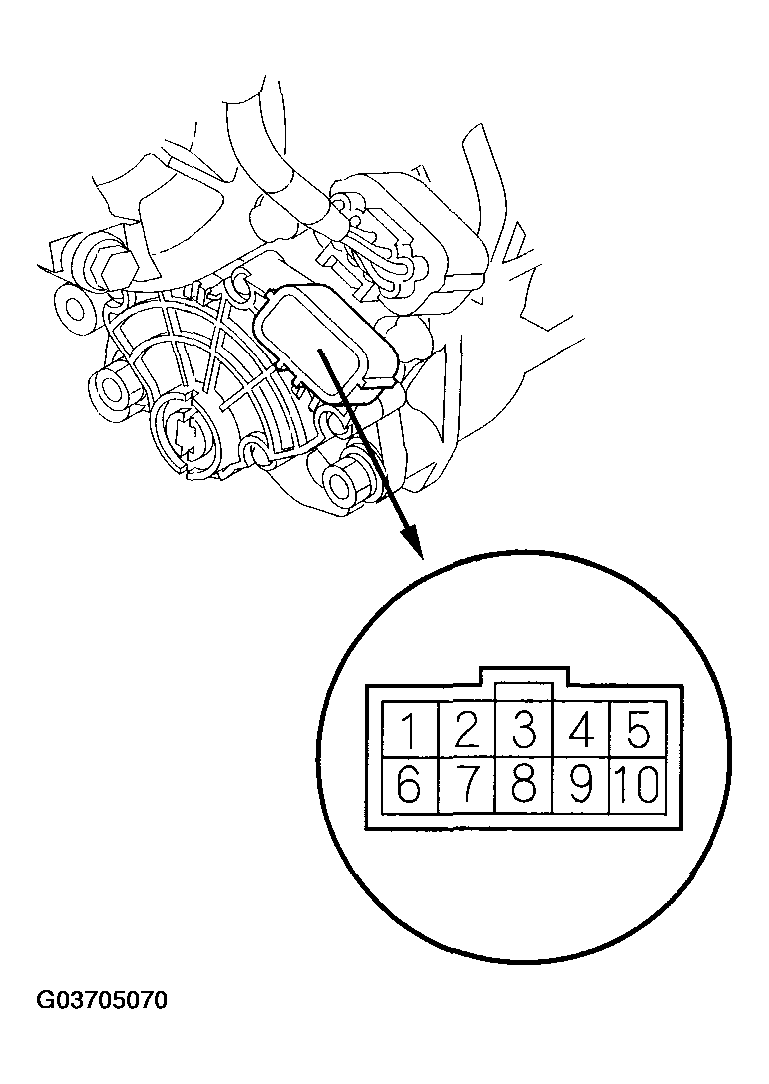

    Fig 4: Disconnecting Transmission Range Switch Connector
    G03705070Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Check for continuity between terminals at the switch connector. There should be continuity between the terminals in the following table for each switch position.
    • If the transmission range switch continuity check is OK, replace the faulty transmission range switch harness.
    • If there is no continuity at one or more switch positions, go to step 6.

    Transmission Range Switch Connector

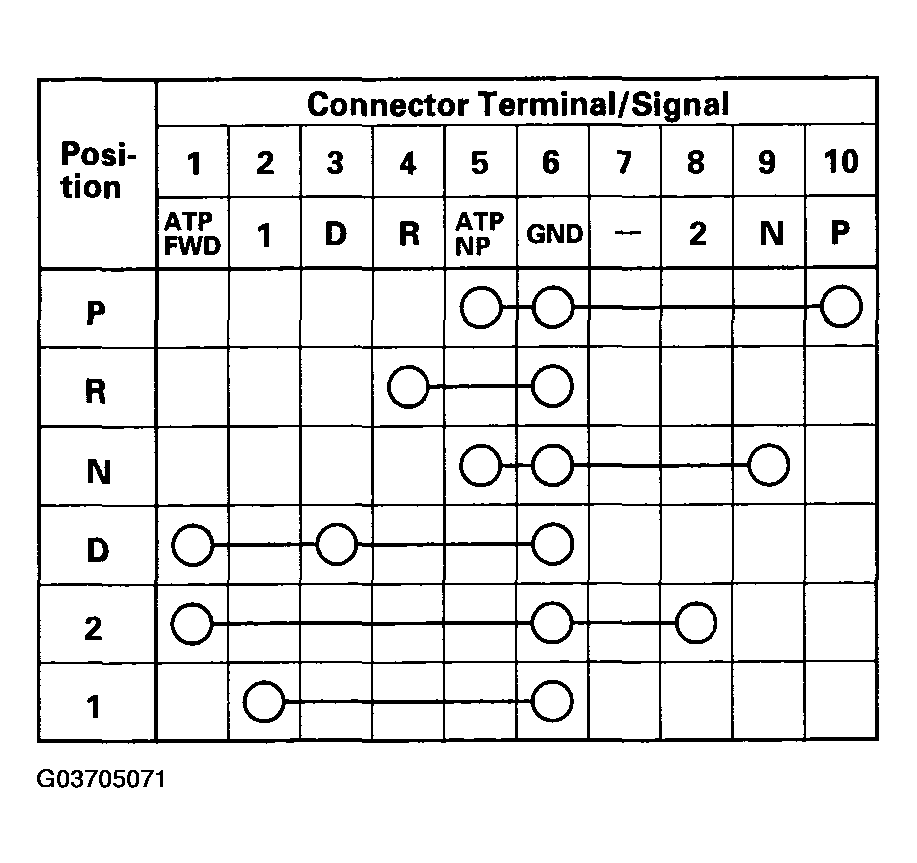

    Fig 5: Checking Continuity Between Transmission Range Switch Connector Table
    G03705071Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Remove the transmission range switch, and check the end of the selector control shaft (A).

    Standard

    • Selector Control Shaft Width (B): 6.1-6.2 mm (0.240-0.244 in.)
    • Selector Control Shaft End Gap (C): 1.8-2.0 mm (0.07-0.08 in.)
    • If the measurement of the selector control shaft end is within the standard, replace the transmission range switch (see TRANSMISSION RANGE SWITCH REPLACEMENT ).
    • If the measurement is out of standard, repair the selector control shaft end, and recheck the transmission range switch continuity.

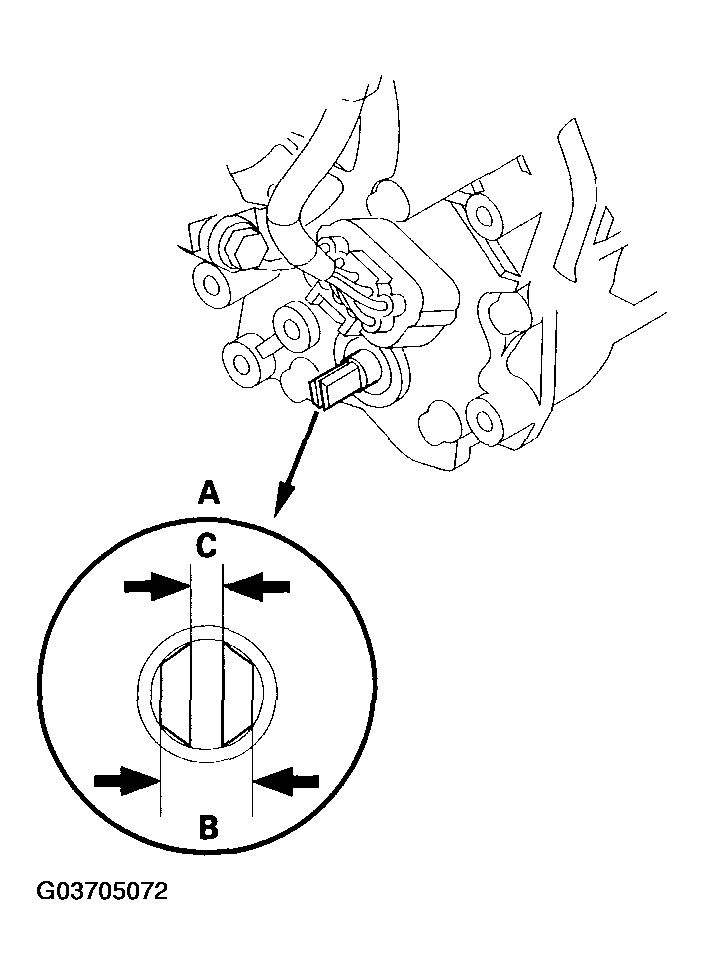

Fig 6: Checking End Of Selector Control Shaft
G03705072Courtesy of AMERICAN HONDA MOTOR CO., INC.
