Backlash Inspection

  1. Install both axles, and place the differential assembly on V-blocks (A).

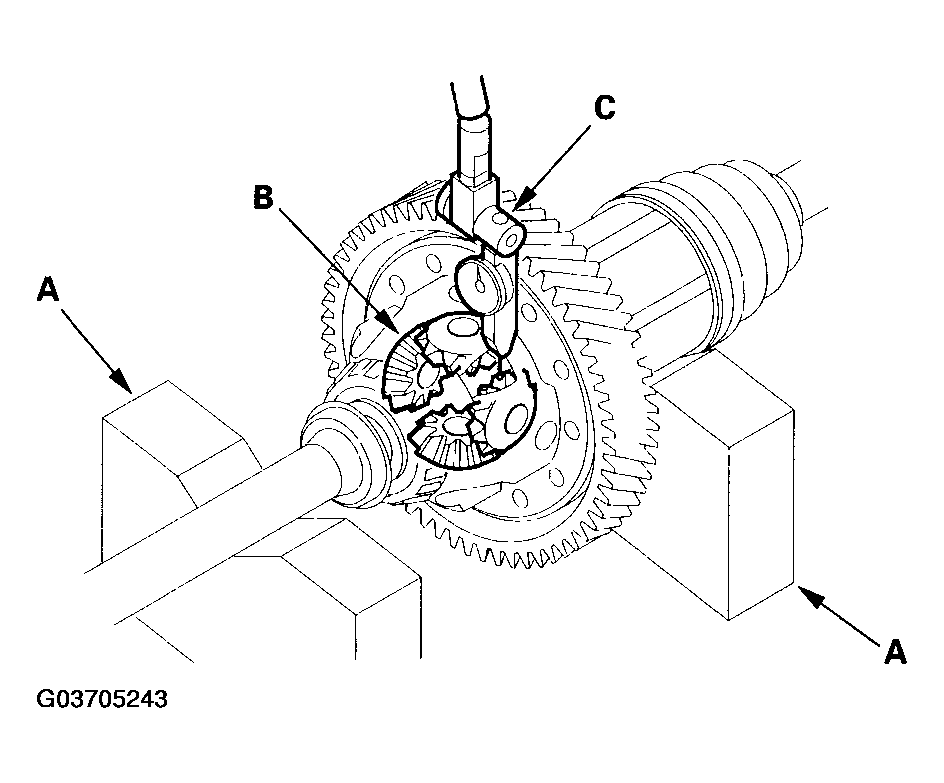

    Fig 1: Placing Differential Assembly On V-Blocks
    G03705243Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Measure the backlash of the pinion gears (B) with a dial indicator (C).

    Standard: 0.175-0.275 mm (0.007-0.011 in.)

  3. If the backlash is out of standard, replace the differential carrier.
