Lubricants And Fluids

For details of lubrication points and type of lubricants to be applied, refer to various work procedures (such as Assembly/Reassembly, Replacement, Overhaul, Installation, etc.)

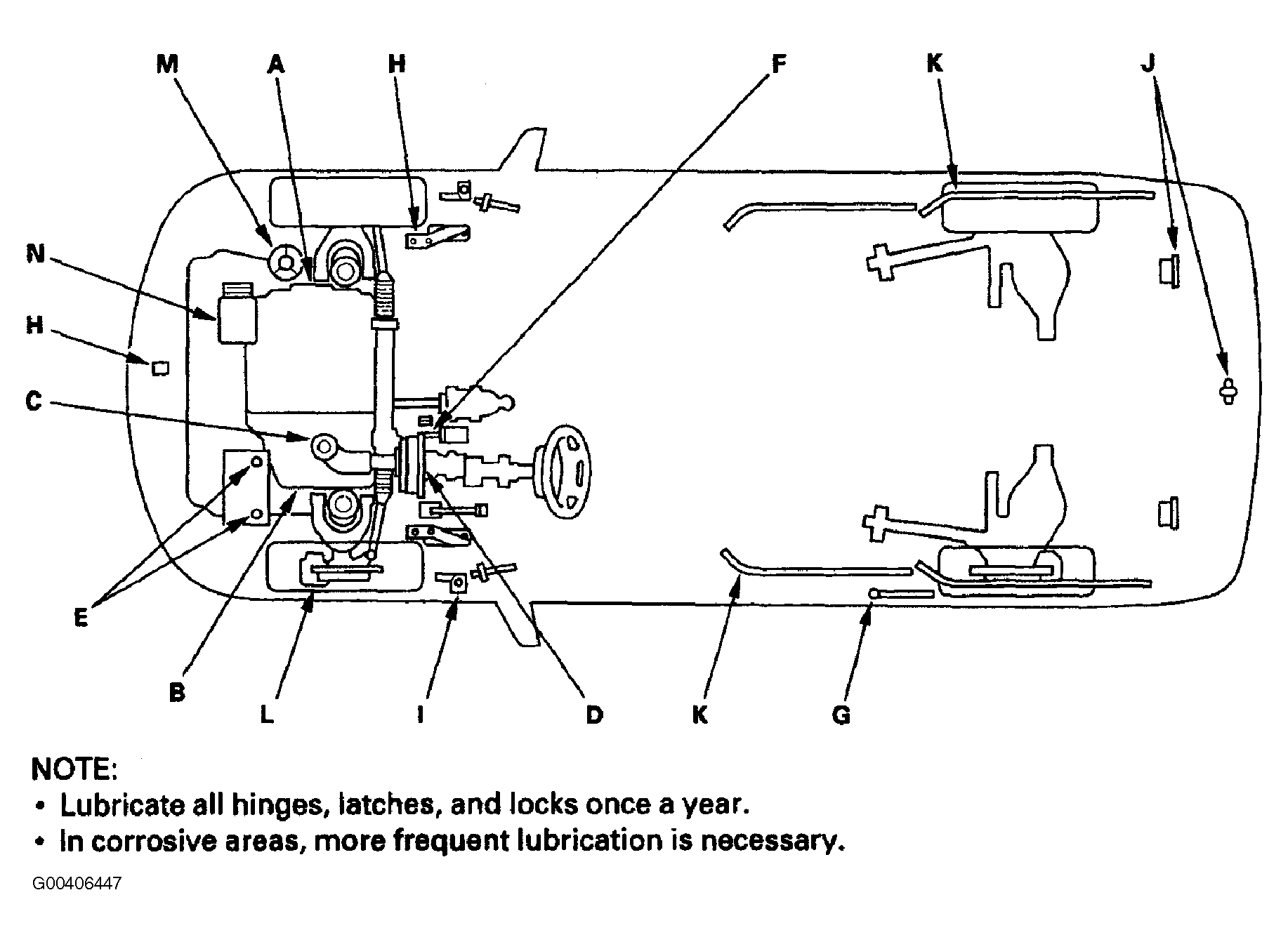

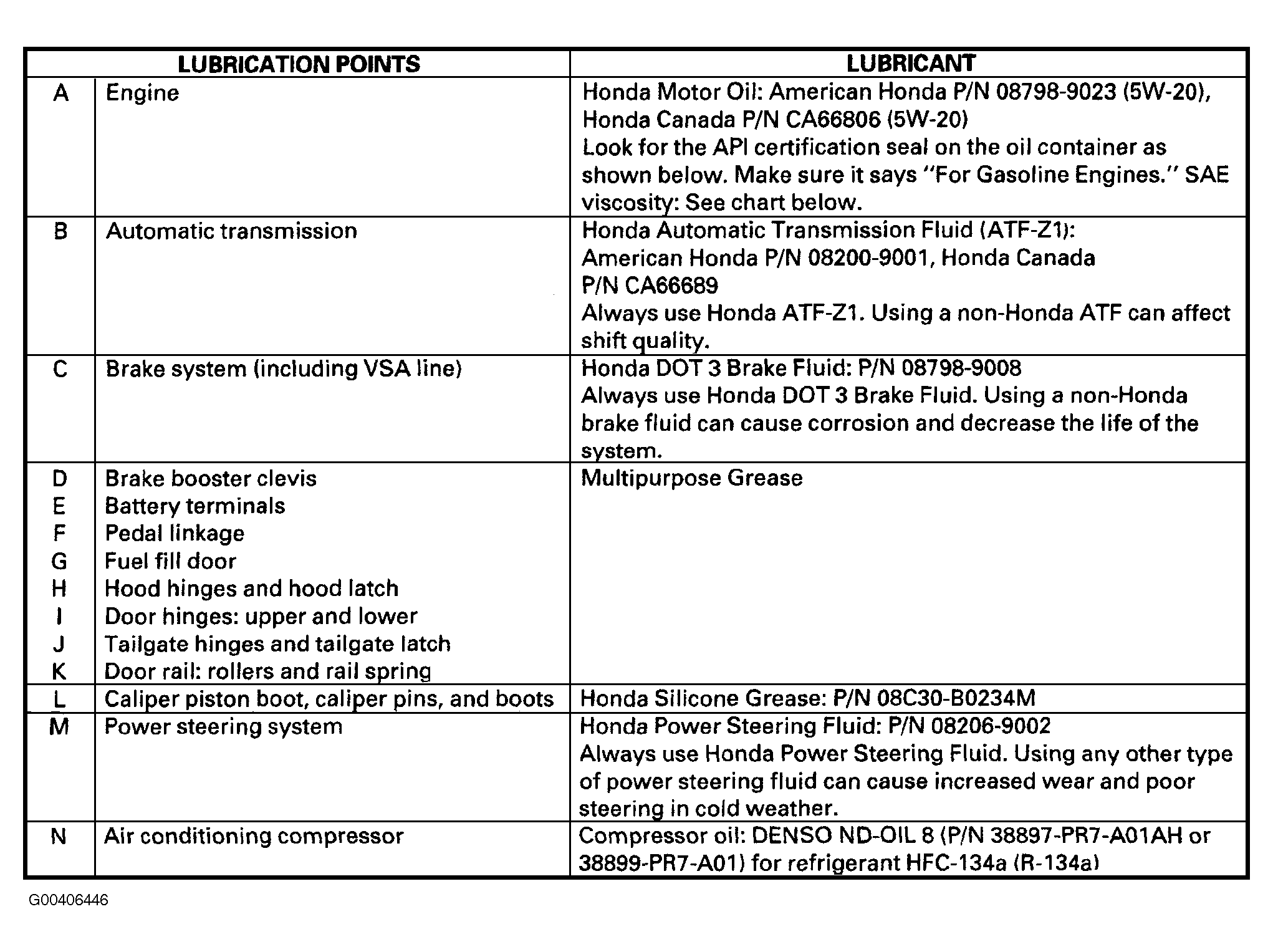

Fig 1: Lubricant Points & Lubricant Chart

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Identifying API Certifications Seal

Courtesy of AMERICAN HONDA MOTOR CO., INC.

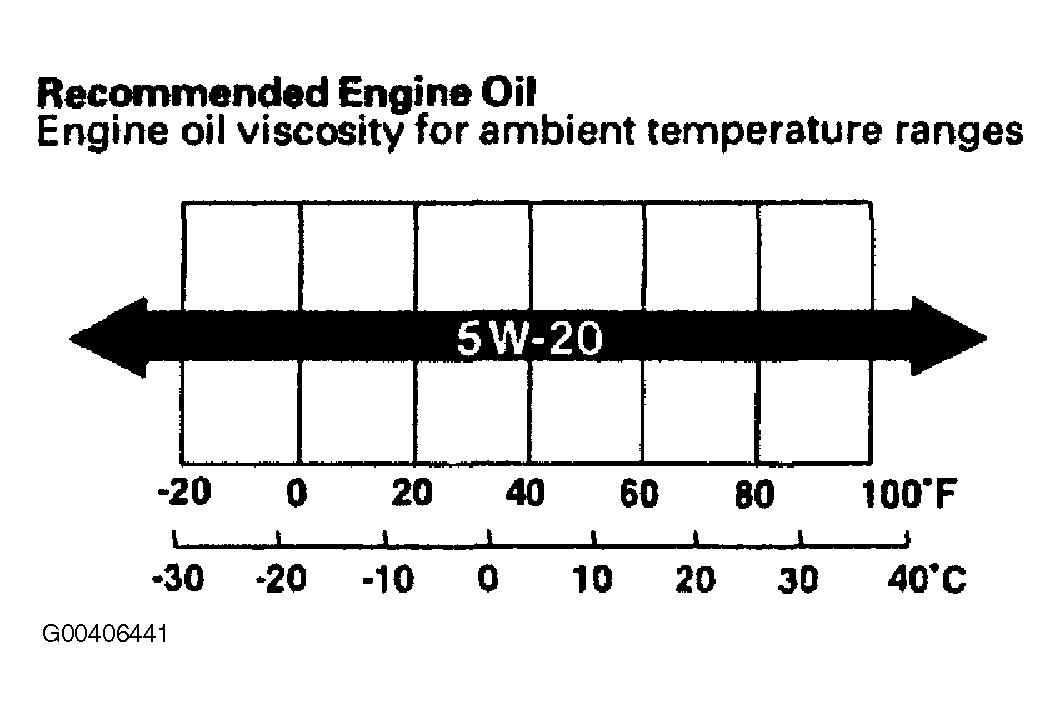

Fig 3: Identifying Recommended Engine Oil

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 4: Identifying Lubricants Points

Courtesy of AMERICAN HONDA MOTOR CO., INC.
