Rear Bank (Bank 1)

  1. Disconnect the rear secondary HO2S 4P connector (A), then remove the rear secondary HO2S (B).

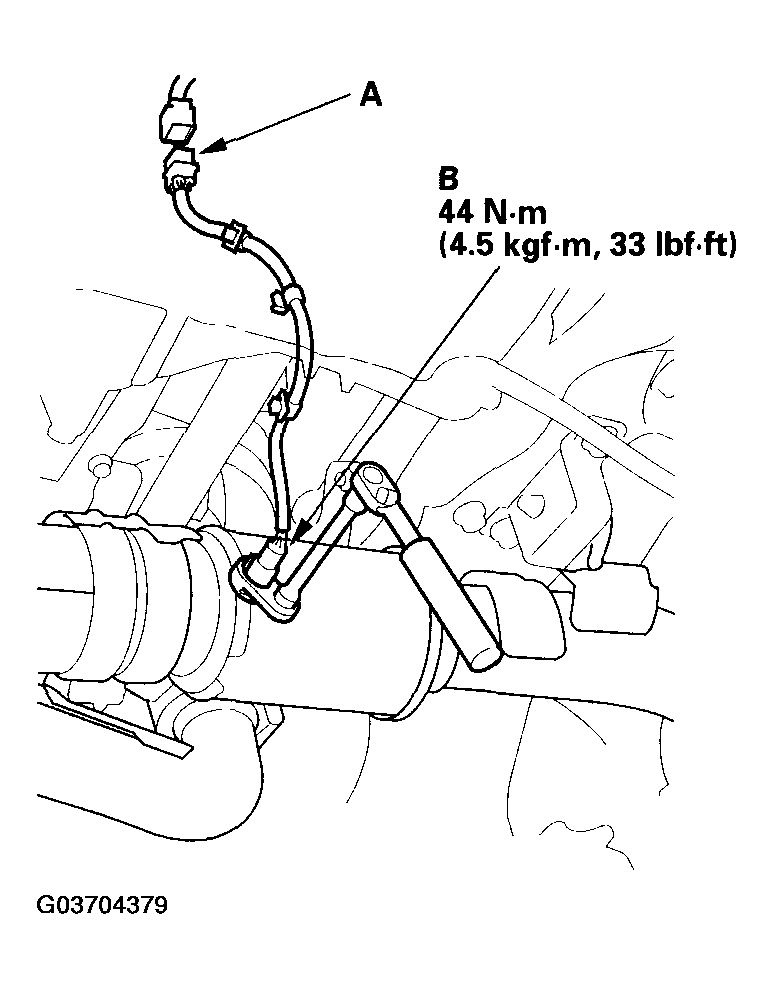

    Fig 1: Removing Rear Secondary HO2S
    G03704379Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the rear secondary HO2S in the reverse order of removal.
