Camshaft Position (CMP) Sensor

The CMP sensor input is used by the PCM to determine ignition timing at start up (cranking) and when crank angle is abnormal.

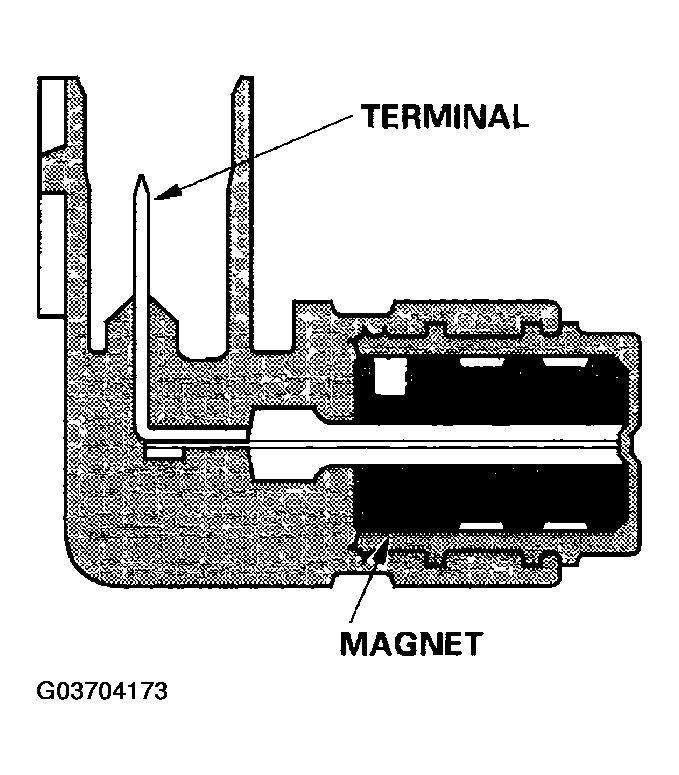

Fig 1: Identifying CMP Sensor
G03704173Courtesy of AMERICAN HONDA MOTOR CO., INC.
