PCM Inputs and Outputs at Connector B (triangle) (44P)

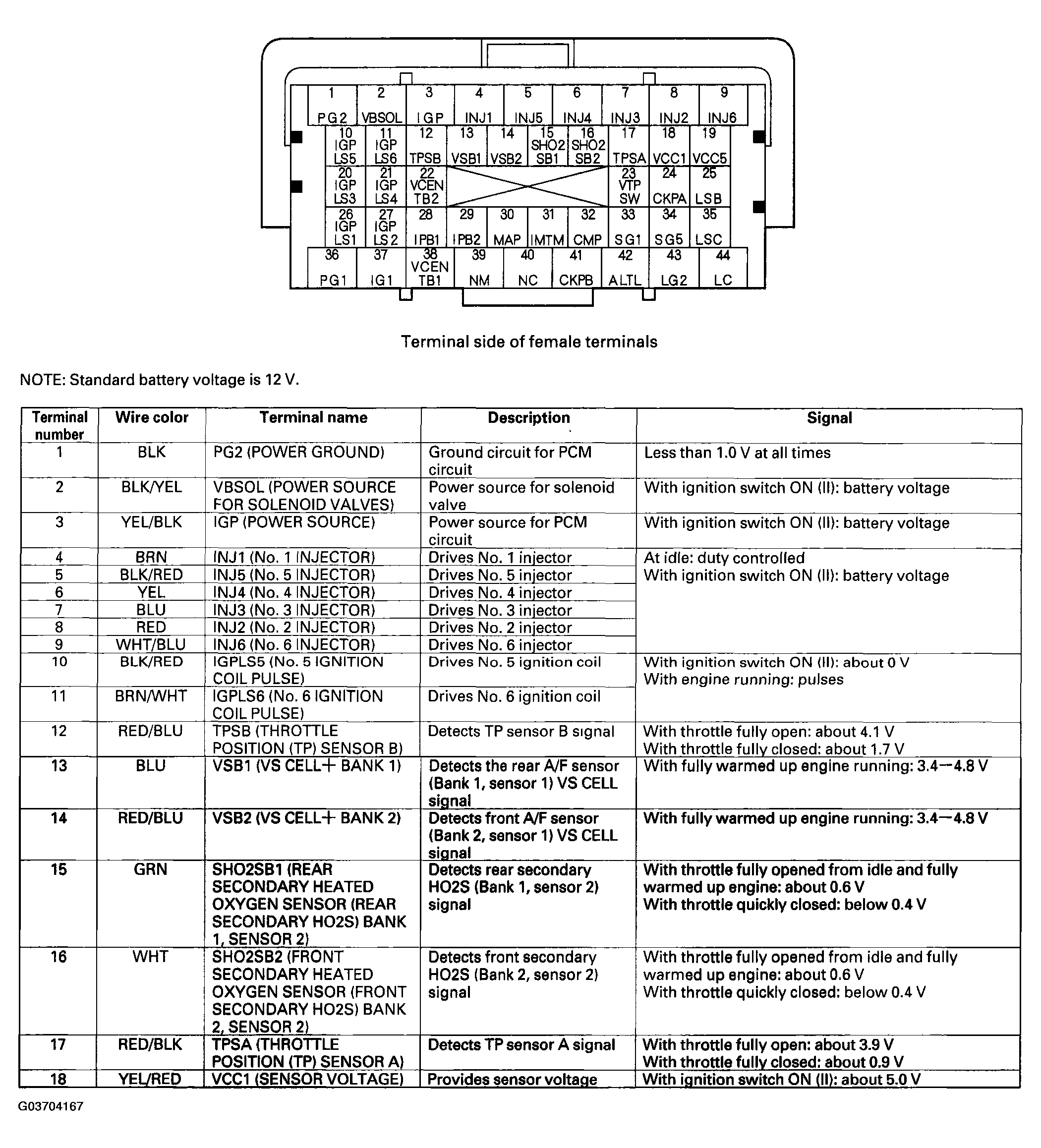

Fig 1: Identifying PCM Inputs and Outputs at Connector B (triangle) (1 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

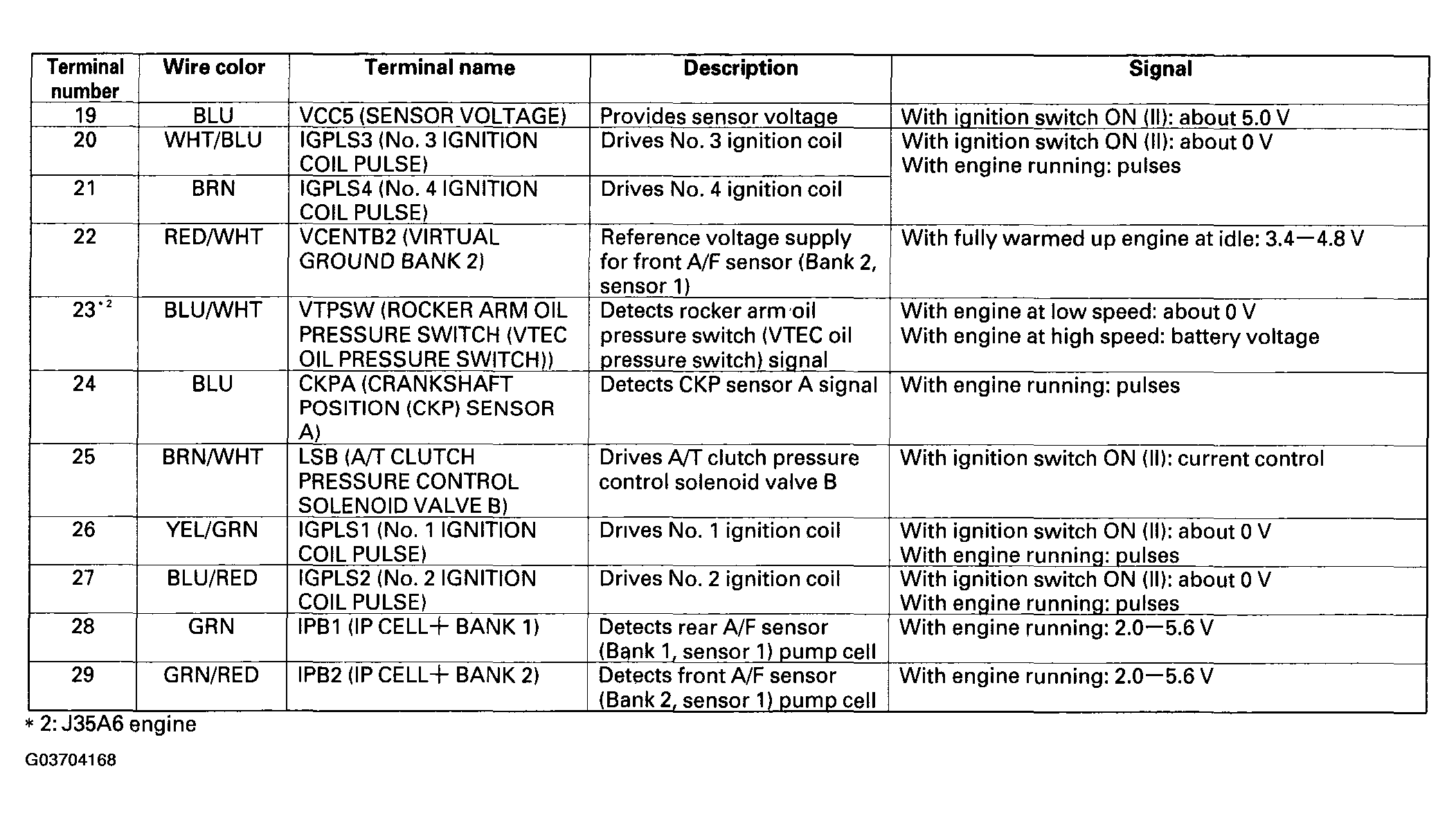

Fig 2: Identifying PCM Inputs and Outputs at Connector B (triangle) (2 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

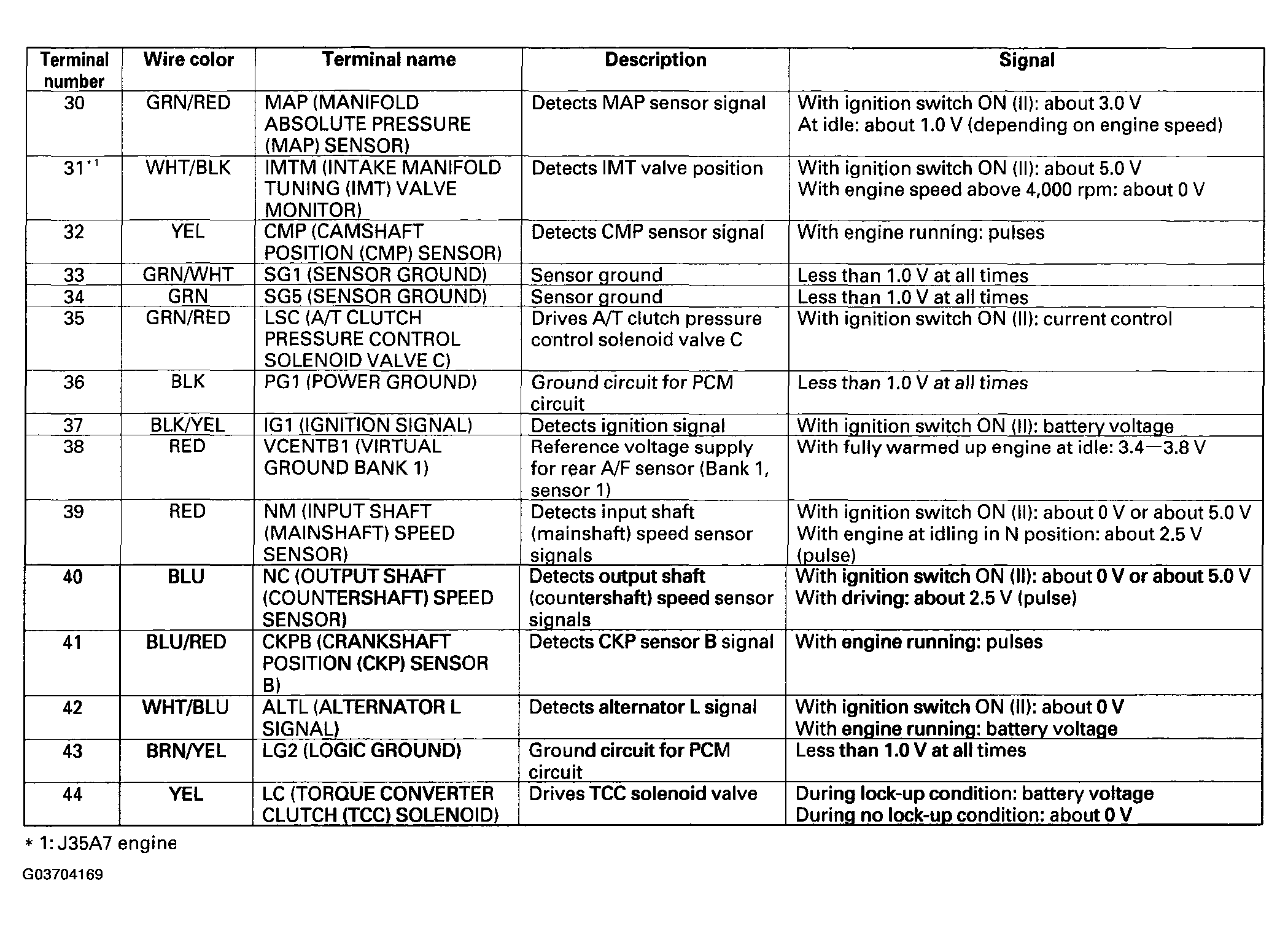

Fig 3: Identifying PCM Inputs and Outputs at Connector B (triangle) (3 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
