J35A7 Engine

  1. Remove the windshield wiper arms, and cowl cover See WIPER MOTOR REPLACEMENT ).
  2. Disconnect the rear active control engine mount (ACM) actuator connector (A).

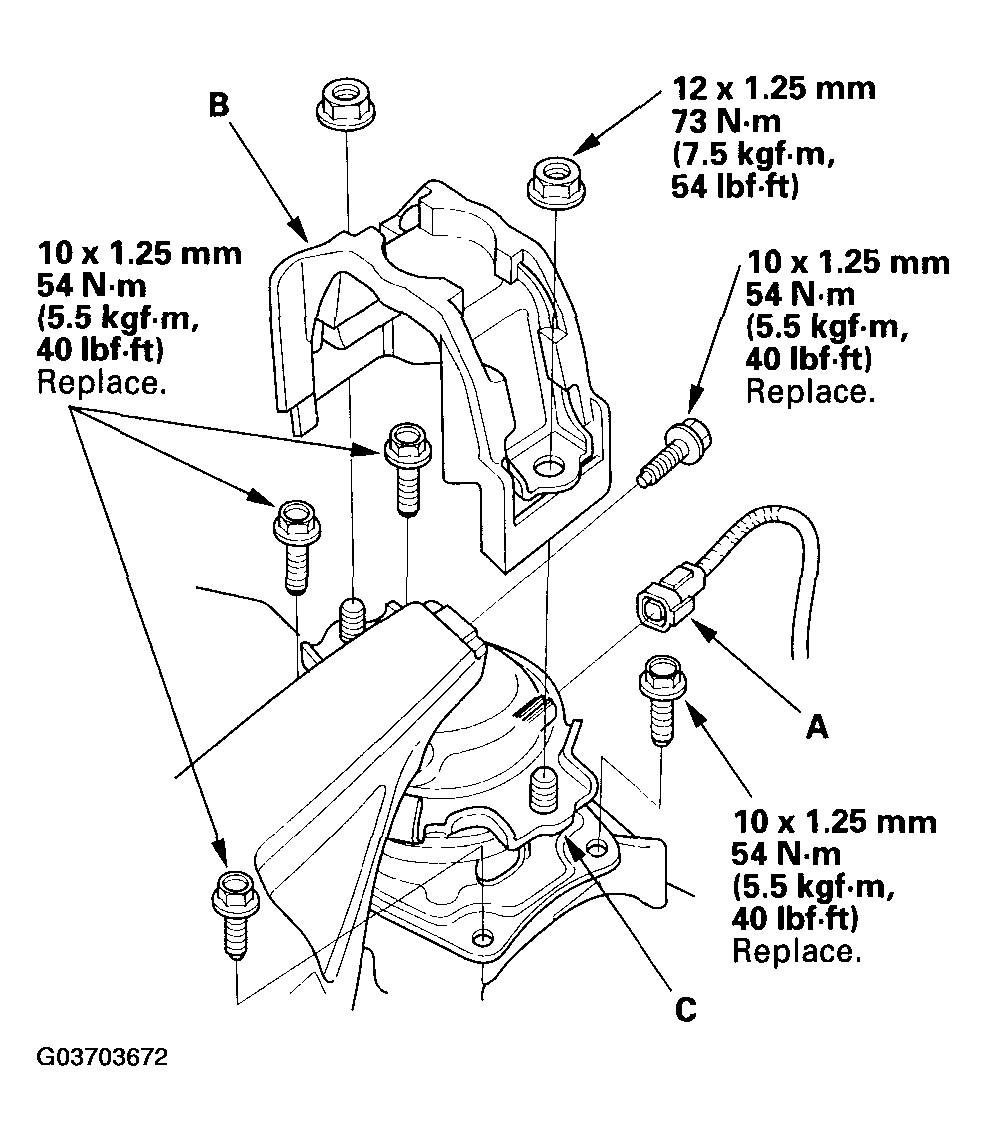

    Fig 1: Disconnecting Rear ACM Actuator Connector
    G03703672Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the rear engine mount stop (B), then remove the rear engine mount (C).
  4. Install the rear engine mount in the reverse order of removal.
