Oil Filter Feed Pipe Replacement
- Remove the oil filter (see ENGINE OIL FILTER REPLACEMENT
).

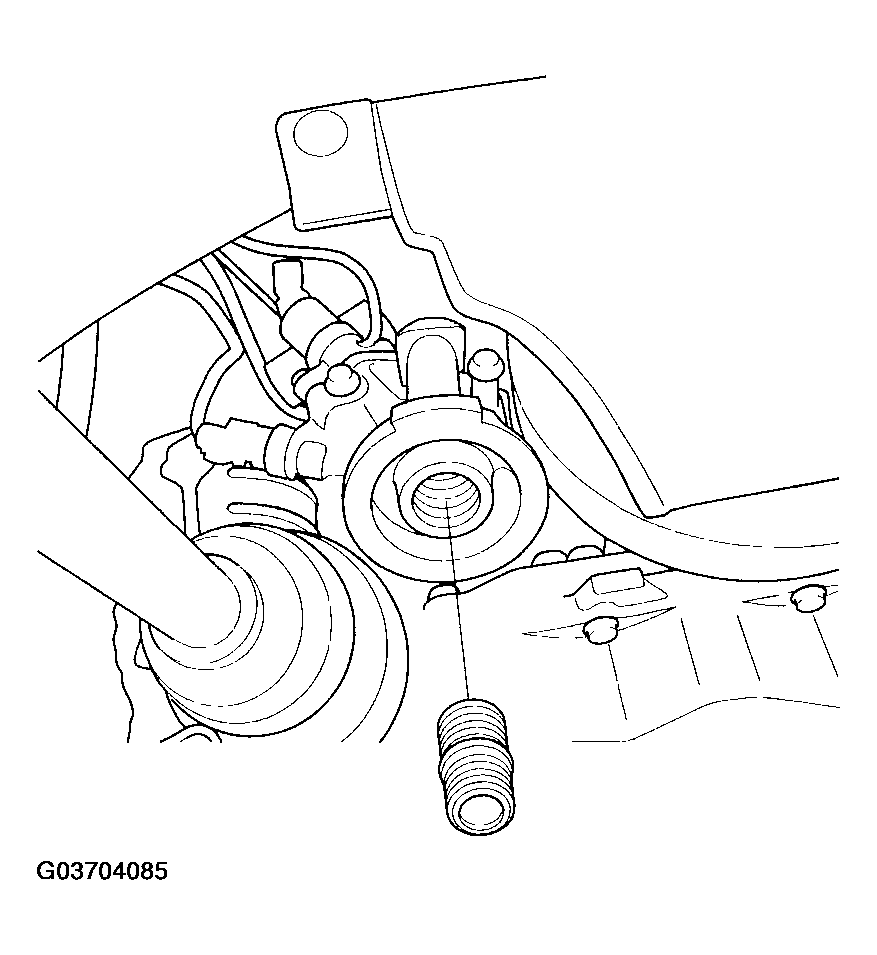

- Remove the oil filter feed pipe.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Install two 20 x 1.5 mm nuts (A) onto the new oil filter feed pipe, and hold one nut with a wrench, then tighten the other nut.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Tighten the oil filter feed pipe to 49 N-m (5.0 kgf-m, 36 lbf-ft), then remove the nuts from the oil filter feed pipe.
- Install the oil filter (see ENGINE OIL FILTER REPLACEMENT
).
