Reminder Systems, Key Light Timer, And Engine Oil Pressure Indicator Systems
>>
Circuit Diagram
Circuit Diagram

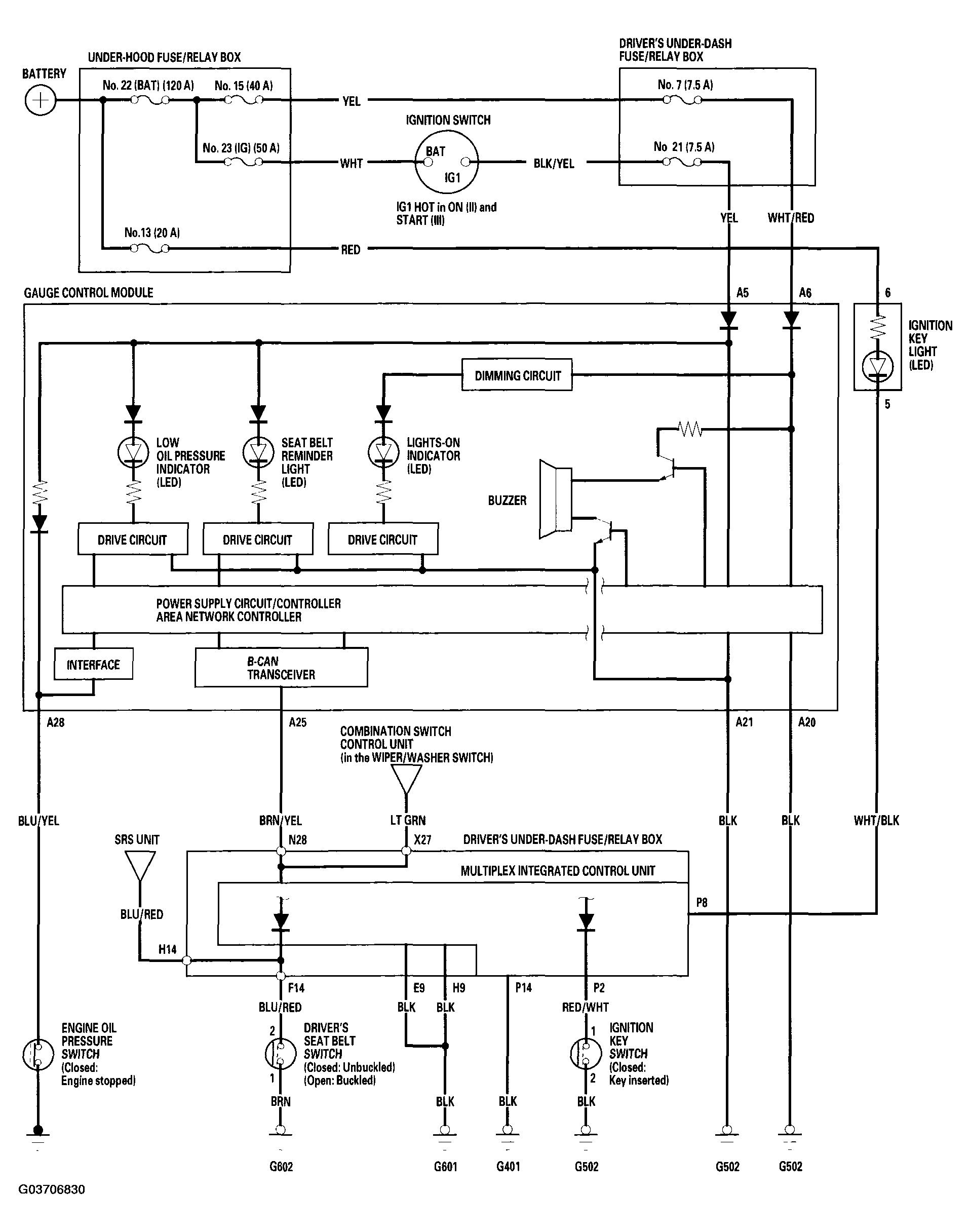

Fig 1: Reminder Systems, Key Light Timer And Engine Oil Pressure Indicator Systems Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
