J35A7 engine

  1. Insert a hexagon socket wrench into the drive belt auto-tensioner (A), and slowly turn the wrench in the direction of the rotation arrow, then remove the drive belt (B).
    NOTE: This is a hydraulic type auto-tensioner, so you must turn the wrench slowly.

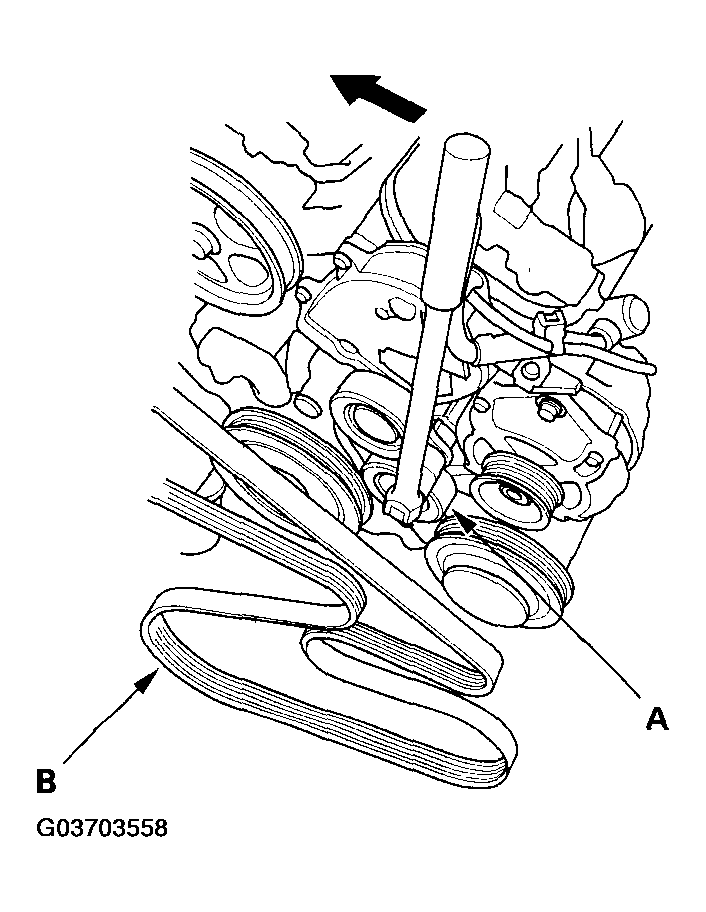

    Fig 1: Inserting Hexagon Socket Wrench Into Drive Belt Auto-Tensioner (J35A7 Engine)
    G03703558Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the new belt in the reverse order of removal.
    NOTE: For belt routing, see the charging system component location index (see COMPONENT LOCATION INDEX & DRIVE BELT ROUTING  ).
