J35A6 engine

  1. Move the auto-tensioner (A) with the belt tension release tool to relieve tension from the drive belt (B), then remove the drive belt.

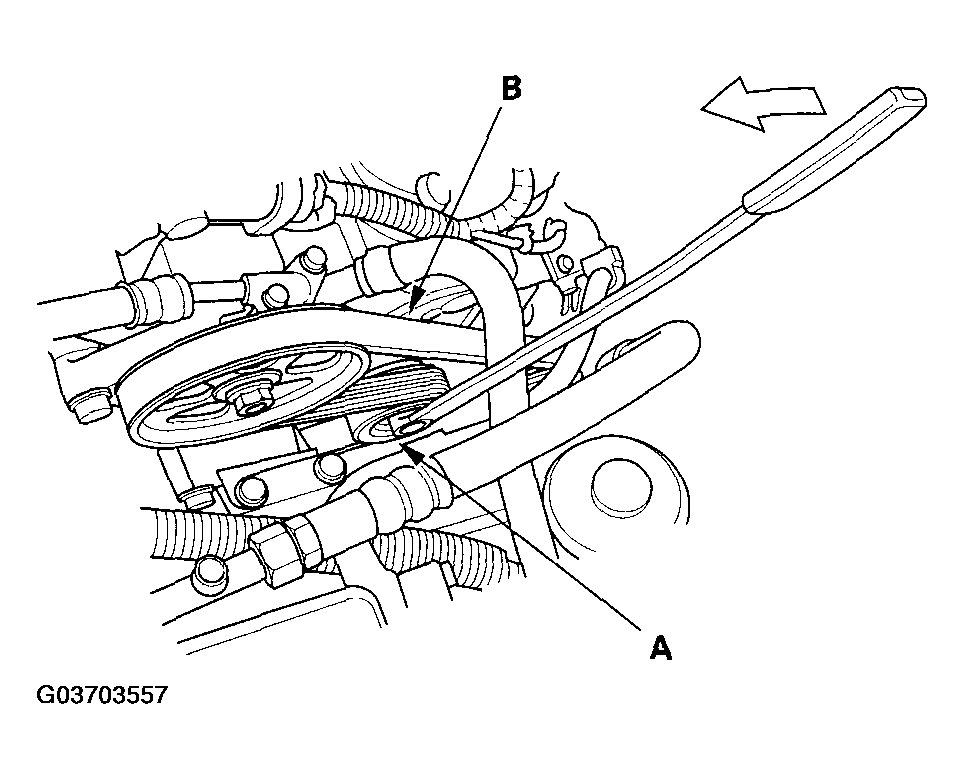

    Fig 1: Moving Auto-Tensioner With Belt Tensioner Release Tool To Relieve Tension From Drive Belt (J35A6 Engine)
    G03703557Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the new belt in the reverse order of removal.
    NOTE: For belt routing, see the charging system component location index (see COMPONENT LOCATION INDEX & DRIVE BELT ROUTING  ).
