Drive Belt Auto-Tensioner Replacement

  1. Remove the drive belt (see DRIVE BELT REPLACEMENT  ).
  2. Remove the auto-tensioner.

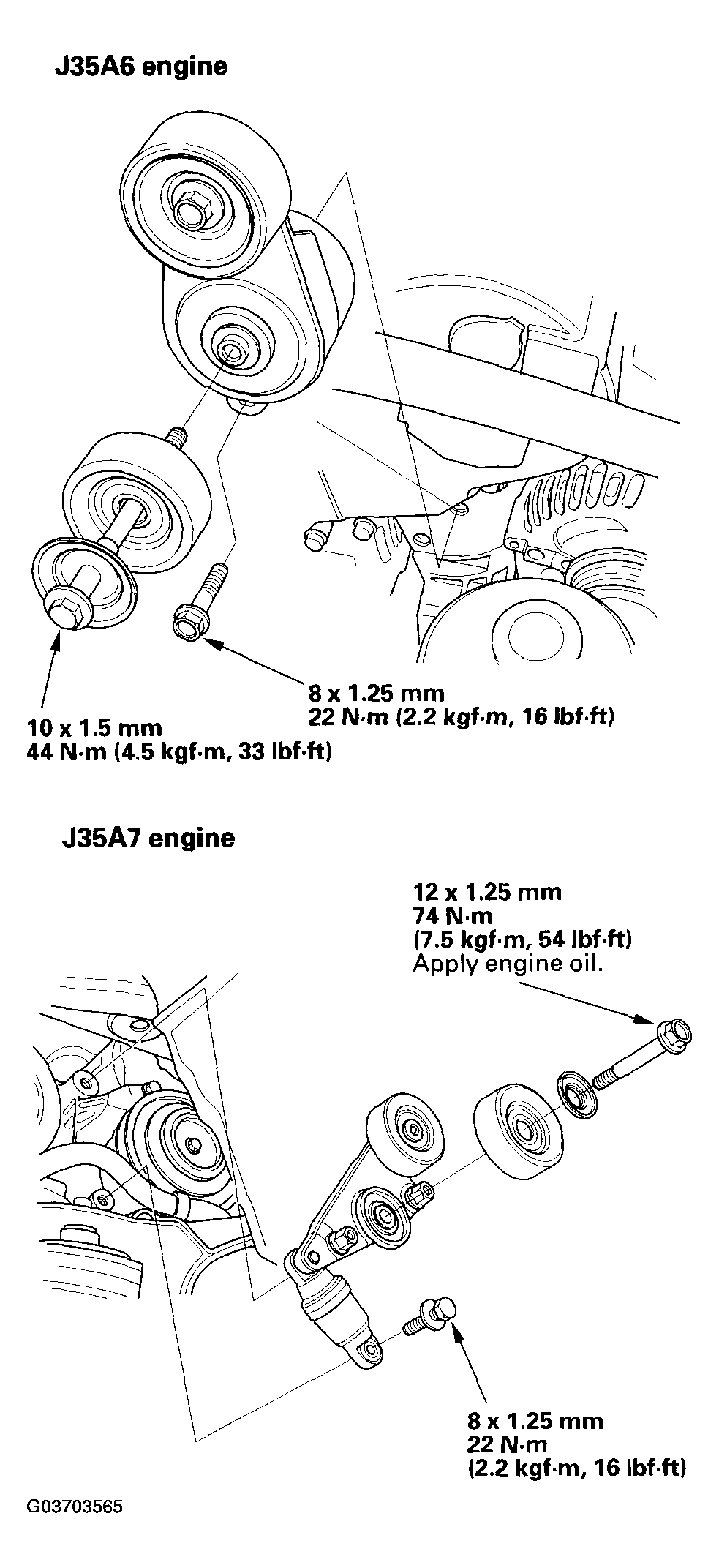

    Fig 1: Removing Auto-Tensioner
    G03703565Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the auto-tensioner in the reverse order of removal.
