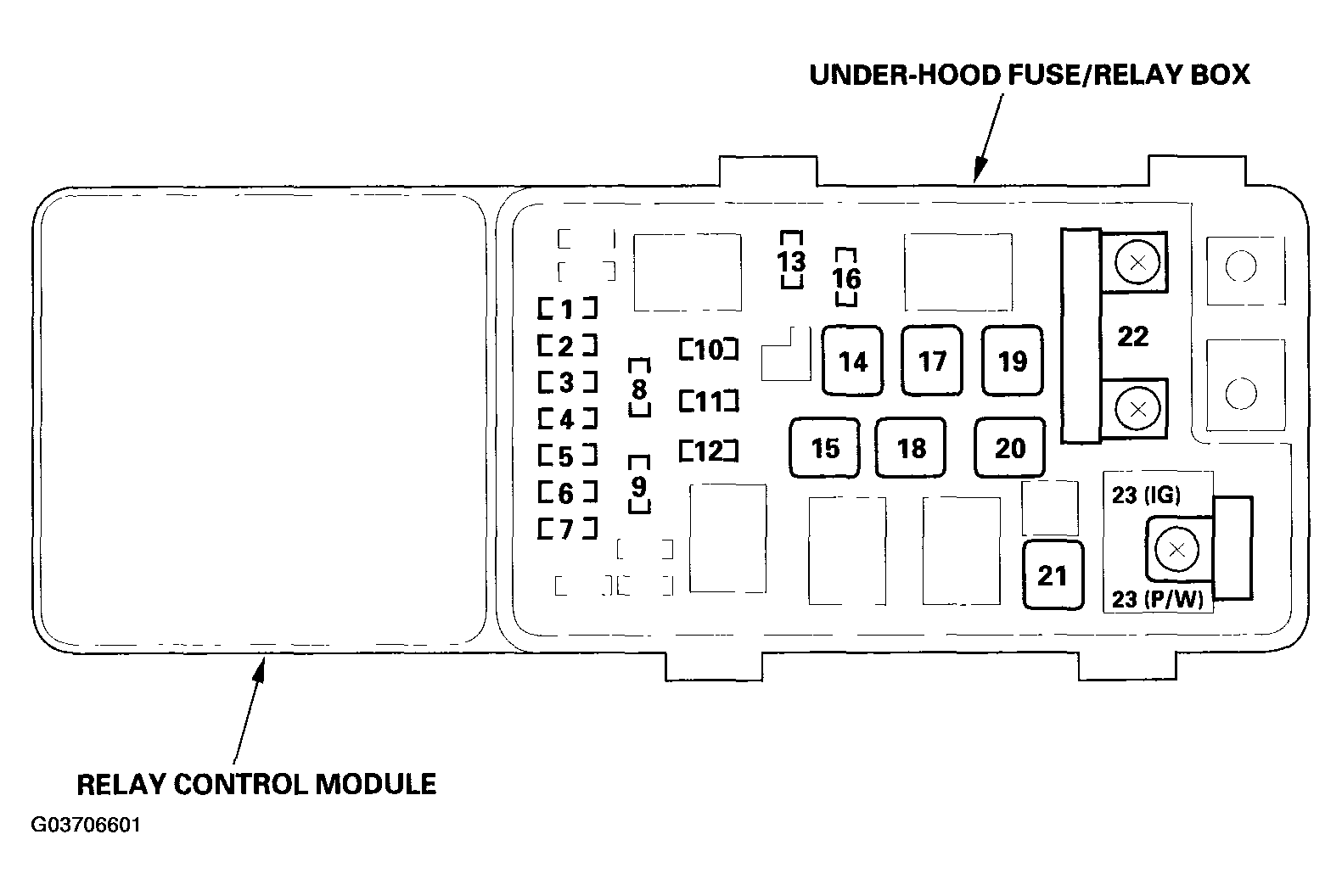

| 1 |
10 A |
RED/YEL |
Left headlight (low beam) |
| 2 |
30 A |
Internal connection |
Control block |
| 3 |
10 A |
WHT/RED |
Left headlight (high beam) |
| 4 |
15 A |
RED/BLK |
Ambient light, Left front parking light, Right front parking light, Left taillight, Left license plate light, Right taillight, Right license plate light, Driving position memory switch, Power mirror switch light, Rear A/C control panel, Optional connector (fuse/relay box socket), No. 7 fuse (in the passenger's under-dash fuse/relay box). Trailer lighting connector (YOP) |
| Internal connection |
Control block |
| Internal connection |
Relay control module |
| 5 |
10 A |
WHT/GRN |
Right headlight (high beam) |
| 6 |
10 A |
RED/GRN |
Right headlight (low beam) |
| 7 |
7.5 A |
Internal connection |
Control block |
| 8 |
15 A |
RED |
Data link connector (DLC), PCM, PGM-FI main relay 1, PGM-FI main relay 2, CMP sensor, CKP sensor A/B, Injectors, No. 23 fuse |
| 9 |
30 A |
BLU/YEL |
A/C condenser fan motor |
| 10 |
- |
- |
Not used |
| 11 |
30 A |
BLU/BLK |
Fan control relay, Radiator fan motor |
| 12 |
7.5 A |
BLU/RED |
A/C compressor clutch |
| 13 |
20 A |
RED |
Ignition key switch, Brake pedal position switch |
| BLU/RED |
Low horn, High horn |
| Internal connection |
Control block |
| 14 |
30 A |
BLK/YEL |
MICU-rear junction box, Rear window defogger |
| 15 |
40 A |
YEL |
No. 5, 6, 7, 8, and 9 fuses in the driver's under-dash fuse/relay box |
| Internal connection |
No. 7 fuse in the under-hood fuse/relay box |
| 16 |
15 A |
WHT/BLK |
Turn signal/hazard relay, Hazard warning switch and passenger's airbag cutoff indicator, Trailer lighting connector (YOP) |
| 17 |
30 A |
WHT/RED |
VSA modulator-control unit |
| 18 |
30 A |
WHT/RED |
VSA modulator-control unit |
| 19 |
30 A |
GRN/WHT |
No. 1, 2, 3, and 4 fuses in the driver's under-dash fuse/relay box |
| 20 |
40 A |
BLU |
No. 12, 13, 14, 15, 16, and 17 fuses in the driver's under-dash fuse/relay box |
| 21 |
40 A |
WHT/BLU |
Blower motor |
| 22 |
120 A (BAT) |
Internal connection |
No. 1, 3, 4, 5, 6, 8, 9, 10, 11, 12, 14, 15, 19, 20, 21, and 22 fuses in the under-hood fuse/relay box, Alternator |
| 70 A (AS F/B) |
BLK/WHT |
No. 1, 2, 3, 4, 5, 6, 8, and 9 fuses in the passenger's under-dash fuse/relay box |
| 23 |
50 A (IG) |
WHT |
Ignition switch |
| 50 A
(P/W) |
WHT/BLU |
No. 27 and 28 fuses in the driver's under-dash fuse/relay box, Power window relay |
| 40 A
(P/W) |
