Component Location Index

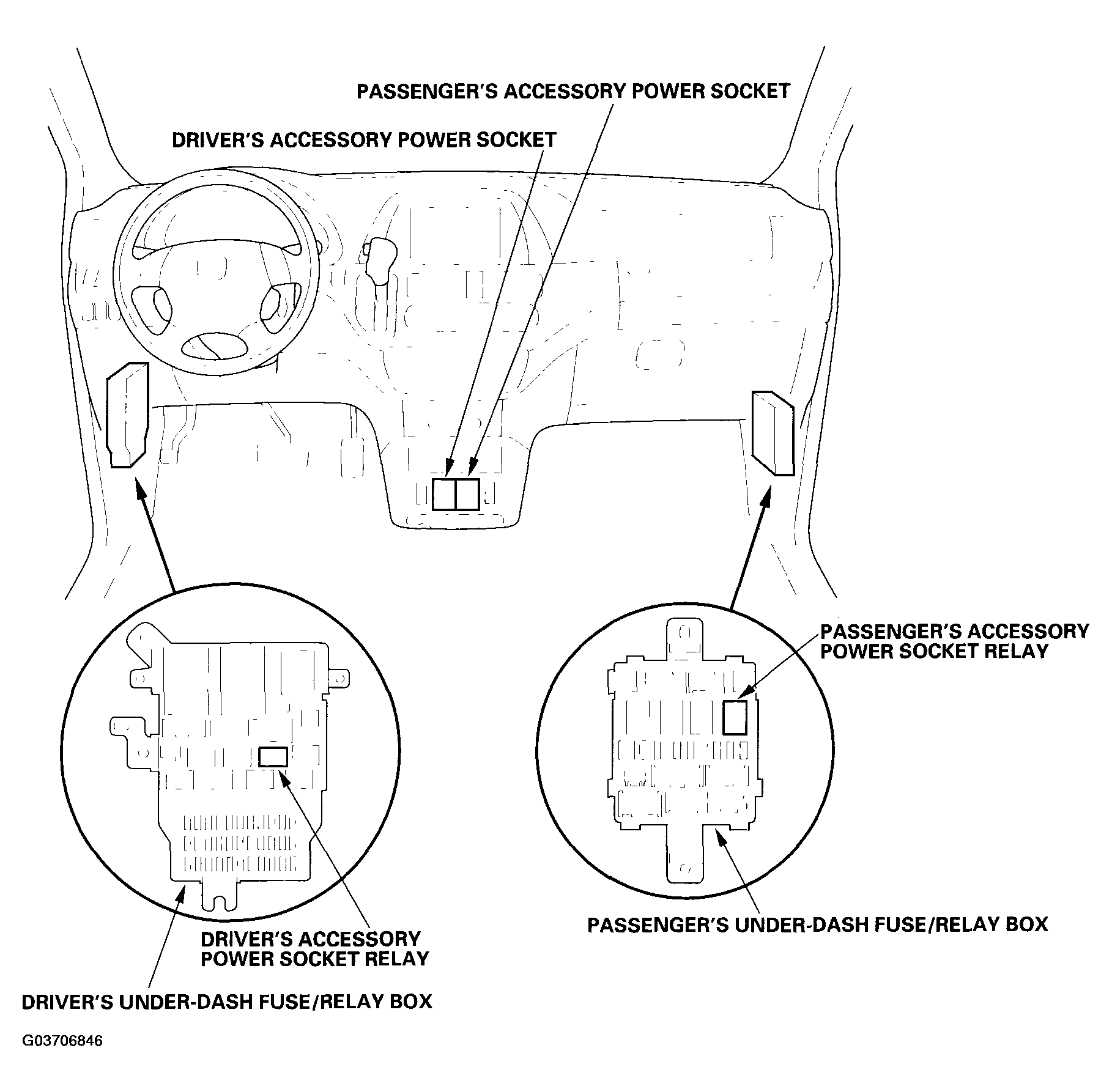

Fig 1: Locating Accessory Power Sockets Components (1 Of 2)
G03706846Courtesy of AMERICAN HONDA MOTOR CO., INC.

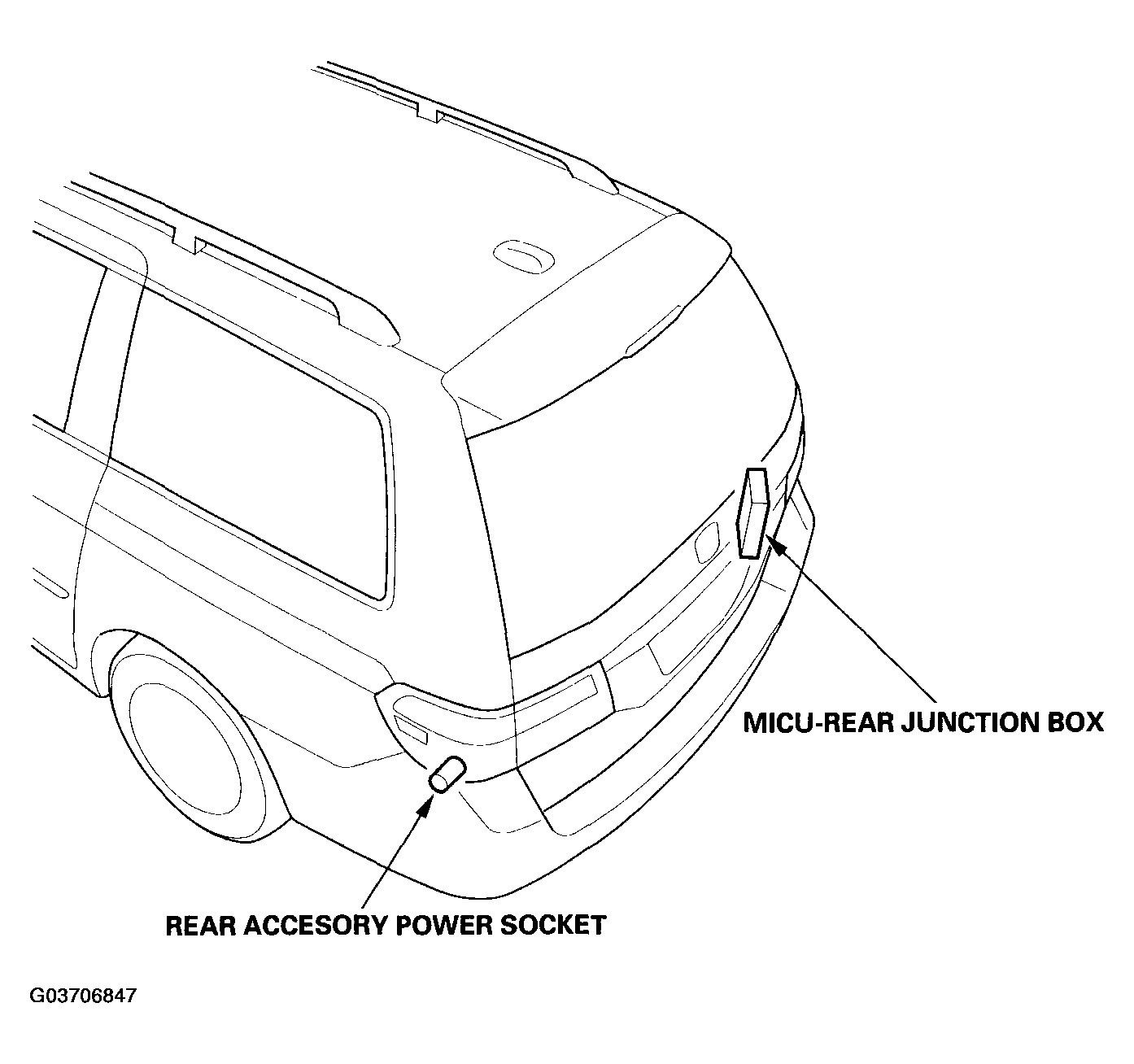

Fig 2: Locating Accessory Power Sockets Components (2 Of 2)
G03706847Courtesy of AMERICAN HONDA MOTOR CO., INC.
