Wheel Sensor Replacement
NOTE:
Install the sensor carefully to avoid twisting the wires.

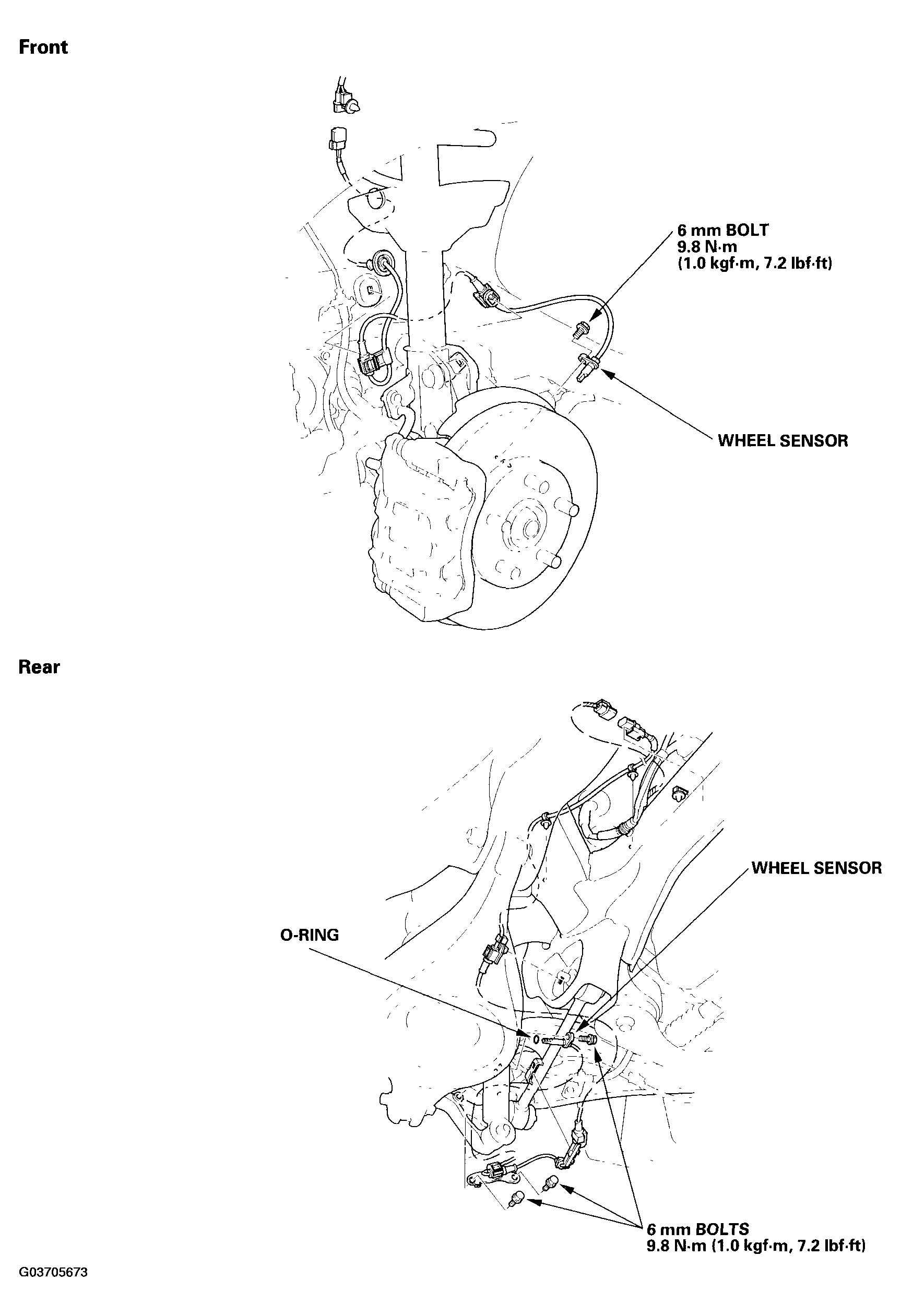

Fig 1: Replacing Wheel Sensor
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
