Component Location Index

NOTE: For the Driving Position Memory System (DPMS), refer to COMPONENT LOCATION INDEX .

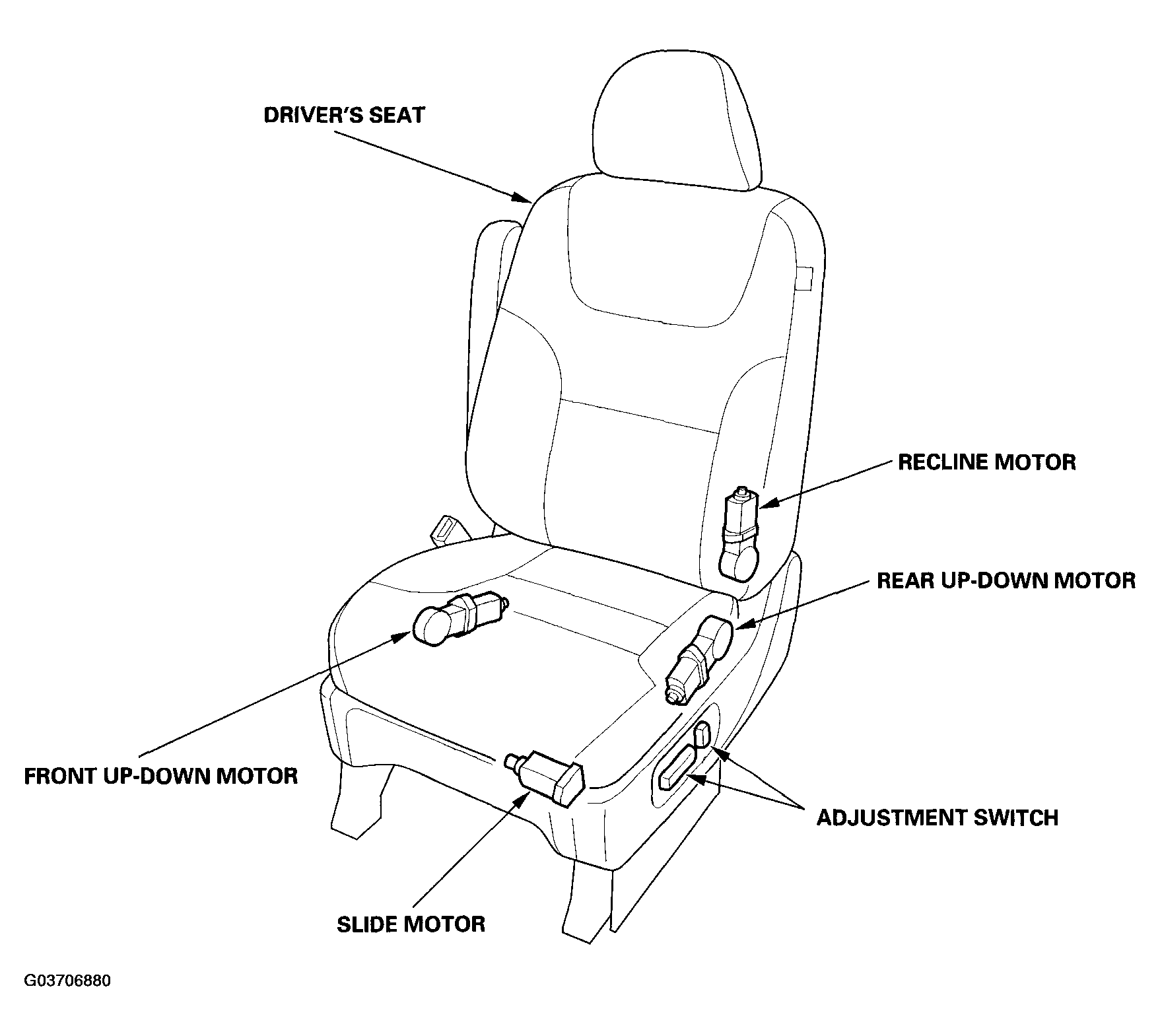

Fig 1: Locating Power Seats Components

G03706880

Courtesy of AMERICAN HONDA MOTOR CO., INC.
